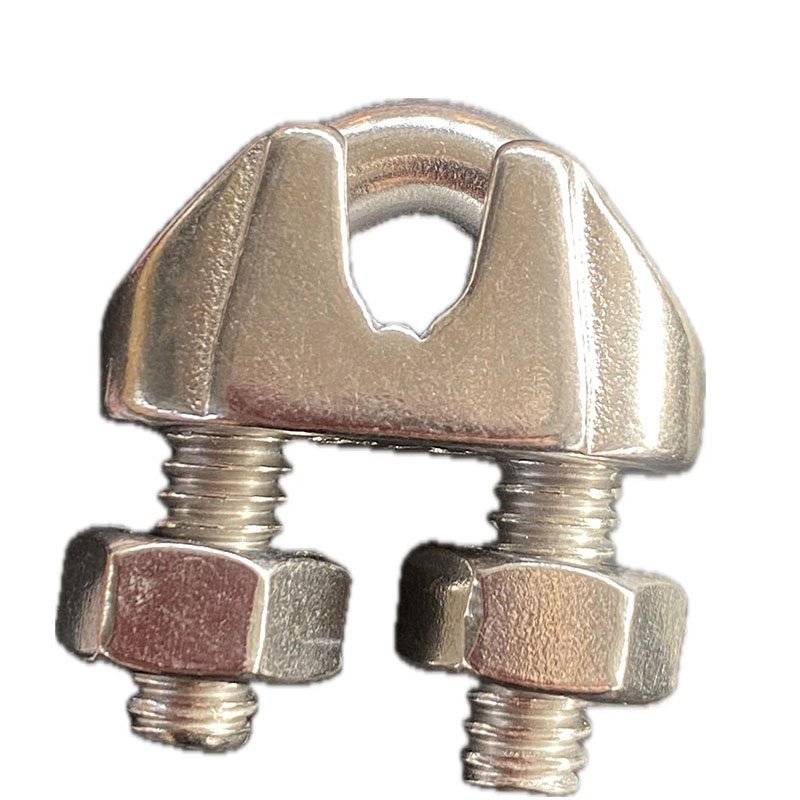

The Stainless Steel Clip fastens a wire rope end using the clip configuration shown below. Compare the rope diameter, saddle and fastener dimensions when selecting the model.
The Stainless Steel Clip fastens a wire rope end using the clip configuration shown below. Compare the rope diameter, saddle and fastener dimensions when selecting the model.
![]()
![]()
| (ΦS) | A | C | H | L |
| mm | mm | mm | mm | mm |
| 2 | M3 | 17 | 9.5 | 21 |
| 3 | M4 | 21 | 10 | 21 |
| 4 | M4 | 21 | 10 | 23.5 |
| 5 | M5 | 23 | 10 | 26 |
| 6 | M6 | 25 | 11 | 29 |
| 8 | M6 | 29 | 14 | 33 |
| 10 | M8 | 33 | 16.5 | 43 |
| 12 | M10 | 40 | 18 | 50 |
| 16 | M12 | 49 | 25 | 65 |
| 18 | M12 | 52 | 30 | 77 |
| 20 | M12 | 52 | 30 | 77 |
| 22 | M12 | 60 | 34 | 88 |
| 24 | M12 | 67 | 34 | 86 |
Wire rope end fixing in the service specified for the selected model.
To request Stainless Steel Clip, please specify rope diameter, clip size, material and installation requirements. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
We ordered these stainless steel clips for our coastal rigging projects. Good stainless steel build, no rust issues under humid salt‑spray environment. Clamping force is stable, fits the corresponding wire rope sizes well. Reliable fastening hardware for our site work
