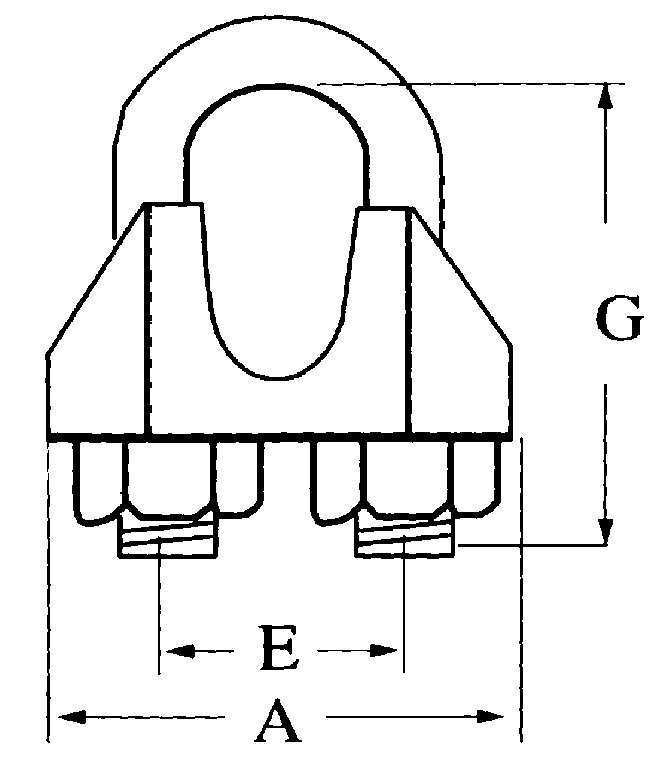

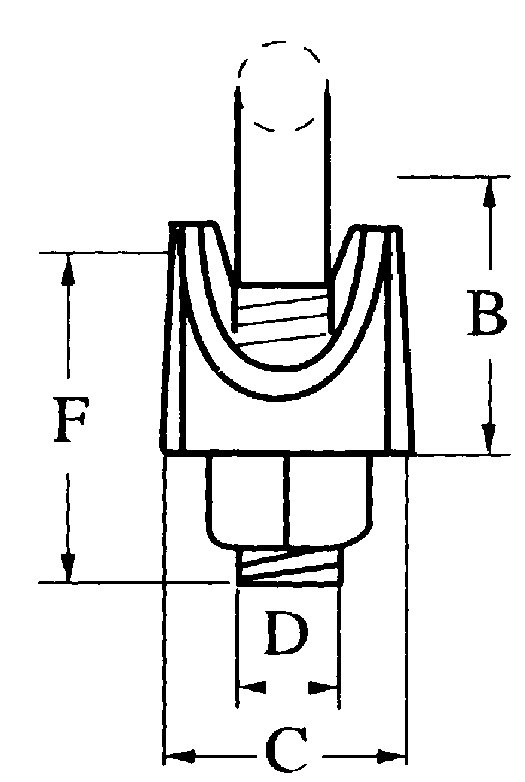

The DIN 741 Malleable Wire Rope Clip fastens a wire rope end using the clip configuration shown below. Compare the rope diameter, saddle and fastener dimensions when selecting the model. For static wire rope fixing only. Not for lifting operations.
The DIN 741 Malleable Wire Rope Clip fastens a wire rope end using the clip configuration shown below. Compare the rope diameter, saddle and fastener dimensions when selecting the model.
![]()
![]()
![]()
| SIZE (MM) | Dimensions(mm) | WEIGHT PER (G.) | ||||||
| A | B | C | D | E | F | G | ||
| 3 | 21 | 10 | 10 | 4 | 9 | 12 | 16.6 | 8 |
| 5 | 23 | 10 | 11 | 5 | 11 | 13 | 19.65 | 12 |
| 6.5 | 26 | 11 | 12 | 5 | 13 | 15 | 23.65 | 15 |
| 8 | 30 | 15 | 14 | 6 | 16 | 19 | 28.85 | 25 |
| 10 | 34 | 17 | 18 | 8 | 19 | 22 | 35 | 54 |
| 11 | 36 | 18 | 19 | 8 | 20 | 22 | 37 | 105 |
| 13 | 40 | 21 | 23 | 10 | 24 | 30 | 46.24 | 108 |
| 14 | 44 | 22 | 23 | 10 | 25 | 30 | 48.24 | 108 |
| 16 | 50 | 26 | 26 | 12 | 29 | 33 | 52.5 | 170 |
| 19 | 54 | 30 | 29 | 12 | 32 | 38 | 64.5 | 215 |
| 22 | 61 | 34 | 33 | 14 | 37 | 44 | 72.5 | 330 |
| 26 | 65 | 37 | 35 | 14 | 41 | 45 | 82.5 | 390 |
| 30 | 74 | 43 | 37 | 16 | 48 | 50 | 95.6 | 570 |
| 34 | 80 | 50 | 42 | 16 | 52 | 55 | 105.6 | 650 |
| 40 | 88 | 55 | 45 | 16 | 58 | 60 | 125.6 | 820 |

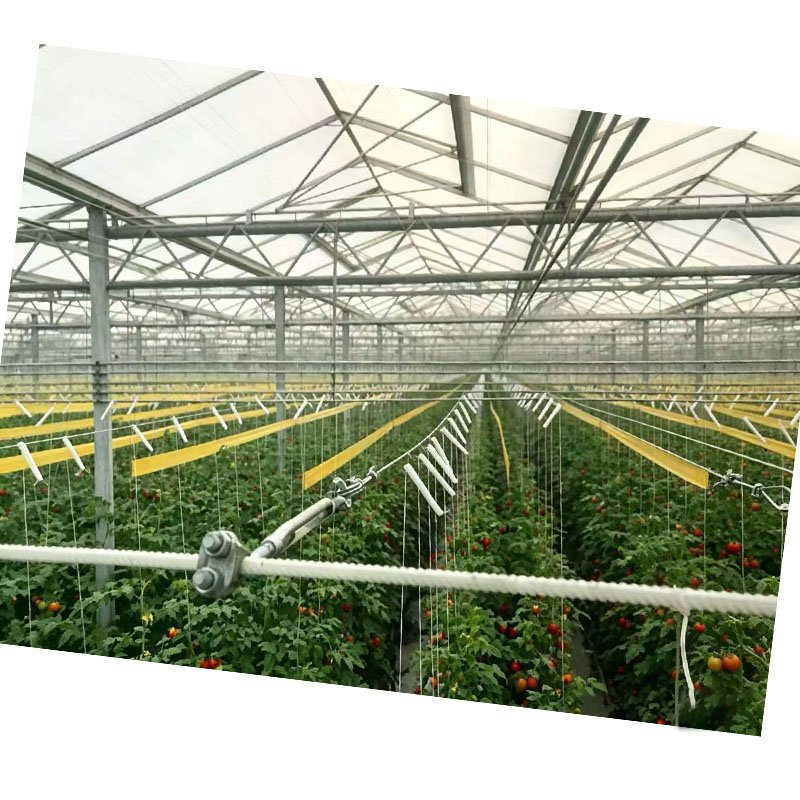

Wire rope end fixing in the service specified for the selected model.
Use limitation: For static wire rope fixing only. Not for lifting operations.
To request DIN 741 Malleable Wire Rope Clip, please specify rope diameter, clip size, material and installation requirements. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
