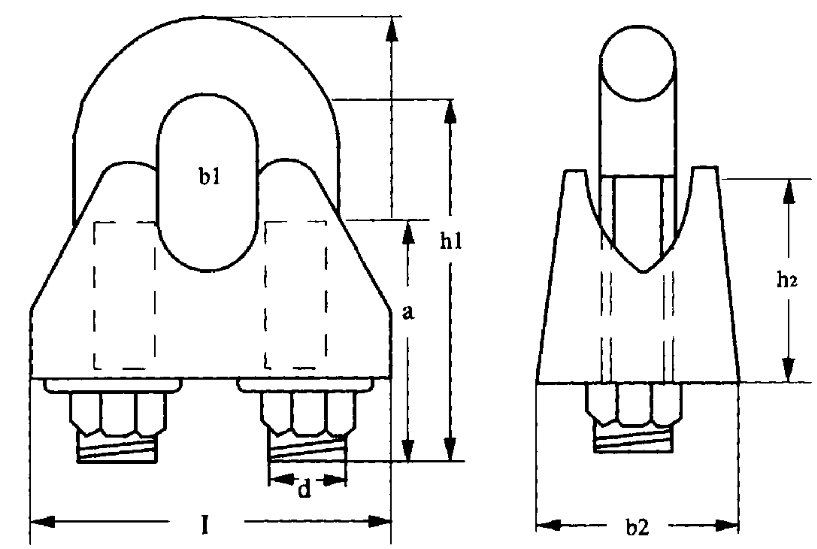

The DIN 1142 Malleable Wire Rope Clip fastens a wire rope end using the clip configuration shown below. Compare the rope diameter, saddle and fastener dimensions when selecting the model. For static wire rope fixing only. Not for lifting rigging.
The DIN 1142 Malleable Wire Rope Clip fastens a wire rope end using the clip configuration shown below. Compare the rope diameter, saddle and fastener dimensions when selecting the model.
![]()
![]()
| SIZE (MM) | DIMENSIONS(MM) | WEIGHT PER (G.) | ||||||
| a | b1 | b2 | d | h1 | h2 | I | ||
| 5 | 13 | 7 | 13 | 5 | 25 | 13 | 25 | 22 |
| 6.5 | 17 | 8 | 16 | 6 | 32 | 14 | 30 | 35 |
| 8 | 20 | 10 | 20 | 8 | 41 | 18 | 39 | 80 |
| 10 | 24 | 12 | 20 | 8 | 46 | 21 | 40 | 85 |
| 13 | 30 | 15 | 28 | 12 | 64 | 29 | 55 | 240 |
| 16 | 35 | 18 | 32 | 14 | 76 | 35 | 64 | 390 |
| 19 | 36 | 22 | 32 | 14 | 83 | 40 | 68 | 460 |
| 22 | 40 | 24 | 34 | 16 | 96 | 44 | 74 | 630 |
| 26 | 50 | 26 | 38 | 20 | 111 | 51 | 84 | 1100 |
| 30 | 55 | 34 | 41 | 20 | 127 | 59 | 95 | 1360 |
| 34 | 60 | 38 | 45 | 22 | 141 | 67 | 105 | 1850 |
| 40 | 65 | 44 | 49 | 24 | 159 | 77 | 117 | 2450 |
Wire rope end fixing in the service specified for the selected model.
Use limitation: For static wire rope fixing only. Not for lifting rigging.
To request DIN 1142 Malleable Wire Rope Clip, please specify rope diameter, clip size, material and installation requirements. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
We purchased DIN 1142 malleable wire rope clips for our construction projects. Manufactured to DIN 1142 standard. Malleable steel offers stable clamping force. Galvanized surface performs reliably under outdoor site conditions. Trustworthy fastener for wire‑rope connections.
