The US TYPE BOW SHACKLE G209 connects compatible ropes, chains and fittings through its removable pin. The screw pin can be removed to connect compatible components.
The US TYPE BOW SHACKLE G209 connects compatible ropes, chains and fittings through its removable pin. The screw pin can be removed to connect compatible components.
| Item No. | Nominal Size(IN.) | WLL | Weight | Dimensions(mm) | ||||
| P | TON | KG | A | B | C | E | F | |
| XS2090005 | 3/16" | 1/3 | 0.03 | 9.65 | 6.35 | 22.4 | 15.2 | 14.2 |
| XS2090006 | 1/4" | 1/2 | 0.05 | 11.9 | 7.85 | 28.7 | 19.8 | 15.5 |
| XS2090008 | 5/16" | 3/4 | 0.09 | 13.5 | 9.65 | 31 | 21.3 | 19.1 |
| XS2090010 | 3/8" | 1 | 0.14 | 16.8 | 11.2 | 36.6 | 26.2 | 23.1 |
| XS2090011 | 7/16" | 1-1/2 | 0.17 | 19.1 | 12.7 | 42.9 | 29.5 | 26.9 |
| XS2090013 | 1/2" | 2 | 0.33 | 20.6 | 16 | 47.8 | 33.3 | 30.2 |
| XS2090016 | 5/8" | 3-1/4 | 0.62 | 26.9 | 19.1 | 60.5 | 42.9 | 38.1 |
| XS2090019 | 3/4" | 4-3/4 | 1.07 | 31.8 | 22.4 | 71.5 | 51 | 46 |
| XS2090022 | 7/8" | 6-1/2 | 1.64 | 36.6 | 25.4 | 84 | 58 | 53 |
| XS2090025 | 1" | 8-1/2 | 2.28 | 42.9 | 28.7 | 95.5 | 68.5 | 60.5 |
| XS2090028 | 1-1/8" | 9-1/2 | 3.36 | 46 | 31.8 | 108 | 74 | 68.5 |
| XS2090032 | 1-1/4" | 12 | 4.31 | 51.5 | 35.1 | 119 | 92.5 | 76 |
| XS2090035 | 1-3/8" | 13-1/2 | 6.14 | 57 | 38.1 | 133 | 92 | 84 |
| XS2090038 | 1-1/2" | 17 | 7.8 | 60.5 | 41.4 | 146 | 98.5 | 92 |
| XS2090045 | 1-3/4" | 25 | 12.6 | 73 | 51 | 178 | 127 | 106 |
| XS2090050 | 2" | 35 | 20.4 | 82.5 | 57 | 197 | 146 | 122 |
| XS2090064 | 2-1/2" | 55 | 38.9 | 105 | 70 | 267 | 184 | 145 |

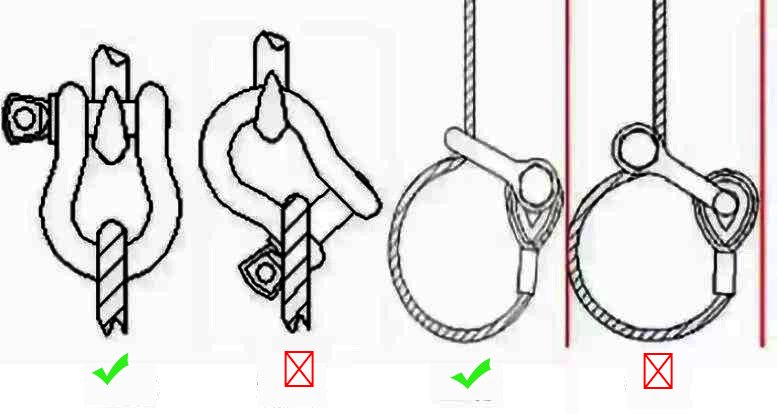

Connection assemblies selected to the model rating and loading arrangement.
To request US TYPE BOW SHACKLE G209, please specify body opening, pin diameter, required rated capacity and surface finish. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
Authentic US Type G209 Bow Shackles — Solid Build, Reliable Performance
