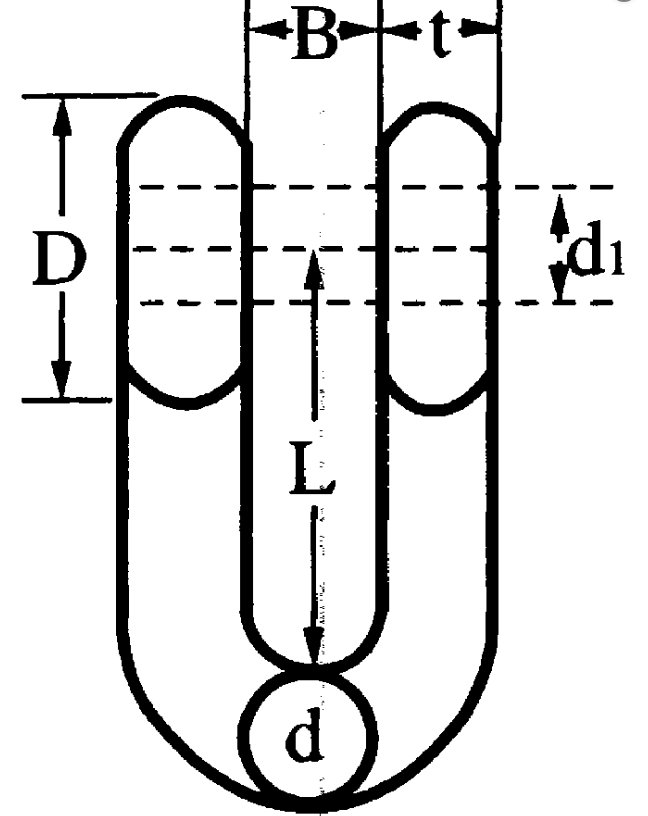

| Nominal size | B | D | L | d1 | WLL | WEIGHT EACH(KG) | |
| mm | in | mm | mm | mm | mm | Ton | |
| 4.8 | 3/16 | 10.00 | 10.00 | 18.50 | 5.00 | 0.09 | 0.014 |
| 6 | 1/4 | 12.00 | 11.00 | 25.00 | 6.50 | 0.15 | 0.028 |
| 8 | 5/16 | 14.00 | 15.00 | 31.00 | 8.50 | 0.25 | 0.049 |
| 9 | 3/8 | 18.00 | 17.00 | 36.00 | 10.00 | 0.40 | 0.049 |
| 12 | 1/2 | 24.00 | 23.00 | 46.00 | 13.00 | 0.60 | 0.18 |
| 16 | 5/8 | 30.00 | 32.00 | 59.00 | 17.00 | 1.10 | 0.42 |
| 19 | 3/4 | 36.00 | 37.00 | 74.00 | 20.00 | 1.60 | 0.72 |
| 22 | 7/8 | 43.00 | 43.00 | 86.00 | 23.00 | 2.50 | 1.18 |
| 25 | 1 | 47.00 | 50.00 | 95.00 | 27.00 | 3.00 | 1.8 |
| 28 | 1-1/8 | 55.00 | 56.00 | 110.00 | 30.00 | 3.50 | 2.5 |
| 32 | 1-1/4 | 64.00 | 64.00 | 130.00 | 34.00 | 4.50 | 3.7 |
| 38 | 1-1/2 | 76.00 | 76.00 | 145.00 | 40.00 | 6.00 | 6.1 |
| 44 | 1-3/4 | 80.00 | 90.00 | 160.00 | 47.00 | 8.50 | - |
| 50 | 2 | 90.00 | 100.00 | 185.00 | 53.00 | 10.00 | - |
| 65 | 2-1/2 | 110.00 | 130.00 | 240.00 | 68.00 | 18.00 | - |
| 75 | 3 | 120.00 | 150.00 | 300.00 | 78.00 | 24.00 | - |
For vertical single-line lifting: factory workpiece hoisting, machinery maintenance, truck cargo lashing, small fishing boat rigging, scaffolding connection.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
High performance DIN82101 Type C shackle, drop forged solid carbon steel, professionally heat treated to boost overall strength and load resistance. Adopts hot dip galvanized surface treatment, effectively against rust and corrosion in damp and harsh environments. Conforms to DIN European standard, robust pin structure for firm assembly. Features standard 6:1 safety factor, stable working load limit. Ideal for marine rigging, construction hoisting, cargo binding, vehicle towing and various heavy-duty industrial connection applications. Strict quality control guarantees safe and long-term service.

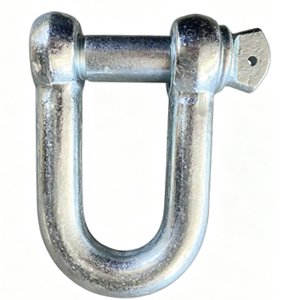

High quality DIN 82101 D-type shackle, drop forged carbon steel material, heat treated for high tensile strength. Available in hot dip galvanized and plain finish, good anti-rust performance. Standard European type Dee shackle with stable working load limit, safe 6:1 safety factor. Widely used for lifting, rigging, towing, marine, construction and cargo binding. Strict quality inspection, durable and reliable for heavy duty industrial use.
Premium G2130 Bolt-Type Anchor Shackle – Forged Alloy Steel, Heavy Duty Lifting & Rigging Shackle, Hot-Dip Galvanized, WLL 0.5T-150T, US Standard 2130 Bow Shackle for Marine, Construction & Mining
Our G2130 (2130) bolt-type anchor shackle is a US-standard heavy-duty bow shackle crafted from high-grade carbon steel body and alloy steel pin, drop-forged, quenched & tempered for maximum strength and durability. Designed with a safety bolt and cotter pin, it ensures secure connection and prevents loosening under load. Available in hot-dip galvanized (G) or self-colored (S) finishes, providing excellent corrosion resistance for harsh environments. With a safety factor of 6:1 and working load limit (WLL) ranging from 0.5 tons to 150 tons, it meets ASME B30.26 and ABS marine standards, ideal for lifting, rigging, towing, and anchoring applications in marine, construction, mining, and oil & gas industries.
This Heavy Duty Tow Shackle (also called Off-road Recovery Shackle) is a premium rigging hardware specially designed for vehicle towing and rescue tasks. Drop forged from high-strength carbon steel with quenched and tempered treatment, it delivers ultra-high tensile strength, stable load capacity and outstanding impact resistance, fully meeting the demand of heavy-duty pulling and off-road recovery. The precision structure with anti-rust coating provides excellent corrosion and wear resistance, adapting perfectly to harsh outdoor, muddy and off-road environments. The large shackle opening fits most vehicle recovery points and winch straps, with easy and fast installation. With permanent working load marking and strict quality testing, it is widely applied for truck trailer towing, off-road vehicle rescue, farm pulling, industrial rigging and vehicle traction operations. Full specifications from 2Ton to 8Ton are available, OEM customization is supported.
G210 US Type Screw Pin Dee Shackle is drop forged alloy steel rigging hardware complying with ASME B30.26 & RR-C-271D US standard. Equipped with quick-release screw pin for fast assembly. Compact D-shaped body concentrates force for vertical single-line lifting only, matching single wire rope, single lifting chain and slings. Surface hot-dip galvanized for anti-rust outdoor service. Widely used in factory crane hoisting, small marine mooring, construction, truck cargo lashing and machinery towing
Premium S209/G209 screw pin anchor shackle made by integrated drop forging and heat treatment, high tensile and fatigue-resistant structure without casting defects. Dimension fully consistent with international US G209 specification, interchangeable with mainstream branded shackles. Strict impact and breaking load inspection, suitable for fishing trawler, vessel anchor connection, heavy engineering lifting and mining rigging. We provide official load test certificates and flexible MOQ for worldwide distributors.
