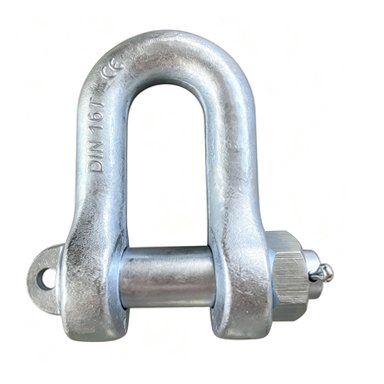

The DIN82101 Type C Shackle connects compatible ropes, chains and fittings through its removable pin. Compare the body opening and pin dimensions with the mating components.
The DIN82101 Type C Shackle connects compatible ropes, chains and fittings through its removable pin. Compare the body opening and pin dimensions with the mating components.
| Size | wll | Weight | Dimensions（MM） | |||||||||
| (T) | (KG) | A | B | C | D | E | F | G | K | M | Tolerance +/- | |
| M5 | 0.1 | 0.013 | 7 | 5 | 4 | 5 | 15 | 10 | 15 | 28 | 23 | +/-5% |
| M6 | 0.16 | 0.021 | 8 | 6 | 5 | 6 | 18 | 12 | 18 | 33 | 26.5 | +/-5% |
| M8 | 0.25 | 0.048 | 11 | 8 | 7 | 8 | 25 | 16 | 23.5 | 44 | 33.5 | +/-5% |
| M10 | 0.4 | 0.083 | 14 | 10 | 8 | 10 | 30 | 20 | 29.5 | 55 | 41 | +/-5% |
| M12 | 0.6 | 0.156 | 17 | 12 | 10 | 12 | 37 | 24 | 35.5 | 66 | 50 | +/-5% |
| M16 | 1 | 0.33 | 21 | 16 | 13 | 15 | 47 | 32 | 48.5 | 88 | 62 | +/-5% |
| M20 | 1.6 | 0.71 | 27 | 20 | 17 | 19 | 61 | 40 | 60.5 | 110 | 82 | +/-5% |
| M22 | 2 | 0.94 | 30 | 22 | 19 | 21 | 68 | 44 | 66.5 | 121 | 90 | +/-5% |
| M24 | 2.5 | 1.35 | 33 | 24 | 21 | 23 | 75 | 48 | 72.5 | 132 | 99 | +/-5% |
| M27 | 3 | 1.89 | 38 | 27 | 24 | 26 | 86 | 54 | 83 | 150 | 115 | +/-5% |
| M30 | 4 | 2.53 | 42 | 30 | 27 | 29 | 96 | 60 | 90.5 | 165 | 125 | +/-5% |
| M36 | 5 | 4 | 47 | 36 | 30 | 33 | 107 | 72 | 110.5 | 198 | 139 | +/-5% |
| M39 | 6 | 5.1 | 53 | 39 | 34 | 37 | 121 | 78 | 119 | 215 | 154.5 | +/-5% |
| M45 | 8 | 7.92 | 60 | 45 | 38 | 41 | 136 | 90 | 138.5 | 248 | 175.5 | +/-5% |
| M48 | 10 | 9.87 | 66 | 48 | 42 | 45 | 150 | 96 | 146 | 264 | 195 | +/-5% |
| M52 | 12 | 13.68 | 73 | 52 | 47 | 50 | 167 | 104 | 157 | 286 | 211 | +/-5% |
| M60 | 16 | 20.23 | 81 | 60 | 52 | 55 | 185 | 120 | 183.5 | 330 | 232 | +/-5% |
| M68 | 20 | 28.51 | 90 | 68 | 58 | 61 | 206 | 136 | 209.5 | 374 | 259 | +/-5% |
| M72 | 25 | 33.93 | 100 | 72 | 63 | 67 | 226 | 144 | 219.5 | 396 | 284 | +/-5% |
Connection assemblies selected to the model rating and loading arrangement.
To request DIN82101 Type C Shackle, please specify body opening, pin diameter, required rated capacity and surface finish. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
