<G210 S-210

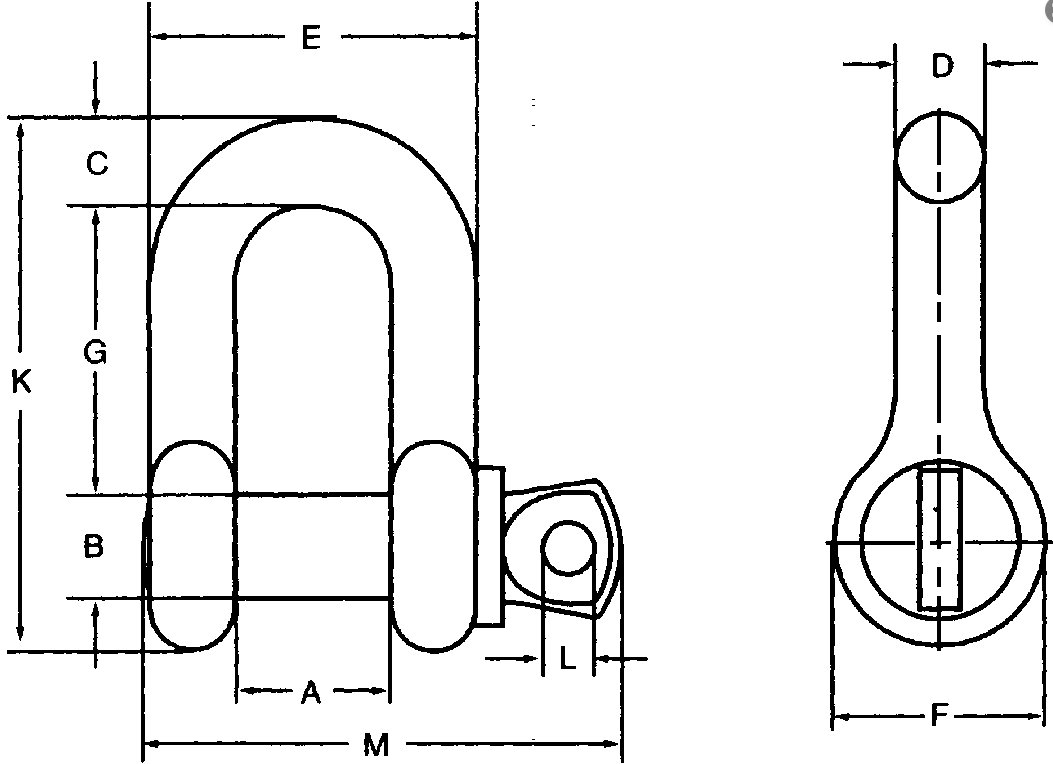

| NOMINAL SIZE （IN） | WORKING LOAD LIMIT（T） | WEIGHT EACH （KG） | DIMENSIONS（MM） | TOLERANCE +/- | ||||||||||
| A | B | C | D | E | F | G | K | L | M | G | A | |||
| 1/4 | 1/2 | 0.05 | 11.90 | 7.85 | 6.35 | 6.35 | 24.60 | 15.50 | 22.40 | 40.40 | 4.85 | 35.10 | 1.50 | 1.50 |
| 5/16 | 3/4 | 0.08 | 13.50 | 9.65 | 7.85 | 7.85 | 29.50 | 19.10 | 26.20 | 48.50 | 5.60 | 42.20 | 1.50 | 1.50 |
 3/8 | 1 | 0.13 | 16.80 | 11.20 | 9.65 | 9.65 | 35.80 | 23.10 | 31.80 | 58.50 | 6.35 | 51.50 | 3.30 | 1.50 |
| 7/16 | 1-1/2 | 0.20 | 19.10 | 12.70 | 11.20 | 11.20 | 41.40 | 26.90 | 36.60 | 67.50 | 7.85 | 60.50 | 3.30 | 1.50 |
| 1/2 | 2 | 0.27 | 20.60 | 16.00 | 12.70 | 12.70 | 46.00 | 30.20 | 41.40 | 77.00 | 9.65 | 68.50 | 3.30 | 1.50 |
| 5/8 | 3-1/4 | 0.57 | 26.90 | 19.10 | 15.70 | 16.00 | 58.50 | 38.10 | 51.00 | 95.50 | 11.20 | 85.00 | 3.30 | 1.50 |
| 3/4 | 4-3/4 | 1.20 | 31.80 | 22.40 | 20.60 | 19.10 | 70.00 | 46.00 | 60.50 | 115.00 | 12.70 | 101.00 | 6.35 | 1.50 |
| 7/8 | 6-1/2 | 4.13 | 36.60 | 25.40 | 24.60 | 22.40 | 81.00 | 53.00 | 71.50 | 135.00 | 12.70 | 114.00 | 6.35 | 1.50 |
| 1 | 8-1/2 | 2.15 | 42.90 | 28.70 | 25.40 | 25.40 | 93.50 | 60.50 | 81.00 | 151.00 | 14.20 | 129.00 | 6.35 | 1.50 |
| 1-1/8 | 9-1/2 | 3.06 | 46.00 | 31.80 | 31.80 | 28.70 | 103.00 | 68.50 | 91.00 | 172.00 | 16.00 | 142.00 | 6.35 | 1.50 |
| 1-1/4 | 12 | 4.11 | 51.50 | 35.10 | 35.10 | 31.80 | 115.00 | 76.00 | 100.00 | 191.00 | 17.50 | 156.00 | 6.35 | 3.30 |
| 1-3/8 | 13-1/2 | 5.28 | 57.00 | 38.10 | 38.10 | 35.10 | 127.00 | 84.00 | 111.00 | 210.00 | 19.10 | 174.00 | 6.35 | 3.30 |
| 1-1/2 | 17 | 7.23 | 60.50 | 41.40 | 41.10 | 38.10 | 137.00 | 92.00 | 122.00 | 230.00 | 20.60 | 187.00 | 6.35 | 3.30 |
| 1-3/4 | 25 | 12.10 | 73.00 | 51.00 | 54.00 | 44.50 | 162.00 | 106.00 | 146.00 | 279.00 | 25.40 | 231.00 | 6.35 | 3.30 |
| 2 | 35 | 19.20 | 82.50 | 57.00 | 51.00 | 51.00 | 184.00 | 122.00 | 172.00 | 312.00 | 31.00 | 263.00 | 6.35 | 3.30 |
| 2-1/2 | 55 | 32.50 | 105.00 | 70.00 | 66.50 | 66.50 | 238.00 | 145.00 | 203.00 | 377.00 | 35.10 | 330.00 | 6.35 | 6.35 |
Compact D-shaped slim body, saves space for narrow lifting positions.
Screw pin design, easy to twist on/off for frequent disassembly.
Drop forged alloy steel with quenching & tempering, high impact resistance.
Only suitable for single rope/chain vertical lifting, stable vertical load capacity.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
High quality European type D shackle, drop forged carbon steel, hot dip galvanized finish for excellent anti-rust and corrosion resistance. Conforms to European standard, compact D-shaped design, firm structure and strong bearing capacity. Equipped with sturdy screw pin for easy assembly and stable locking. Standard safety factor, safe and reliable for heavy duty use. Widely applied in lifting, rigging, cargo binding, ship mooring, construction and various industrial connection occasions. Durable, cost-effective and strictly quality inspected.
Premium S209/G209 screw pin anchor shackle made by integrated drop forging and heat treatment, high tensile and fatigue-resistant structure without casting defects. Dimension fully consistent with international US G209 specification, interchangeable with mainstream branded shackles. Strict impact and breaking load inspection, suitable for fishing trawler, vessel anchor connection, heavy engineering lifting and mining rigging. We provide official load test certificates and flexible MOQ for worldwide distributors.
