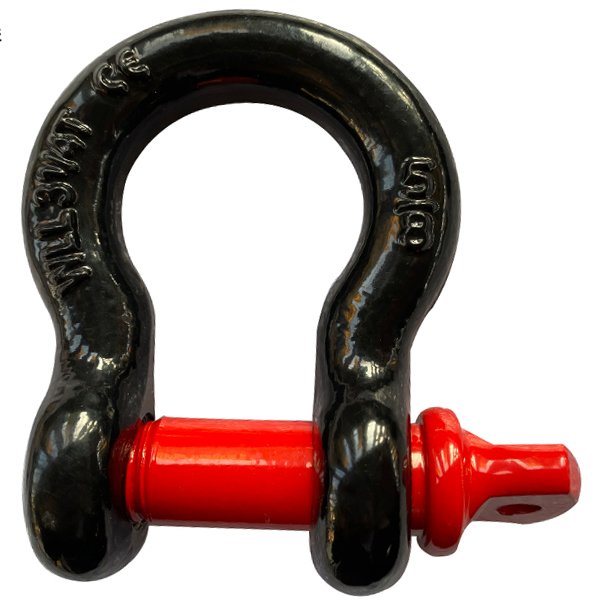

The US Type Screw pin anchor shackles G209 connects compatible ropes, chains and fittings through its removable pin. The screw pin can be removed to connect compatible components.

Product Attributes
  • Material:Body 45#Carbon Steel,Pin 40Cr Alloy Steel

  • Technology:Drop Forged

  • Surface Finish:Electro Galvanized,Hot Dip Galvanized,Dacromet,Powder Coated

  • UItimate Load:4 times or 6 times of the WLL

(0) Reviews

Share To

Product Details

US Type Screw pin anchor shackles G209

The US Type Screw pin anchor shackles G209 connects compatible ropes, chains and fittings through its removable pin. The screw pin can be removed to connect compatible components.

Dimensions and Specifications

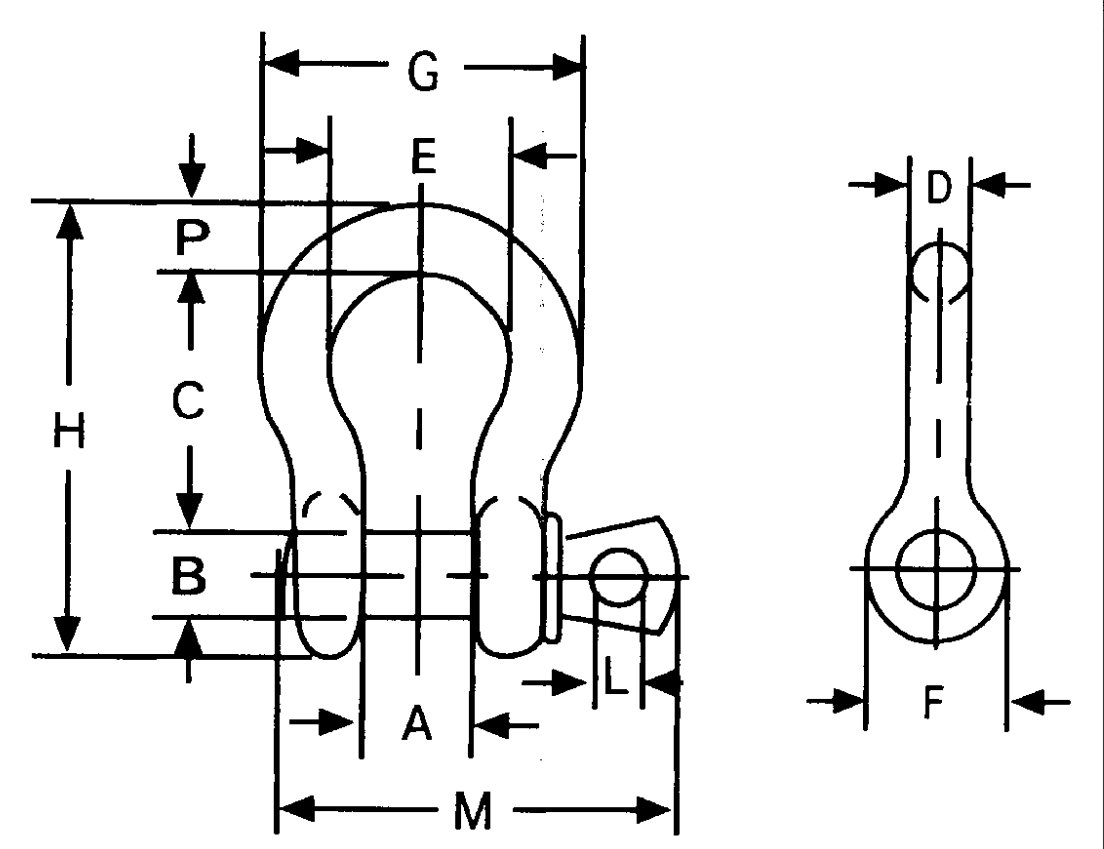

US Type Screw pin anchor shackles G209 product dimensions and specifications

US Type Screw pin anchor shackles G209 product dimensions and specifications

NOMINAL SIZE (IN)WORKING LOAD LIMIT(T)WEIGHT EACH (KG)DIMENSIONS(MM)TOLERANCE   +/-
ABCDEFGHLMPCA
3/161/30.039.65 6.35 22.40 4.85 15.20 14.20 24.90 37.30 4.06 28.40 4.85 1.50 1.50
1/41/20.0511.90 7.85 28.70 6.35 19.80 15.50 32.50 46.70 4.85 35.10 6.35 1.50 1.50
5/163/40.0913.50 9.65 31.00 7.85 21.30 19.10 37.30 53.00 5.60 42.20 7.85 3.30 1.50
3/810.1416.80 11.20 36.60 9.65 26.20 23.10 45.20 63.00 6.35 51.50 9.65 3.30 1.50
7/161-1/20.1719.10 12.70 42.90 11.20 29.50 26.90 51.50 74.00 7.85 60.50 11.20 3.30 1.50
1/220.3320.60 16.00 47.80 12.70 33.30 30.20 58.50 83.50 9.65 68.50 12.70 3.30 1.50
5/83-1/40.6226.90 19.10 60.50 16.00 42.90 38.10 74.50 106.00 11.20 85.00 17.50 6.35 1.50
3/44-3/41.0731.80 22.40 71.50 19.10 51.00 46.00 89.00 126.00 12.70 101.00 20.60 6.35 1.50
7/86-1/21.6436.60 25.40 84.00 22.40 58.00 53.00 102.00 148.00 12.70 114.00 24.60 6.35 1.50
18-1/22.2842.90 28.70 95.50 25.40 68.50 60.50 119.00 167.00 14.20 129.00 26.90 6.35 1.50
1-1/89-1/23.3646.00 31.80 108.00 29.50 74.00 68.50 131.00 190.00 16.00 142.00 31.80 6.35 1.50
1-1/4124.3151.50 35.10 119.00 32.80 82.50 76.00 146.00 210.00 17.50 156.00 35.10 6.35 1.50
1-3/813-1/26.1457.00 38.10 133.00 36.10 92.00 84.00 162.00 233.00 19.10 174.00 38.10 6.35 3.30
1-1/2177.860.50 41.40 146.00 39.10 98.50 92.00 175.00 254.00 20.60 187.00 41.10 6.35 3.30
1-3/42512.673.00 51.00 178.00 46.70 127.00 106.00 225.00 313.00 25.40 231.00 57.00 6.35 3.30
23520.482.50 57.00 197.00 53.00 146.00 122.00 253.00 348.00 31.00 263.00 61.00 6.35 3.30
2-1/25538.9105.00 70.00 267.00 69.00 184.00 145.00 327.00 453.00 35.10 330.00 79.50 6.35 6.35

Applications and Selection

Connection assemblies selected to the model rating and loading arrangement.

Request a Quotation

To request US Type Screw pin anchor shackles G209, please specify body opening, pin diameter, required rated capacity and surface finish. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
