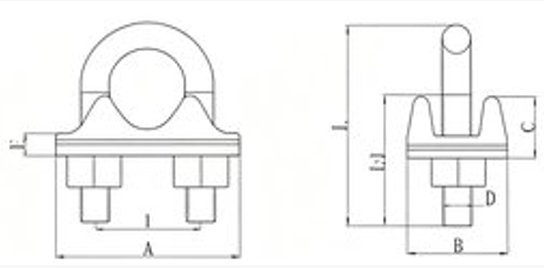

| SIZE (MM)Φ | DIMENSIONS(MM) | WEIGHT (KG.) | |||||||
| A | B | C | D | E | I | L | L1 | ||
| 3-4 | 21.00 | 14.00 | 9.00 | 4.00 | 4.50 | 9.00 | 20.00 | 11.00 | 0.01 |
| 5 | 25.00 | 17.00 | 10.00 | 5.00 | 4.50 | 11.00 | 24.00 | 12.00 | 0.02 |
| 6 | 30.00 | 19.00 | 11.00 | 6.00 | 5.00 | 14.00 | 33.00 | 18.00 | 0.03 |
| 8 | 34.00 | 20.00 | 12.00 | 6.00 | 5.00 | 16.00 | 35.00 | 18.00 | 0.04 |
| 10 | 38.00 | 22.00 | 14.00 | 8.00 | 6.00 | 18.50 | 44.00 | 22.00 | 0.07 |
| 11 | 41.00 | 24.00 | 14.30 | 8.00 | 7.00 | 22.00 | 44.00 | 22.00 | 0.08 |
| 12 | 45.00 | 25.00 | 16.00 | 10.00 | 7.00 | 24.00 | 55.00 | 33.00 | 0.12 |
| 14 | 46.00 | 27.00 | 17.00 | 10.00 | 7.50 | 24.00 | 55.00 | 33.00 | 0.14 |
| 16 | 53.00 | 31.00 | 18.00 | 10.00 | 8.00 | 30.00 | 65.00 | 33.00 | 0.18 |
| 18 | 59.00 | 33.00 | 20.00 | 12.00 | 8.00 | 30.00 | 78.00 | 38.00 | 0.26 |
| 20 | 60.00 | 34.00 | 22.00 | 12.00 | 8.00 | 34.00 | 78.00 | 38.00 | 0.29 |
| 22 | 66.00 | 35.00 | 23.00 | 12.00 | 8.00 | 36.00 | 81.00 | 45.00 | 0.3 |
| 24-25 | 70.00 | 40.00 | 24.00 | 12.00 | 9.00 | 39.00 | 86.00 | 45.00 | 0.38 |
| 26 | 72.00 | 40.00 | 26.50 | 14.00 | 12.00 | 42.00 | 95.00 | 50.00 | - |
| 28 | 80.00 | 43.00 | 30.00 | 14.00 | 12.00 | 43.00 | 110.00 | 55.00 | 0.56 |
| 30 | 80.00 | 44.00 | 33.00 | 14.00 | 10.00 | 47.00 | 110.00 | 50.00 | 0.706 |
| 32 | 92.00 | 45.00 | 34.00 | 16.00 | 14.00 | 49.00 | 115.00 | 60.00 | 0.91 |
| 34 | 90.00 | 48.00 | 37.00 | 16.00 | 11.00 | 53.00 | 120.00 | 55.00 | - |
| 38 | 95.00 | 51.00 | 39.00 | 16.00 | 16.00 | 57.00 | 130.00 | 63.00 | 1.03 |
| 40 | 100.00 | 55.00 | 40.00 | 16.00 | 14.00 | 59.00 | 140.00 | 60.00 | - |
| 45 | 116.00 | 60.00 | 47.00 | 16.00 | 17.00 | 70.00 | 158.00 | 83.00 | 1.45 |
<
| SIZE (MM)Φ | DIMENSIONS(MM) | WEIGHT (KG.) | |||||||
| A | B | C | D | E | I | L | L1 | ||
| 3-4 | 21.00 | 14.00 | 9.00 | 4.00 | 4.50 | 9.00 | 20.00 | 11.00 | 0.01 |
| 5 | 25.00 | 17.00 | 10.00 | 5.00 | 4.50 | 11.00 | 24.00 | 12.00 | 0.02 |
| 6 | 30.00 | 19.00 | 11.00 | 6.00 | 5.00 | 14.00 | 33.00 | 18.00 | 0.03 |
| 8 | 34.00 | 20.00 | 12.00 | 6.00 | 5.00 | 16.00 | 35.00 | 18.00 | 0.04 |
| 10 | 38.00 | 22.00 | 14.00 | 8.00 | 6.00 | 18.50 | 44.00 | 22.00 | 0.07 |
| 11 | 41.00 | 24.00 | 14.30 | 8.00 | 7.00 | 22.00 | 44.00 | 22.00 | 0.08 |
| 12 | 45.00 | 25.00 | 16.00 | 10.00 | 7.00 | 24.00 | 55.00 | 33.00 | 0.12 |
| 14 | 46.00 | 27.00 | 17.00 | 10.00 | 7.50 | 24.00 | 55.00 | 33.00 | 0.14 |
| 16 | 53.00 | 31.00 | 18.00 | 10.00 | 8.00 | 30.00 | 65.00 | 33.00 | 0.18 |
| 18 | 59.00 | 33.00 | 20.00 | 12.00 | 8.00 | 30.00 | 78.00 | 38.00 | 0.26 |
| 20 | 60.00 | 34.00 | 22.00 | 12.00 | 8.00 | 34.00 | 78.00 | 38.00 | 0.29 |
| 22 | 66.00 | 35.00 | 23.00 | 12.00 | 8.00 | 36.00 | 81.00 | 45.00 | 0.3 |
| 24-25 | 70.00 | 40.00 | 24.00 | 12.00 | 9.00 | 39.00 | 86.00 | 45.00 | 0.38 |
| 26 | 72.00 | 40.00 | 26.50 | 14.00 | 12.00 | 42.00 | 95.00 | 50.00 | - |
| 28 | 80.00 | 43.00 | 30.00 | 14.00 | 12.00 | 43.00 | 110.00 | 55.00 | 0.56 |
| 30 | 80.00 | 44.00 | 33.00 | 14.00 | 10.00 | 47.00 | 110.00 | 50.00 | 0.706 |
| 32 | 92.00 | 45.00 | 34.00 | 16.00 | 14.00 | 49.00 | 115.00 | 60.00 | 0.91 |
| 34 | 90.00 | 48.00 | 37.00 | 16.00 | 11.00 | 53.00 | 120.00 | 55.00 | - |
| 38 | 95.00 | 51.00 | 39.00 | 16.00 | 16.00 | 57.00 | 130.00 | 63.00 | 1.03 |
| 40 | 100.00 | 55.00 | 40.00 | 16.00 | 14.00 | 59.00 | 140.00 | 60.00 | - |
| 45 | 116.00 | 60.00 | 47.00 | 16.00 | 17.00 | 70.00 | 158.00 | 83.00 | 1.45 |
<
| SIZE (MM)Φ | DIMENSIONS(MM) | WEIGHT (KG.) | |||||||
| A | B | C | D | E | I | L | L1 | ||
| 3-4 | 21.00 | 14.00 | 9.00 | 4.00 | 4.50 | 9.00 | 20.00 | 11.00 | 0.01 |
| 5 | 25.00 | 17.00 | 10.00 | 5.00 | 4.50 | 11.00 | 24.00 | 12.00 | 0.02 |
| 6 | 30.00 | 19.00 | 11.00 | 6.00 | 5.00 | 14.00 | 33.00 | 18.00 | 0.03 |
| 8 | 34.00 | 20.00 | 12.00 | 6.00 | 5.00 | 16.00 | 35.00 | 18.00 | 0.04 |
| 10 | 38.00 | 22.00 | 14.00 | 8.00 | 6.00 | 18.50 | 44.00 | 22.00 | 0.07 |
| 11 | 41.00 | 24.00 | 14.30 | 8.00 | 7.00 | 22.00 | 44.00 | 22.00 | 0.08 |
| 12 | 45.00 | 25.00 | 16.00 | 10.00 | 7.00 | 24.00 | 55.00 | 33.00 | 0.12 |
| 14 | 46.00 | 27.00 | 17.00 | 10.00 | 7.50 | 24.00 | 55.00 | 33.00 | 0.14 |
| 16 | 53.00 | 31.00 | 18.00 | 10.00 | 8.00 | 30.00 | 65.00 | 33.00 | 0.18 |
| 18 | 59.00 | 33.00 | 20.00 | 12.00 | 8.00 | 30.00 | 78.00 | 38.00 | 0.26 |
| 20 | 60.00 | 34.00 | 22.00 | 12.00 | 8.00 | 34.00 | 78.00 | 38.00 | 0.29 |
| 22 | 66.00 | 35.00 | 23.00 | 12.00 | 8.00 | 36.00 | 81.00 | 45.00 | 0.3 |
| 24-25 | 70.00 | 40.00 | 24.00 | 12.00 | 9.00 | 39.00 | 86.00 | 45.00 | 0.38 |
| 26 | 72.00 | 40.00 | 26.50 | 14.00 | 12.00 | 42.00 | 95.00 | 50.00 | - |
| 28 | 80.00 | 43.00 | 30.00 | 14.00 | 12.00 | 43.00 | 110.00 | 55.00 | 0.56 |
| 30 | 80.00 | 44.00 | 33.00 | 14.00 | 10.00 | 47.00 | 110.00 | 50.00 | 0.706 |
| 32 | 92.00 | 45.00 | 34.00 | 16.00 | 14.00 | 49.00 | 115.00 | 60.00 | 0.91 |
| 34 | 90.00 | 48.00 | 37.00 | 16.00 | 11.00 | 53.00 | 120.00 | 55.00 | - |
| 38 | 95.00 | 51.00 | 39.00 | 16.00 | 16.00 | 57.00 | 130.00 | 63.00 | 1.03 |
| 40 | 100.00 | 55.00 | 40.00 | 16.00 | 14.00 | 59.00 | 140.00 | 60.00 | - |
| 45 | 116.00 | 60.00 | 47.00 | 16.00 | 17.00 | 70.00 | 158.00 | 83.00 | 1.45 |

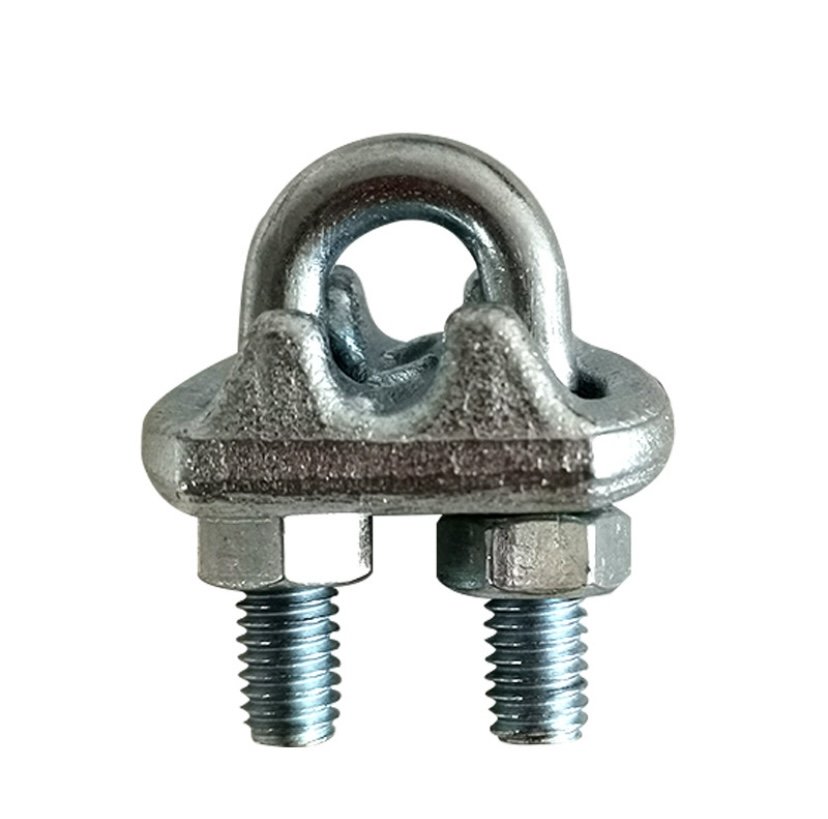

Italian type wire rope clips are widely used for securing the ends of steel wire ropes. They are commonly applied in lifting projects, marine mooring, building construction, truck cargo lashing, mine cable fixing and wire rope guardrail installation.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.

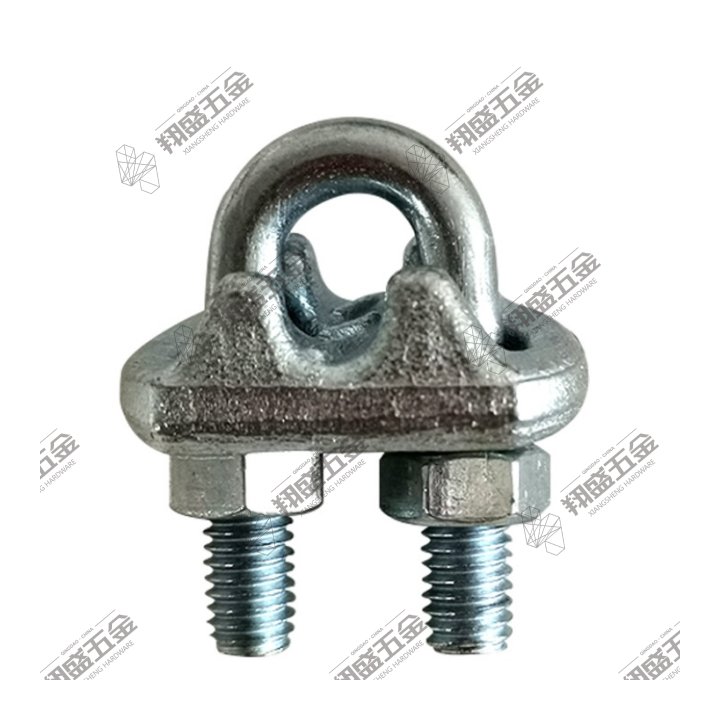

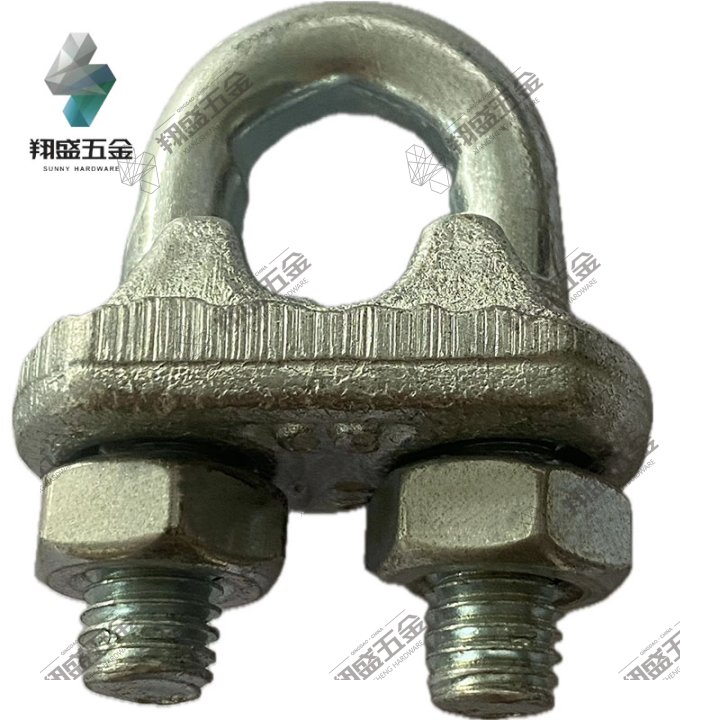

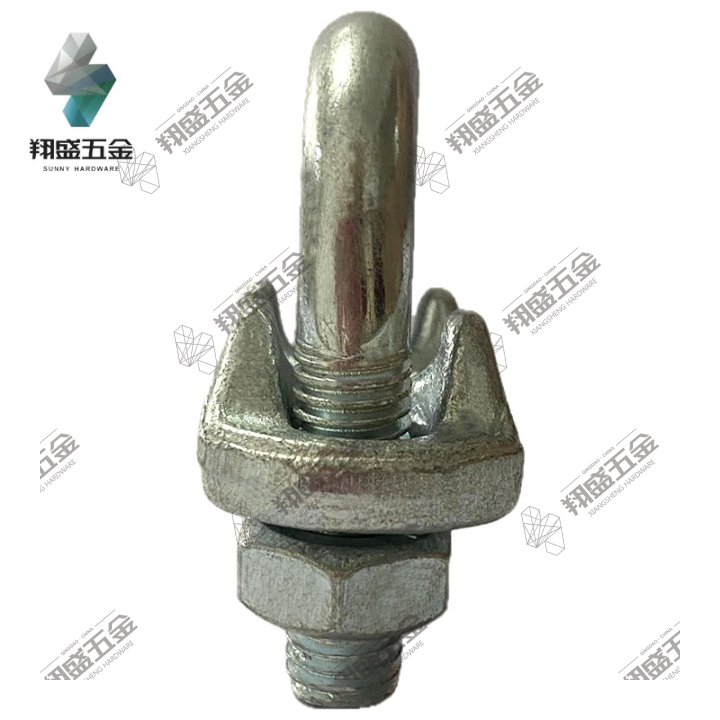

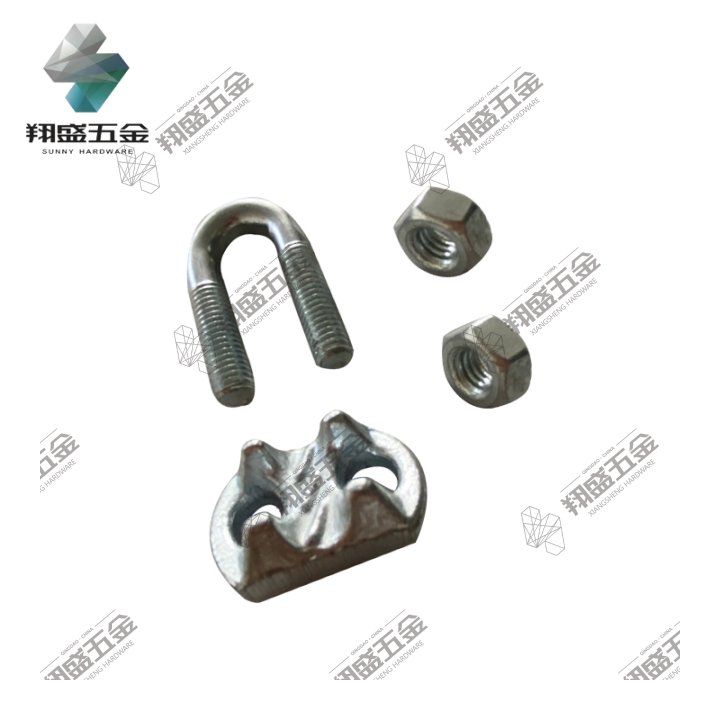

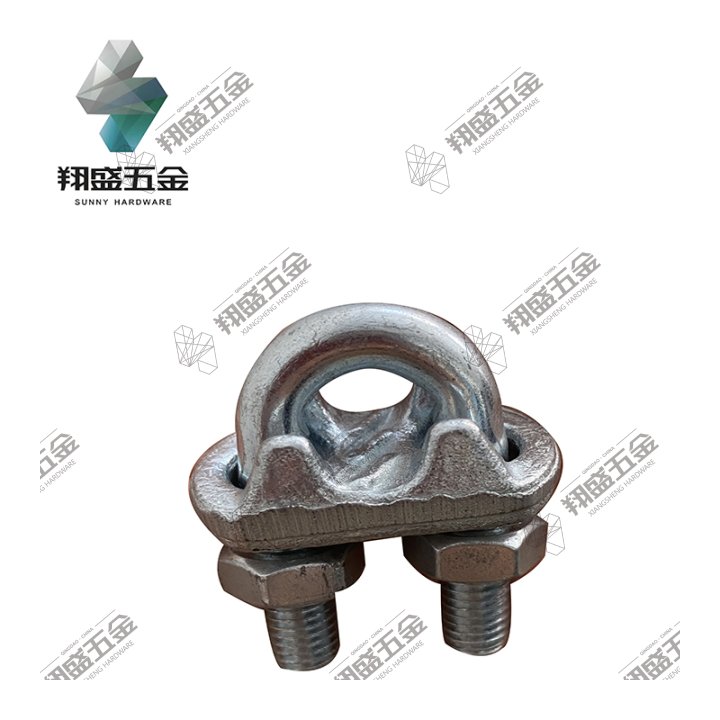

Italian Type Wire Rope Clip / Wire Rope Clamp, forged heavy-duty rigging fitting. Available in galvanized carbon steel and anti-corrosion stainless steel. Ideal for marine, construction, PV and landscape wire rope fastening, static use only, cannot be used for lifting.
This 304 Stainless Steel Wire Rope Clip (also called U-bolt Wire Rope Clamp) is a premium rigging hardware for securely fastening wire rope ends. Crafted from high-quality 304 stainless steel, it delivers outstanding rust resistance, corrosion resistance and weather resistance, perfectly adapting to humid, coastal and marine working environments, with no rusting or corrosion even after long-term outdoor or water exposure. The precision-machined U-bolt and saddle structure provides strong and stable clamping force, which can firmly fix the wire rope loop without damaging the cable structure, ensuring safe and reliable connection. It is easy to install, remove and reusable, widely applied for marine rigging, ship deck fittings, outdoor railing installation, lifting slings, cable fixing and general industrial rigging operations. Multiple specifications for different rope diameters are available, OEM customization is supported.
DIN 741 standard wire rope clip made of high quality malleable iron, with hot dip galvanized finish for excellent anti-corrosion performance. Designed for firm wire rope connection, widely used in lifting, rigging, construction and marine applications. Xiangsheng Hardware offers complete sizes and reliable quality

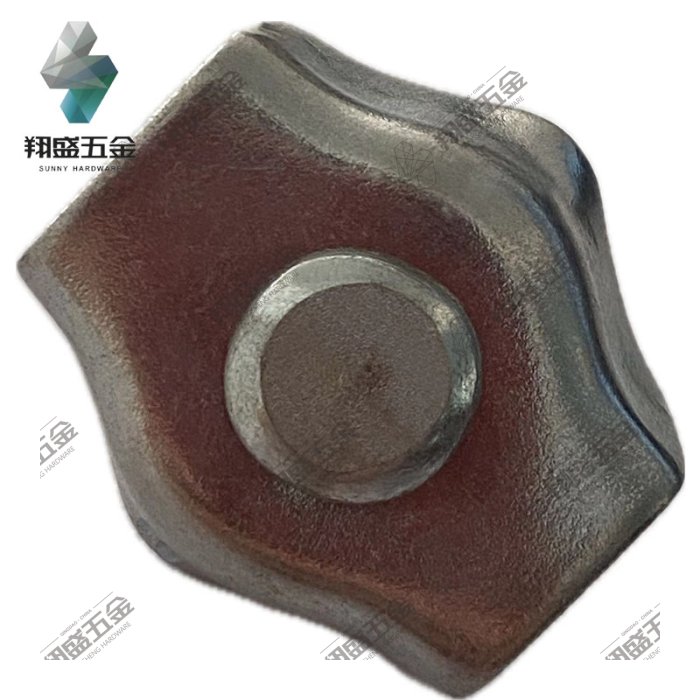

Single Bulldog Wire Rope Clip, made of high-quality malleable iron with galvanized surface treatment. Features strong clamping force, stable fixing and easy installation. Widely used in lifting, rigging and wire rope connection. Professional hardware supply from Xiangsheng Hardware.
Type A malleable iron wire rope clip with galvanized surface treatment, features high hardness, strong clamping force and anti-rust performance. It is widely used for wire rope fixing, lifting and rigging connection. Factory direct supply with complete specifications.
American Forged Wire Rope Clip, made of high-strength forged steel. Integral forging process ensures high load capacity and fracture resistance. Hot galvanized surface for anti-corrosion, suitable for lifting, rigging and heavy industrial occasions.
