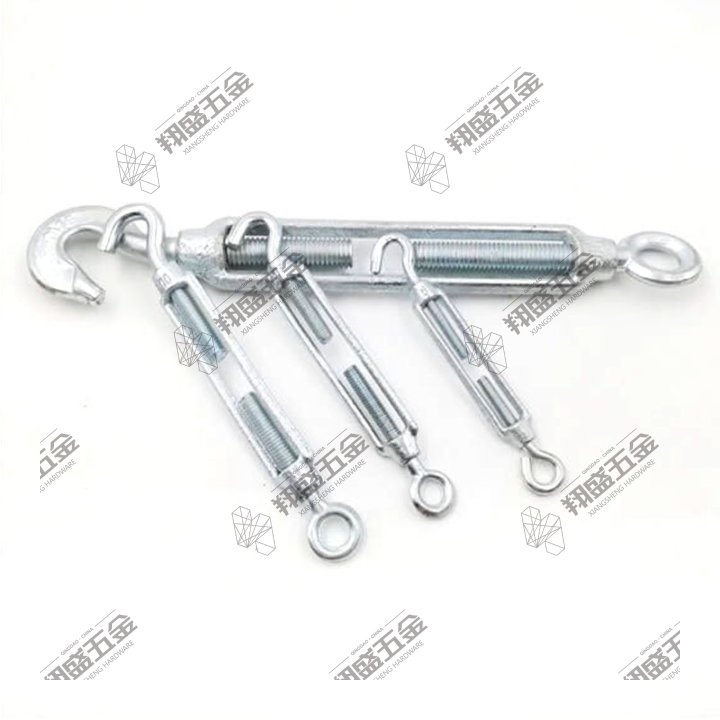

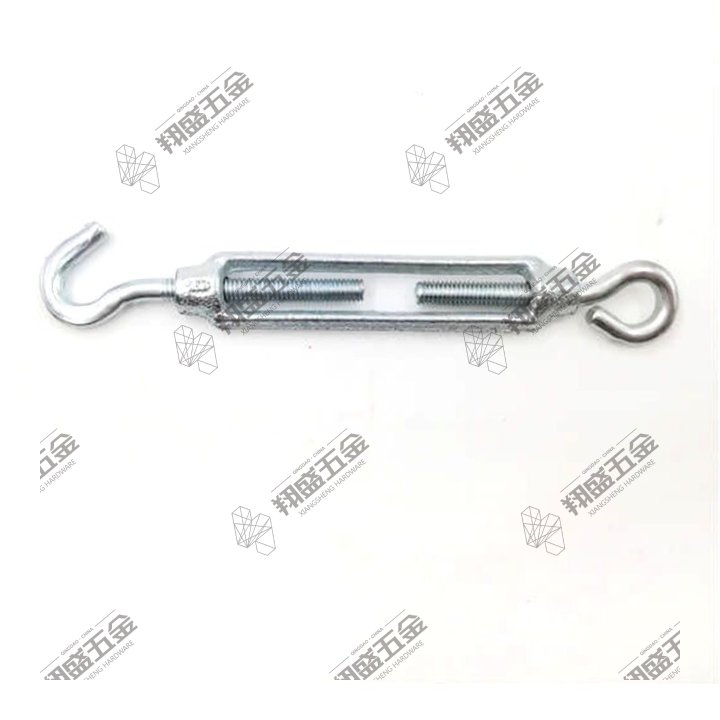

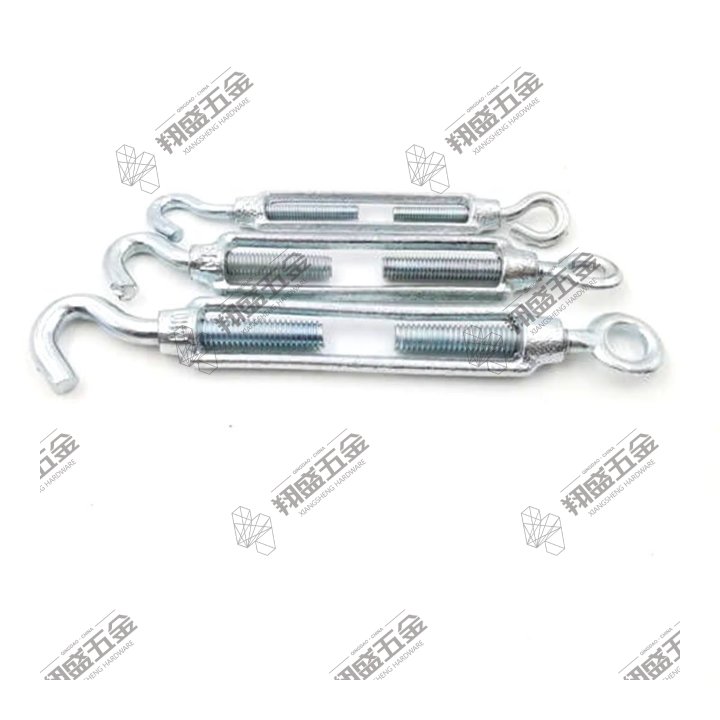

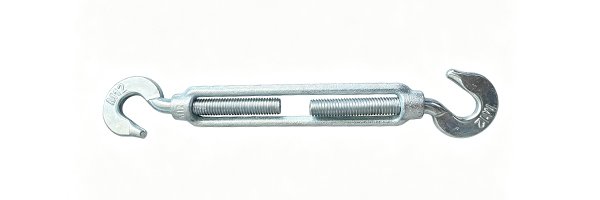

• Eye and Eye, Hook and Hook, Eye and Hook.
• Malleable Iron
• Zinc Plated
• Size embossed on each turnbuckle.

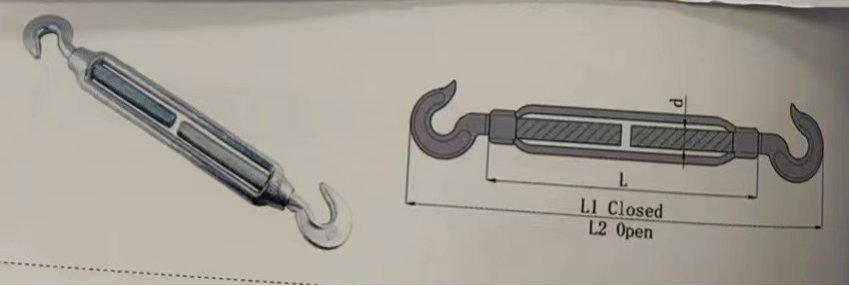

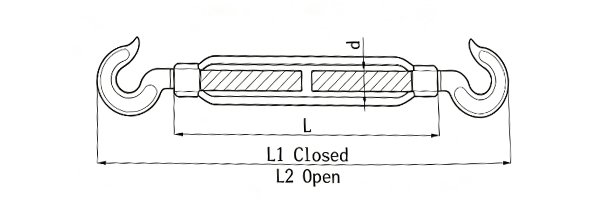

| Size(d) | WLL | ForWire Rope | Dimensions(mm) | Weight | |||
| (mm) | (KG) | Max.Diameter | L | L1 | L2 | (kg) | |
| (mm) | Closed | Open | |||||
| 10*150 | 230 | 4.50 | 150 | 266 | 378 | 0.265 | |
| 12*200 | 320 | 5.50 | 200 | 334 | 476 | 0.456 | |
| 16*250 | 630 | 8.50 | 250 | 442 | 638 | 0.860 | |
| 20*300 | 980 | 9.50 | 300 | 520 | 740 | 1.530 | |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
Heavy-duty US standard Eye & Jaw turnbuckle, whole piece drop forged and heat treated for superior tensile strength. Strict load test to meet American industrial requirements, competitive factory wholesale price. Third-party inspection test reports can be provided for customs clearance. Long-term cooperation with US distributors and importers is warmly welcomed.
DIN 6899B standard wire rope thimble made of premium carbon steel with galvanized surface. It effectively reduces friction and bending wear of wire rope, improving service safety and service life. Widely used for lifting, rigging and mechanical connection.
G411 Wire Rope Thimble is manufactured with high-quality carbon steel and galvanized finish. This standard thimble protects wire rope from friction, bending and abrasion, greatly extending service life. Suitable for lifting, rigging and general industrial applications.
