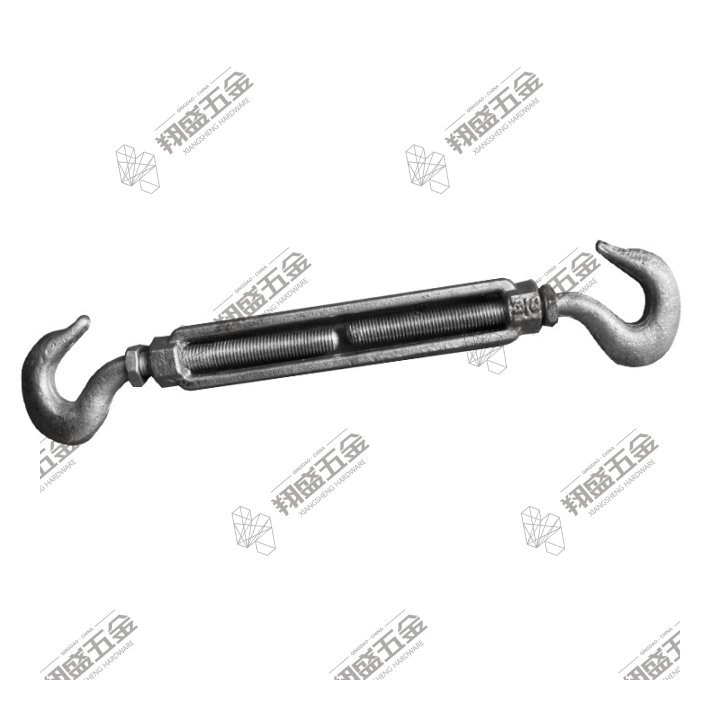

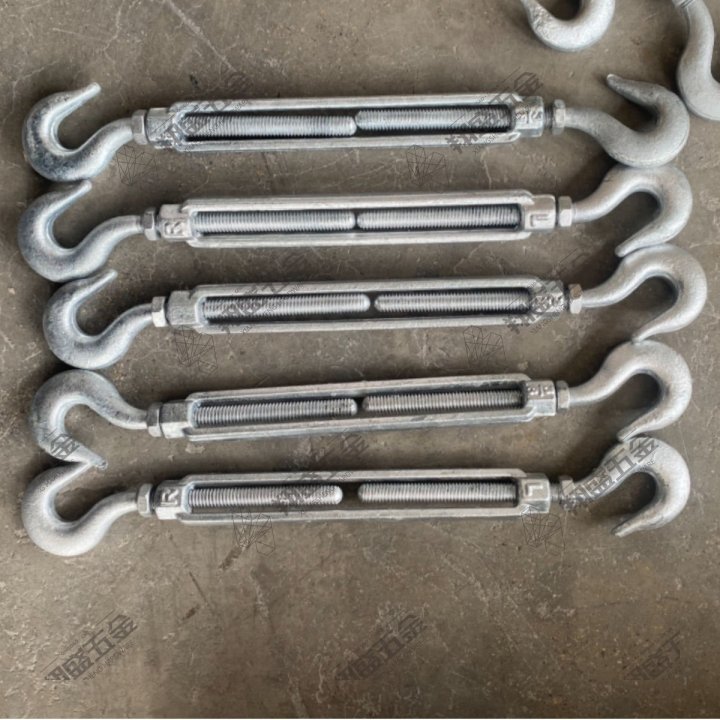

• Hook and Hook.
• Drop Forged
• Zinc Plated, Hot Dipped Galvanized.
• Satisfies US requirements.
• Safety Factor: 5:1
• Size embossed on each s turnbuckle.
<

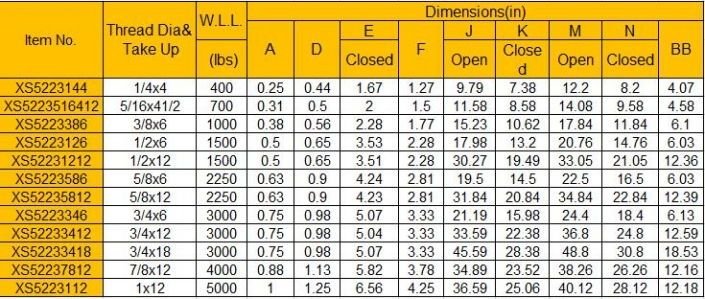

| THREAD DIA&TAKE UP(IN.) | WORKING LOAD LIMIT(LBS.) | WEIGHT EACH (LBS.) | DIMENSIONS(IN.) | ||||||||
| A | D | E CLOSED | F | J OPEN | K CLOSED | N CLOSED | BB | ||||
| 1/4x4 | 400 | 0.30 | 0.25 | 0.45 | 1.59 | 1.27 | 11.12 | 7.12 | 7.94 | 4.00 | |
| 5/16x4-1/2 | 700 | 0.47 | 0.31 | 0.50 | 1.94 | 1.50 | 12.81 | 8.31 | 9.31 | 4.50 | |
| 3/8x6 | 1000 | 0.78 | 0.38 | 0.56 | 2.30 | 1.77 | 16.50 | 10.50 | 11.72 | 6.00 | |
| 1/2x6 | 1500 | 1.60 | 0.50 | 0.66 | 2.94 | 2.28 | 18.82 | 11.82 | 13.38 | 6.00 | |
| 1/2x9 | 1500 | 1.83 | 0.50 | 0.66 | 2.94 | 2.28 | 24.82 | 14.82 | 16.38 | 9.00 | |
| 1/2x12 | 1500 | 2.28 | 0.50 | 0.66 | 2.94 | 2.28 | 30.82 | 17.82 | 19.38 | 12.00 | |
| 5/8x6 | 2250 | 2.75 | 0.63 | 0.90 | 3.69 | 2.81 | 20.50 | 13.25 | 15.25 | 6.00 | |
| 5/8x9 | 2250 | 3.38 | 0.63 | 0.90 | 3.69 | 2.81 | 26.50 | 16.25 | 18.25 | 9.00 | |
| 5/8x12 | 2250 | 3.50 | 0.63 | 0.90 | 3.69 | 2.81 | 32.50 | 19.25 | 21.25 | 12.00 | |
| 3/4x6 | 3000 | 3.89 | 0.75 | 0.98 | 4.52 | 3.33 | 22.38 | 14.88 | 17.28 | 6.00 | |
| 3/4x9 | 3000 | 5.28 | 0.75 | 0.98 | 4.52 | 3.33 | 28.38 | 17.88 | 20.28 | 9.00 | |
| 3/4x12 | 3000 | 5.43 | 0.75 | 0.98 | 4.52 | 3.33 | 34.38 | 20.88 | 23.28 | 12.00 | |
| 3/4x18 | 3000 | 8.12 | 0.75 | 0.98 | 4.52 | 3.33 | 46.38 | 26.88 | 29.28 | 18.00 | |
| 7/8x12 | 4000 | 8.10 | 0.88 | 1.13 | 5.19 | 3.78 | 36.00 | 22.25 | 25.00 | 12.00 | |
| 7/8x18 | 4000 | 9.95 | 0.88 | 1.13 | 5.19 | 3.78 | 48.00 | 28.25 | 31.00 | 18.00 | |
| 1x6 | 5000 | 9.33 | 1.00 | 1.25 | 5.84 | 4.25 | 25.63 | 17.63 | 20.69 | 6.00 | |
| 1x12 | 5000 | 11.93 | 1.00 | 1.25 | 5.84 | 4.25 | 37.63 | 23.63 | 26.69 | 12.00 | |
| 1x18 | 5000 | 14.00 | 1.00 | 1.25 | 5.84 | 4.25 | 49.63 | 29.63 | 32.69 | 18.00 | |
| 1x24 | 5000 | 17.25 | 1.00 | 1.25 | 5.84 | 4.25 | 61.63 | 35.63 | 38.69 | 24.00 | |
| 1-1/4x12 | 6500 | 20.58 | 1.25 | 1.50 | 7.22 | 5.13 | 40.44 | 25.94 | 29.56 | 12.00 | |
| 1-1/4x18 | 6500 | 23.00 | 1.25 | 1.50 | 7.22 | 5.13 | 52.44 | 31.94 | 35.56 | 18.00 | |
| 1-1/4x24 | 6500 | 27.00 | 1.25 | 1.50 | 7.22 | 5.13 | 64.44 | 37.94 | 41.56 | 24.00 | |
| 1-1/2x12 | 7500 | 27.50 | 1.50 | 1.88 | 8.34 | 5.75 | 43.94 | 28.94 | 32.44 | 12.00 | |
| 1-1/2x18 | 7500 | 31.00 | 1.50 | 1.88 | 8.34 | 5.75 | 55.96 | 34.94 | 38.44 | 18.00 | |
| 1-1/2x24 | 7500 | 37.50 | 1.50 | 1.88 | 8.34 | 5.75 | 67.94 | 40.94 | 44.44 | 24.00 | |
Application Scope of US Drop Forged Hook & Hook Turnbuckle HG-223For temporary static tensioning of marine awning cables, temporary construction fences, medium solar brackets and protective wire mesh, not for lifting operations.
