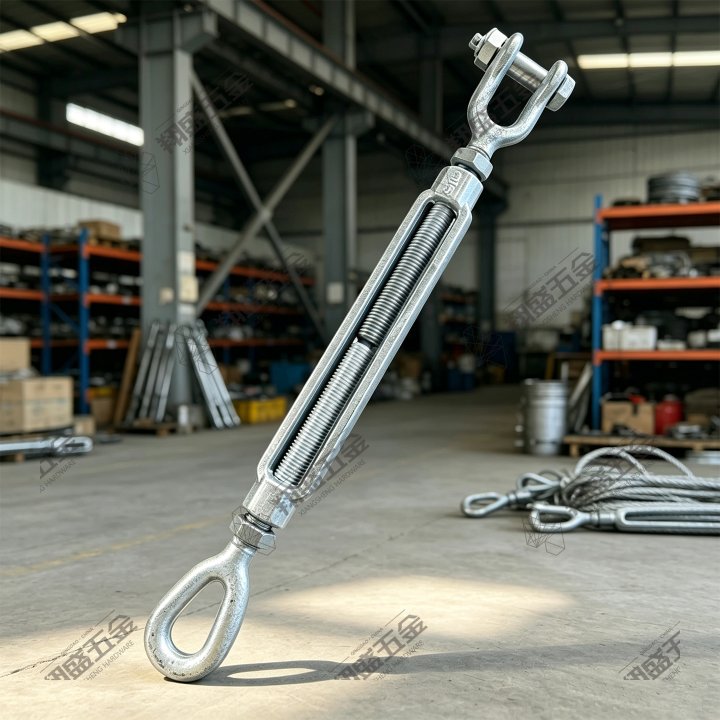

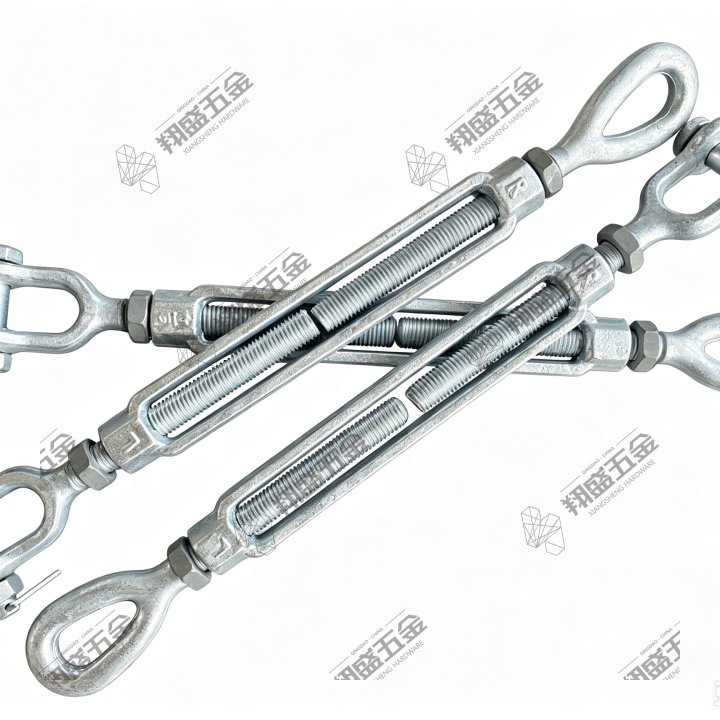

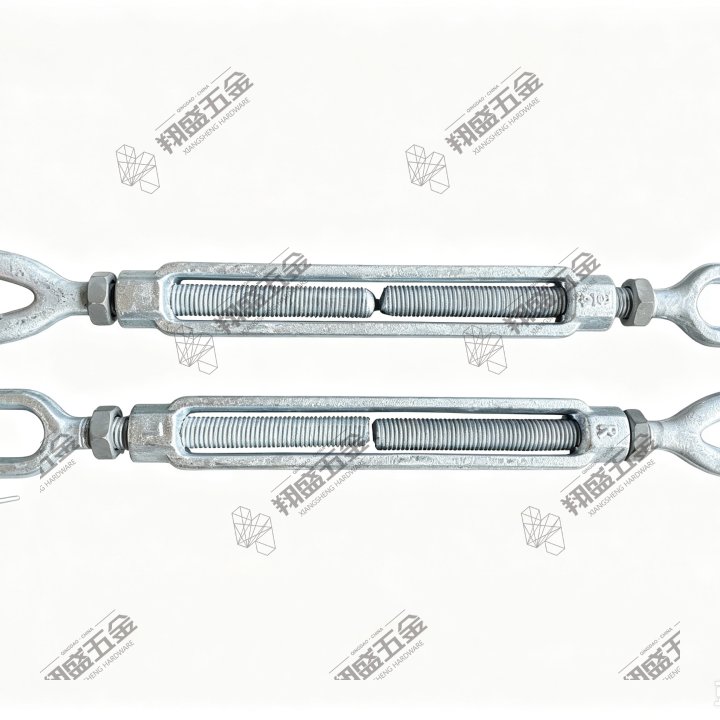

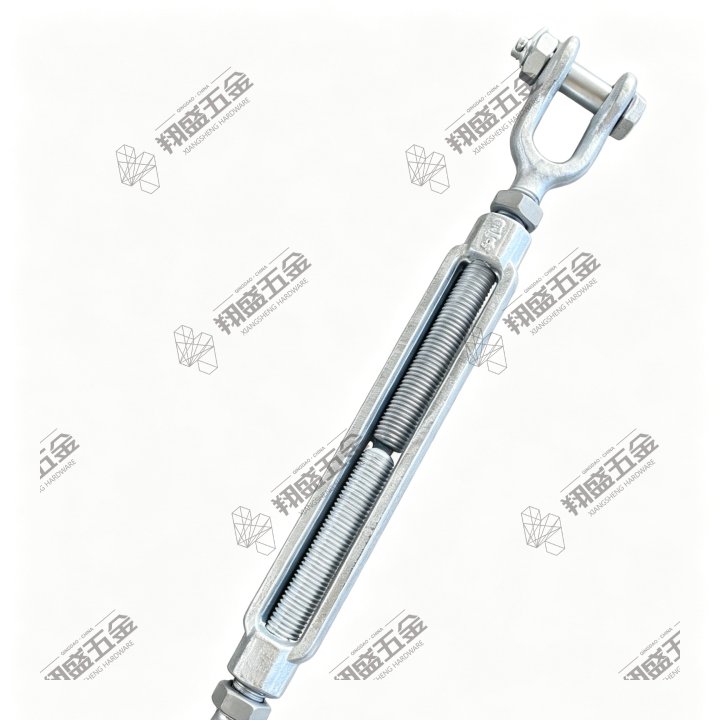

The U.S. Drop Forged Eye & Jaw Turnbuckle adjusts the tension and effective length of a compatible wire or tie assembly. The eye and jaw interfaces suit matching end connections.
The U.S. Drop Forged Eye & Jaw Turnbuckle adjusts the tension and effective length of a compatible wire or tie assembly. The eye and jaw interfaces suit matching end connections.
![]()
| THREAD DIA&TAKE UP(IN.) | WORKING LOAD LIMIT(LBS.) | WEIGHT EACH (LBS.) | DIMENSIONS(IN.) | |||||||||||
| A | B | E CLOSED | G | J OPEN | K CLOSED | N CLOSED | R | S | X CLOSED | BB | ||||
| 1/4x4 | 500 | 0.30 | 0.25 | 0.45 | 1.58 | 0.62 | 11.35 | 7.35 | 8.07 | 0.78 | 0.34 | 1.75 | 4.00 | |
| 5/16x4-1/2 | 800 | 0.50 | 0.31 | 0.50 | 1.98 | 0.87 | 13.71 | 8.71 | 9.51 | 0.94 | 0.44 | 2.09 | 4.50 | |
| 3/8x6 | 1200 | 0.80 | 0.38 | 0.54 | 2.12 | 0.87 | 16.81 | 10.81 | 11.77 | 1.12 | 0.53 | 2.52 | 6.00 | |
| 1/2x6 | 2200 | 1.51 | 0.50 | 0.55 | 2.75 | 1.06 | 19.29 | 12.29 | 13.48 | 1.42 | 0.72 | 3.23 | 6.00 | |
| 1/2x9 | 2200 | 1.71 | 0.50 | 0.55 | 2.75 | 1.06 | 25.29 | 15.29 | 16.48 | 1.42 | 0.72 | 3.23 | 9.00 | |
| 1/2x12 | 2200 | 2.08 | 0.50 | 0.55 | 2.75 | 1.06 | 31.29 | 18.29 | 19.48 | 1.42 | 0.72 | 3.23 | 12.00 | |
| 5/8x6 | 3500 | 2.35 | 0.63 | 0.82 | 3.50 | 1.31 | 20.99 | 13.74 | 15.28 | 1.80 | 0.88 | 3.90 | 6.00 | |
| 5/8x9 | 3500 | 3.17 | 0.63 | 0.82 | 3.50 | 1.31 | 26.99 | 16.74 | 18.28 | 1.80 | 0.88 | 3.90 | 9.00 | |
| 5/8x12 | 3500 | 3.61 | 0.63 | 0.82 | 3.50 | 1.31 | 32.99 | 19.74 | 21.28 | 1.80 | 0.88 | 3.90 | 12.00 | |
| 3/4x6 | 5200 | 4.00 | 0.75 | 1.03 | 4.18 | 1.50 | 22.69 | 15.19 | 17.11 | 2.09 | 1.00 | 4.69 | 6.00 | |
| 3/4x9 | 5200 | 4.75 | 0.75 | 1.03 | 4.18 | 1.50 | 28.69 | 18.19 | 20.11 | 2.09 | 1.00 | 4.69 | 9.00 | |
| 3/4x12 | 5200 | 5.93 | 0.75 | 1.03 | 4.18 | 1.50 | 34.69 | 21.19 | 23.11 | 2.09 | 1.00 | 4.69 | 12.00 | |
| 3/4x18 | 5200 | 7.00 | 0.75 | 1.03 | 4.18 | 1.50 | 46.69 | 27.19 | 29.11 | 2.09 | 1.00 | 4.69 | 18.00 | |
| 7/8x12 | 7200 | 8.36 | 0.88 | 1.23 | 4.85 | 1.75 | 36.09 | 22.34 | 24.57 | 2.38 | 1.25 | 5.10 | 12.00 | |
| 7/8x18 | 7200 | 9.75 | 0.88 | 1.23 | 4.85 | 1.75 | 48.09 | 28.34 | 30.57 | 2.38 | 1.25 | 5.10 | 18.00 | |
| 1x6 | 10000 | 8.92 | 1.00 | 1.31 | 5.53 | 2.06 | 26.34 | 18.34 | 20.89 | 3.00 | 1.44 | 6.36 | 6.00 | |
| 1x12 | 10000 | 11.20 | 1.00 | 1.31 | 5.53 | 2.06 | 38.34 | 24.34 | 26.89 | 3.00 | 1.44 | 6.36 | 12.00 | |
| 1x18 | 10000 | 13.30 | 1.00 | 1.31 | 5.53 | 2.06 | 50.34 | 30.34 | 32.89 | 3.00 | 1.44 | 6.36 | 18.00 | |
| 1x24 | 10000 | 17.00 | 1.00 | 1.31 | 5.53 | 2.06 | 62.34 | 36.34 | 38.89 | 3.00 | 1.44 | 6.36 | 24.00 | |
| 1-1/4x12 | 15200 | 19.42 | 1.25 | 1.86 | 7.21 | 2.81 | 41.32 | 26.82 | 30.05 | 3.56 | 1.81 | 7.72 | 12.00 | |
| 1-1/4x18 | 15200 | 24.18 | 1.25 | 1.86 | 7.21 | 2.81 | 53.32 | 32.82 | 36.05 | 3.56 | 1.81 | 7.72 | 18.00 | |
| 1-1/4x24 | 15200 | 28.50 | 1.25 | 1.86 | 7.21 | 2.81 | 65.32 | 38.82 | 42.05 | 4.06 | 1.81 | 7.72 | 24.00 | |
| 1-1/2x12 | 21400 | 28.99 | 1.50 | 2.25 | 7.88 | 2.81 | 73.50 | 28.50 | 32.25 | 4.06 | 2.12 | 8.62 | 12.00 | |
| 1-1/2x18 | 21400 | 35.00 | 1.50 | 2.25 | 7.88 | 2.81 | 55.50 | 34.50 | 38.25 | 4.06 | 2.12 | 8.62 | 18.00 | |
| 1-1/2x24 | 21400 | 39.18 | 1.50 | 2.25 | 7.88 | 2.81 | 67.50 | 40.50 | 44.25 | 4.62 | 2.12 | 8.62 | 24.00 | |
| 1-3/4X18 | 28000 | 53.75 | 1.75 | 2.60 | 9.40 | 3.38 | 55.38 | 37.38 | 41.78 | 4.62 | 2.38 | 10.00 | 18.00 | |
| 1-3/4X24 | 28000 | 60.68 | 1.75 | 2.60 | 9.40 | 3.38 | 67.38 | 43.38 | 47.78 | 4.62 | 2.38 | 10.00 | 24.00 | |
| 2X24 | 37000 | 89.00 | 2.00 | 2.62 | 11.86 | 3.69 | 72.62 | 48.62 | 53.95 | 5.75 | 2.69 | 13.09 | 24.00 | |
| 2-1/2X24 | 60000 | 150.00 | 2.50 | 3.06 | 13.56 | 4.44 | 75.80 | 51.80 | 58.40 | 6.50 | 3.12 | 13.78 | 24.00 | |
| 2-3/4X24 | 75000 | 183.00 | 2.75 | 3.68 | 15.22 | 4.19 | 77.88 | 53.88 | 61.50 | 7.00 | 3.25 | 15.22 | 24.00 | |
Static cable tensioning, stays and securing arrangements.
To request U.S. Drop Forged Eye & Jaw Turnbuckle, please specify thread diameter and pitch, body length, end fittings, adjustment range and finish. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
