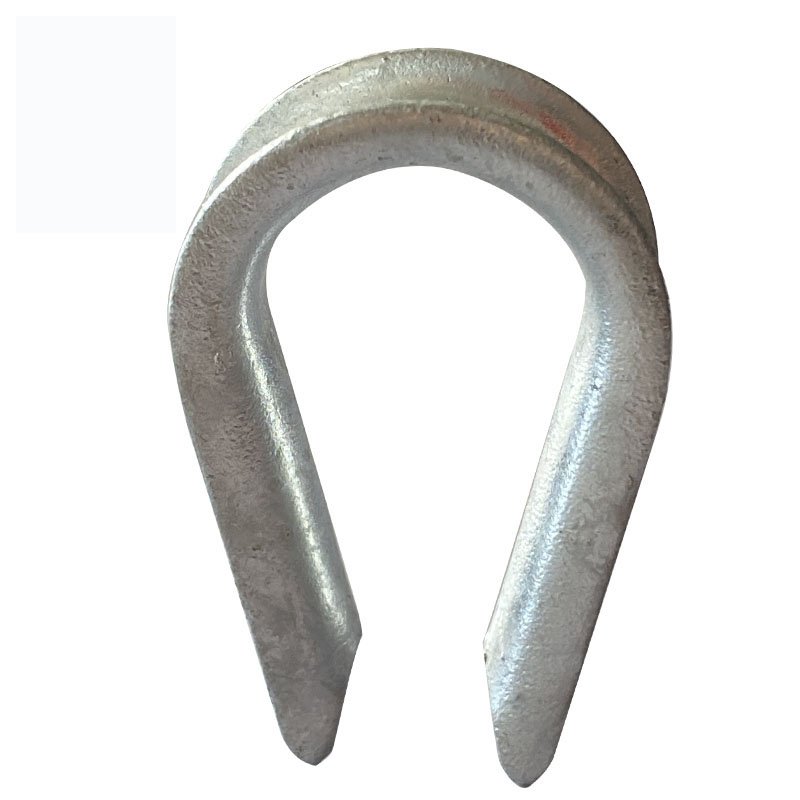

• US Type Light Duty Thimble G411
• Stamping
• Galvanized
| Diameter Rope (in.) | Dimensions(in.) | |||||||
| A | B | C | D | E | F | G | H | |
| 1/8" | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 |
| 3/16" | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 |
| 1/4" | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 |
| 5/16" | 2.13 | 1.5 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 |
| 3/8" | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 |
| 1/2" | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 |
| 5/8" | 3.5 | 2.5 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 |
| 3/4" | 3.75 | 2.5 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 |
| 7/8" | 5 | 3.5 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 |
| 1" | 5.69 | 4.25 | 3.75 | 2.5 | 1.39 | 1.06 | 0.16 | 0.41 |
| 1-1/8"-1-1/4" | 6.25 | 4.25 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.5 |
US Type G411 Wire Rope Thimble, light-duty stamped carbon steel fitting. It protects wire rope loops from abrasion, widely matched with wire rope clips for garden railings, greenhouse tension cables, small signage, light solar brackets, inland boat mooring and light rigging projects.Limitations: Galvanized steel for light static use only. Not for heavy lifting, long-term coastal salt corrosion or heavy vibration.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
DIN 6899A Wire Rope Thimble, made of high-quality carbon steel with galvanized finish. Designed to protect wire ropes from wear, kinks and bending damage. Conforms to DIN 6899A standard, suitable for general rigging, lifting and light-duty industrial applications.
DIN 6899B standard wire rope thimble made of premium carbon steel with galvanized surface. It effectively reduces friction and bending wear of wire rope, improving service safety and service life. Widely used for lifting, rigging and mechanical connection.
