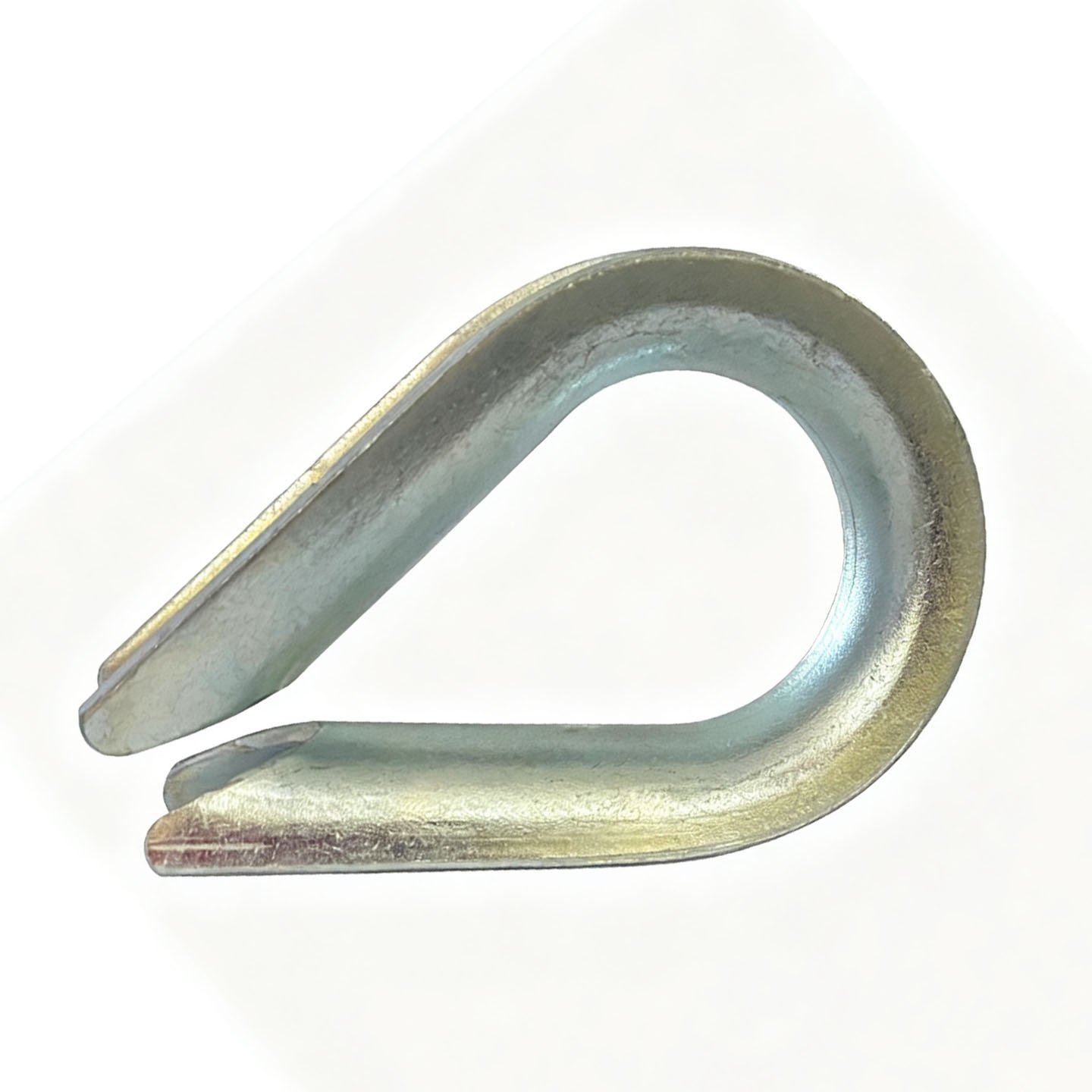

The DIN6899B Wire Rope Thimble supports the eye of a wire rope assembly and helps reduce wear at the connection. Select the groove size and overall dimensions to match the rope and mating hardware.
The DIN6899B Wire Rope Thimble supports the eye of a wire rope assembly and helps reduce wear at the connection. Select the groove size and overall dimensions to match the rope and mating hardware.
![]()
![]()
| Diameter Rope (mm.) | Dimensions(mm) | |||
| a | L | C | S | |
| 2.5 | 3 | 19 | 12 | 1.6 |
| 3.5 | 4 | 21 | 13 | 1.6 |
| 4 | 5 | 23 | 14 | 1.9 |
| 5 | 6 | 25 | 16 | 2.4 |
| 6 | 7 | 28 | 18 | 2.4 |
| 7 | 8 | 32 | 20 | 2.8 |
| 9 | 10 | 38 | 24 | 3.1 |
| 11 | 12 | 45 | 28 | 3.3 |
| 13 | 13 | 48 | 30 | 3.3 |
| 13 | 14 | 51 | 32 | 3.7 |
| 15 | 16 | 58 | 36 | 3.8 |
| 16 | 18 | 64 | 40 | 4.7 |
| 17 | 17 | 61 | 38 | 4.7 |
| 18 | 20 | 72 | 45 | 5.7 |
| 20 | 22 | 80 | 50 | 5.7 |
| 22 | 24 | 90 | 56 | 6.5 |
| 24 | 26 | 99 | 62 | 6.8 |
| 26 | 28 | 112 | 70 | 8 |
| 28 | 30 | 120 | 75 | 8 |
| 30 | 32 | 128 | 80 | 8 |
| 32 | 34 | 152 | 95 | 8.5 |
| 34 | 36 | 160 | 100 | 8.5 |
| 36 | 38 | 176 | 110 | 8.5 |
| 38 | 40 | 184 | 115 | 10.5 |
| 40 | 42 | 192 | 120 | 10.5 |
| 42 | 45 | 240 | 150 | 10.5 |
Wire rope eye protection and compatible connection assemblies.
To request DIN6899B Wire Rope Thimble, please specify rope diameter, groove dimensions, material and surface finish. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
English: These DIN6899B wire rope thimbles fit my cables perfectly. Smooth groove, no burrs. Galvanized surface resists rust well, great for outdoor rigging work. Will buy again.
