• BS464 Wire Rope Thimble
• Stamping
• Galvanized

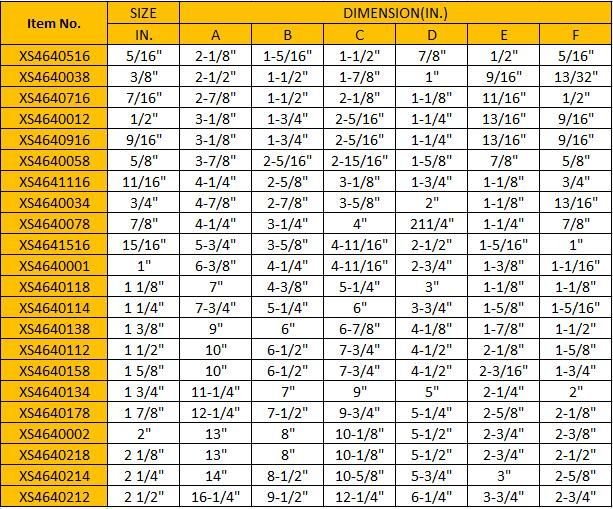

| SIZE | DIMENSION(IN.) | |||||
| IN. | A | B | C | D | E | F |
| 5/16" | 2-1/8" | 1-5/16" | 1-1/2" | 7/8" | 1/2" | 5/16" |
| 3/8" | 2-1/2" | 1-1/2" | 1-7/8" | 1" | 9/16" | 13/32" |
| 7/16" | 2-7/8" | 1-1/2" | 2-1/8" | 1-1/8" | 11/16" | 1/2" |
| 1/2" | 3-1/8" | 1-3/4" | 2-5/16" | 1-1/4" | 13/16" | 9/16" |
| 9/16" | 3-1/8" | 1-3/4" | 2-5/16" | 1-1/4" | 13/16" | 9/16" |
| 5/8" | 3-7/8" | 2-5/16" | 2-15/16" | 1-5/8" | 7/8" | 5/8" |
| 11/16" | 4-1/4" | 2-5/8" | 3-1/8" | 1-3/4" | 1-1/8" | 3/4" |
| 3/4" | 4-7/8" | 2-7/8" | 3-5/8" | 2" | 1-1/8" | 13/16" |
| 7/8" | 4-1/4" | 3-1/4" | 4" | 211/4" | 1-1/4" | 7/8" |
| 15/16" | 5-3/4" | 3-5/8" | 4-11/16" | 2-1/2" | 1-5/16" | 1" |
| 1" | 6-3/8" | 4-1/4" | 4-11/16" | 2-3/4" | 1-3/8" | 1-1/16" |
| 1 1/8" | 7" | 4-3/8" | 5-1/4" | 3" | 1-1/8" | 1-1/8" |
| 1 1/4" | 7-3/4" | 5-1/4" | 6" | 3-3/4" | 1-5/8" | 1-5/16" |
| 1 3/8" | 9" | 6" | 6-7/8" | 4-1/8" | 1-7/8" | 1-1/2" |
| 1 1/2" | 10" | 6-1/2" | 7-3/4" | 4-1/2" | 2-1/8" | 1-5/8" |
| 1 5/8" | 10" | 6-1/2" | 7-3/4" | 4-1/2" | 2-3/16" | 1-3/4" |
| 1 3/4" | 11-1/4" | 7" | 9" | 5" | 2-1/4" | 2" |
| 1 7/8" | 12-1/4" | 7-1/2" | 9-3/4" | 5-1/4" | 2-5/8" | 2-1/8" |
| 2" | 13" | 8" | 10-1/8" | 5-1/2" | 2-3/4" | 2-3/8" |
| 2 1/8" | 13" | 8" | 10-1/8" | 5-1/2" | 2-3/4" | 2-1/2" |
| 2 1/4" | 14" | 8-1/2" | 10-5/8" | 5-3/4" | 3" | 2-5/8" |
| 2 1/2" | 16-1/4" | 9-1/2" | 12-1/4" | 6-1/4" | 3-3/4" | 2-3/4" |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
DIN 6899A Wire Rope Thimble, made of high-quality carbon steel with galvanized finish. Designed to protect wire ropes from wear, kinks and bending damage. Conforms to DIN 6899A standard, suitable for general rigging, lifting and light-duty industrial applications.
DIN 6899B standard wire rope thimble made of premium carbon steel with galvanized surface. It effectively reduces friction and bending wear of wire rope, improving service safety and service life. Widely used for lifting, rigging and mechanical connection.
G411 Wire Rope Thimble is manufactured with high-quality carbon steel and galvanized finish. This standard thimble protects wire rope from friction, bending and abrasion, greatly extending service life. Suitable for lifting, rigging and general industrial applications.
Heavy duty ratchet load binder, drop forged steel construction with high tensile strength. Labor-saving ratchet tightening design, easy to operate and fast tensioning. Electro-galvanized surface for rust & corrosion resistance. Widely used for truck cargo binding, transportation fixing and chain tensioning. Factory direct supply, complete sizes and OEM available.
Drop forged alloy steel lever type load binder, US standard with double grab hooks. Labor-saving lever design for fast chain tensioning & cargo securing. Sizes 1/2''-5/8'', WLL 13000-260000lbs. Red powder coated anti-rust finish, CE certified. Widely used for truck lashing, marine transport, construction rigging. Factory direct supply, custom color & packing available, stable monthly output.
EN818-2 Grade 80 Alloy Lifting Chain is made of premium alloy steel with professional heat treatment. Manufactured strictly according to EN818-2 standard, featuring high tensile strength, wear resistance and stable load capacity. Each chain is proof tested with strict quality control, safe for overhead lifting and chain sling assembly. Widely used in construction, crane hoisting, mining and industrial heavy rigging. Various sizes available, OEM service is acceptable.
6×37 steel wire rope adopts high tensile carbon steel material with optimized strand structure. It owns excellent flexibility, smooth surface, good fatigue resistance and stable load capacity. Multiple surface options including bright, electro galvanized and hot dipped galvanized provide great rust and corrosion resistance. Perfect for complex hoisting, crane equipment, engineering machinery, mining, towing and heavy industrial rigging scenarios. Complete standard sizes in stock, custom length and OEM service are available.
