● G80 US Type Standard Master Link A342
● Quenched and Tempered.
● Powder coated.
● Safety Factor: 4:1.
● Forged alloy steel.
![]()

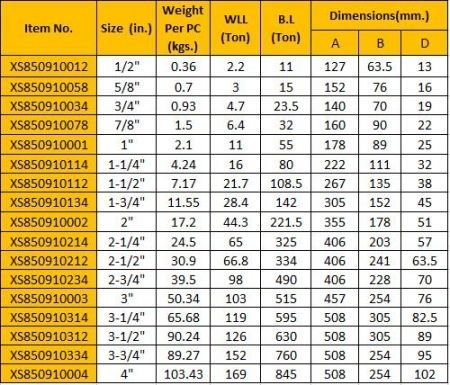

| Size(in) | Weight | wll | B.L | Dimensions(mm) | ||
| Per pc | ||||||
| (kgs) | (Ton ) | (Ton ) | A | B | D | |
| 1/2' | 0.36 | 2.2 | 11 | 127 | 63.5 | 13 |
| 5/8' | 0.7 | 3 | 15 | 152 | 76 | 16 |
| 3/4' | 0.93 | 4.7 | 23.5 | 140 | 70 | 19 |
| 7/8' | 1.5 | 6.4 | 32 | 160 | 90 | 22 |
| 1' | 2.1 | 11 | 55 | 178 | 89 | 25 |
| 1-1/4' | 4.24 | 16 | 80 | 222 | 111 | 32 |
| 1-1/2' | 7.17 | 21.7 | 108.5 | 267 | 135 | 38 |
| 1-3/4' | 11.55 | 28.4 | 142 | 305 | 152 | 45 |
| 2' | 17.2 | 44.3 | 221.5 | 406 | 178 | 51 |
| 2-1/4' | 24.5 | 65 | 325 | 406 | 203 | 57 |
| 2-1/2' | 30.9 | 66.8 | 334 | 406 | 241 | 63.5 |
| 2-3/4' | 39.5 | 98 | 490 | 457 | 228 | 70 |
| 3' | 50.34 | 103 | 515 | 508 | 254 | 76 |
| 3-1/4' | 65.68 | 119 | 595 | 508 | 305 | 82.5 |
| 3-1/2' | 90.24 | 126 | 630 | 508 | 305 | 89 |
| 3-3/4' | 89.27 | 152 | 760 | 508 | 254 | 95 |
| 4' | 103.43 | 169 | 845 | 508 | 254 | 102 |
