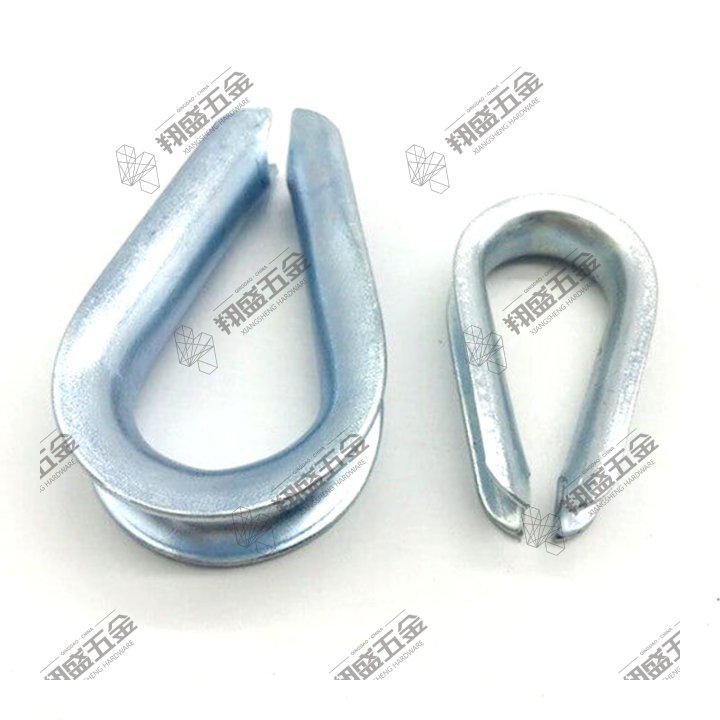

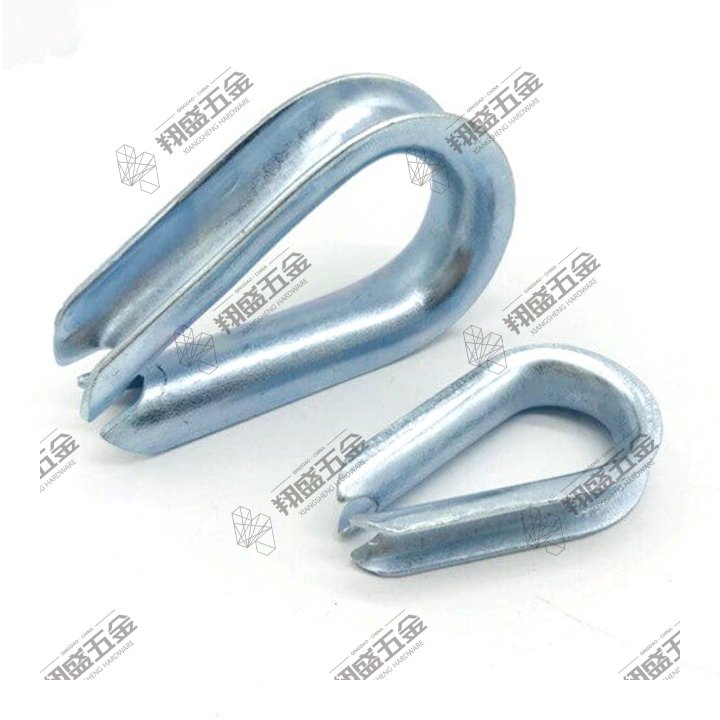

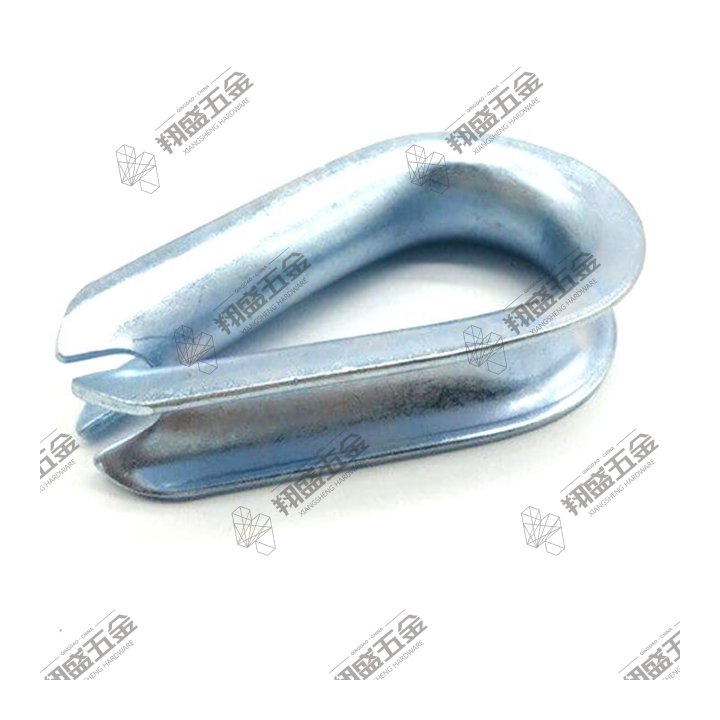

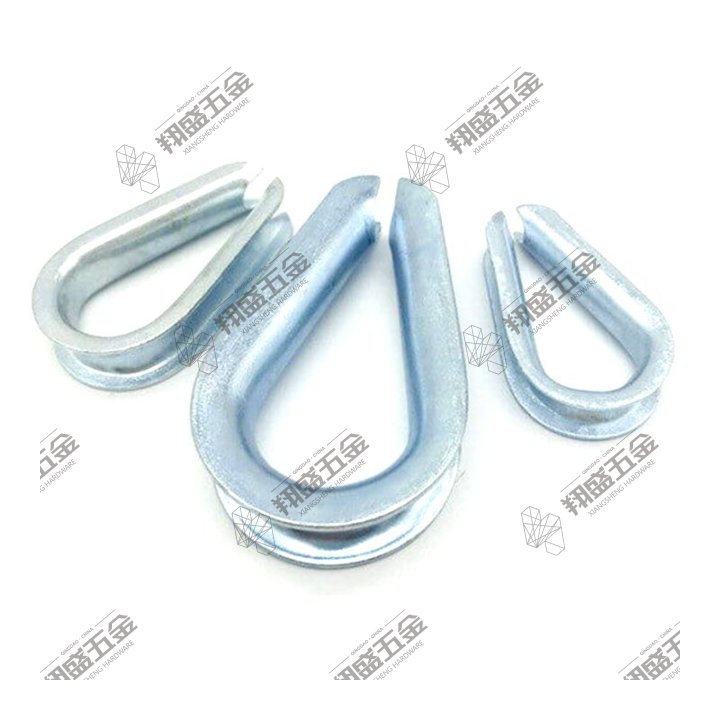

• DIN6899A Wire Rope Thimble
• Stamping
• Galvanized

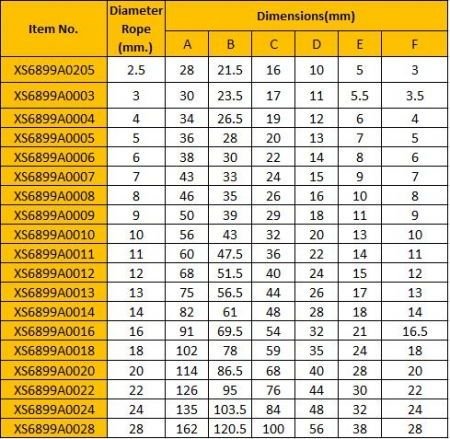

| Diameter Rope (mm.) | Dimensions(mm) | |||||
| A | B | C | D | E | F | |
| 2.5 | 28 | 21.5 | 16 | 10 | 5 | 3 |
| 3 | 30 | 23.5 | 17 | 11 | 5.5 | 3.5 |
| 4 | 34 | 26.5 | 19 | 12 | 6 | 4 |
| 5 | 36 | 28 | 20 | 13 | 7 | 5 |
| 6 | 38 | 30 | 22 | 14 | 8 | 6 |
| 7 | 43 | 33 | 24 | 15 | 9 | 7 |
| 8 | 46 | 35 | 26 | 16 | 10 | 8 |
| 9 | 50 | 39 | 29 | 18 | 11 | 9 |
| 10 | 56 | 43 | 32 | 20 | 13 | 10 |
| 11 | 60 | 47.5 | 36 | 22 | 14 | 11 |
| 12 | 68 | 51.5 | 40 | 24 | 15 | 12 |
| 13 | 75 | 56.5 | 44 | 26 | 17 | 13 |
| 14 | 82 | 61 | 48 | 28 | 18 | 14 |
| 16 | 91 | 69.5 | 54 | 32 | 21 | 16.5 |
| 18 | 102 | 78 | 59 | 35 | 24 | 18 |
| 20 | 114 | 86.5 | 68 | 40 | 28 | 20 |
| 22 | 126 | 95 | 76 | 44 | 30 | 22 |
| 24 | 135 | 103.5 | 84 | 48 | 32 | 24 |
| 28 | 162 | 120.5 | 100 | 56 | 38 | 28 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
DIN 6899B standard wire rope thimble made of premium carbon steel with galvanized surface. It effectively reduces friction and bending wear of wire rope, improving service safety and service life. Widely used for lifting, rigging and mechanical connection.
This 6×7 and 6×9W steel wire rope is made of high quality carbon steel with compact strand construction. It features stable structure, good flexibility, smooth surface and high tensile strength. Available in bright, electro galvanized and hot dipped galvanized types for superior rust and corrosion resistance. Suitable for general hoisting, towing, bundling, machinery equipment, engineering rigging and daily industrial applications. Complete specifications are available, custom length and OEM service are supported.
