Steel Wire Rope 6X37

Product Attributes

Wire rope structure: 6X37
Standard: GB/T 20118-2006
Certificates: ISO/CE
Size: All / Different Size Available
Sample: Free
Package: Carton/Gunny bag/Pallet / As customer’s requirements.

INQUIRE NOW

ADD TO CART

Product Details
[ 01 ]
Product Reviews
[ 02 ]
Leave a Message
[ 03 ]
Related Products
[ 04 ]

Product Details

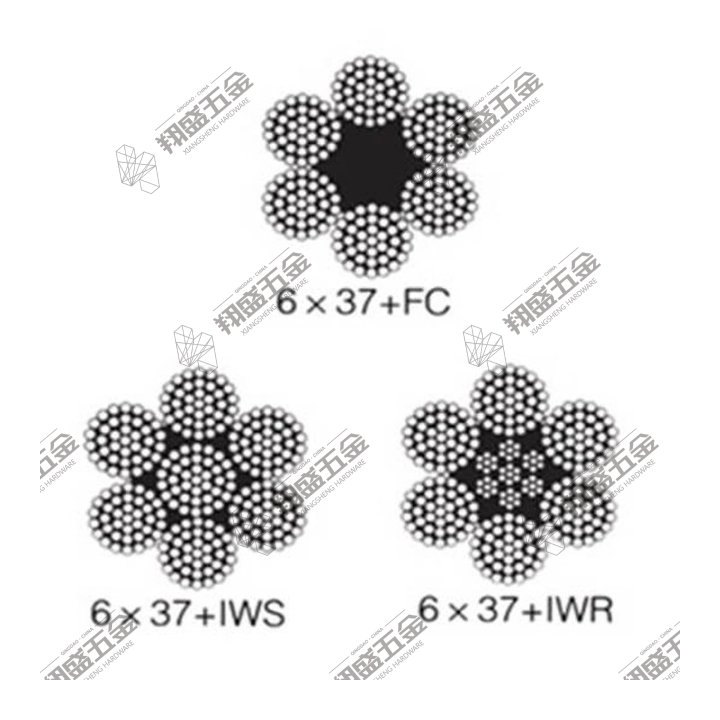

• 6×37+FC 6×37+IWS 6×37+IWR
• Main application: Various equipment for derricking,lfting and drawing

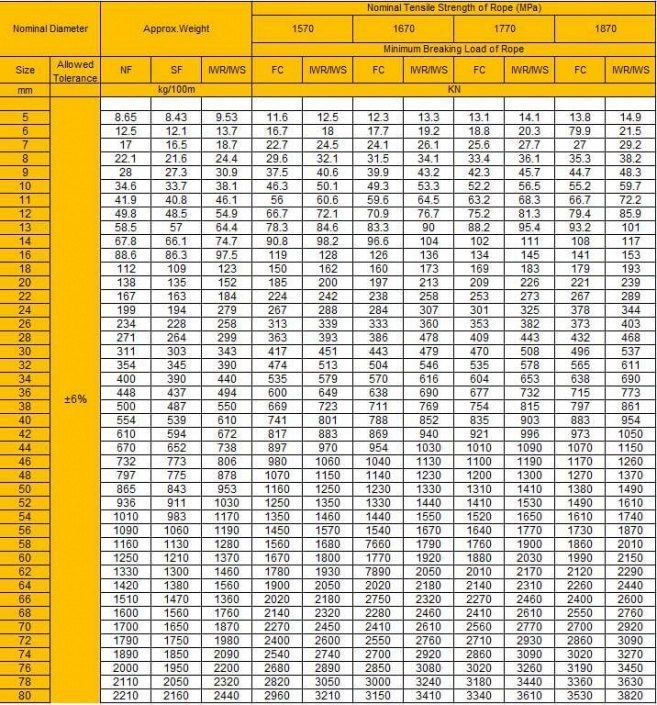

TABLE PARAMETER

Nominal Tensile Strength of Rope (MPa)
Nominal Diameter		Approx. Weight			1570		1670		1770		1870
Size	Allowed Tolerance	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
5	±6%	8.65	8.43	9.53	11.6	12.5	12.3	13.3	13.1	14.1	13.8	14.9
6	±6%	12.5	12.1	13.7	16.7	18	17.7	19.2	18.8	20.3	19.9	21.5
7	±6%	17	16.5	18.7	22.7	24.5	24.1	26.1	25.6	27.7	27	29.2
8	±6%	22.1	21.6	24.4	29.6	32.1	31.5	34.1	33.4	36.1	35.3	38.2
9	±6%	28	27.3	30.9	37.5	40.6	39.9	43.2	42.3	45.7	44.7	48.3
10	±6%	34.6	33.7	38.1	46.3	50.1	49.3	53.3	52.2	56.5	55.2	59.7
11	±6%	41.9	40.8	46.1	56	60.6	59.6	64.5	63.2	68.3	66.7	72.2
12	±6%	49.8	48.5	54.9	66.7	72.1	70.9	76.6	75	81.3	79.4	85.9
13	±6%	58.5	57	64.4	78.3	84.6	83.3	90	88.7	95.4	93.2	101
14	±6%	67.8	66.1	74.7	90.8	98.2	96.6	104	102	110	108	117
16	±6%	88.6	86.3	97.5	119	128	126	136	134	145	141	153
18	±6%	112	109	123	150	162	160	173	169	183	179	193
20	±6%	138	135	152	185	200	197	213	209	226	221	239
22	±6%	167	163	184	224	242	238	258	253	273	267	289
24	±6%	199	194	219	267	288	284	307	301	325	318	344
26	±6%	234	228	258	313	339	333	360	353	382	373	403
28	±6%	271	264	299	363	393	386	418	409	443	432	468
30	±6%	311	303	343	417	451	443	479	468	508	496	537
32	±6%	354	345	390	474	513	504	546	535	578	565	611
34	±6%	400	390	440	535	579	570	616	604	654	638	690
36	±6%	448	437	494	600	649	638	690	677	732	715	773
38	±6%	500	487	550	669	723	711	769	754	815	797	861
40	±6%	554	539	610	741	801	788	852	835	903	883	954
42	±6%	610	594	672	817	883	869	940	921	996	973	1050
44	±6%	670	652	738	897	970	954	1030	1010	1090	1070	1150
46	±6%	732	713	806	980	1060	1040	1130	1110	1200	1170	1260
48	±6%	797	775	878	1070	1150	1140	1230	1200	1300	1270	1370
50	±6%	865	843	953	1160	1250	1230	1330	1300	1410	1380	1490
52	±6%	936	911	1030	1250	1350	1330	1440	1410	1520	1490	1610
54	±6%	1010	983	1100	1350	1460	1440	1550	1520	1640	1610	1740
56	±6%	1090	1060	1190	1450	1570	1540	1670	1630	1780	1740	1890
58	±6%	1160	1130	1270	1560	1680	1650	1790	1750	1900	1860	2010
60	±6%	1240	1210	1360	1670	1800	1770	1920	1880	2040	2000	2150
62	±6%	1330	1300	1460	1790	1930	1900	2060	2020	2190	2140	2300
64	±6%	1420	1380	1560	1920	2070	2040	2210	2170	2350	2300	2460
66	±6%	1510	1470	1660	2060	2220	2190	2370	2330	2540	2490	2660
68	±6%	1600	1560	1770	2200	2380	2350	2540	2500	2730	2680	2860
70	±6%	1700	1660	1870	2350	2540	2510	2710	2670	2930	2880	3090
72	±6%	1790	1750	1990	2500	2700	2660	2880	2830	3120	3060	3260
74	±6%	1890	1850	2100	2660	2870	2830	3060	3000	3300	3240	3450
76	±6%	2000	1950	2220	2840	3060	3020	3260	3200	3530	3460	3680
78	±6%	2110	2060	2340	3020	3250	3210	3470	3400	3760	3690	3920
80	±6%	2230	2190	2470	3200	3440	3400	3690	3630	4010	3950	4260
