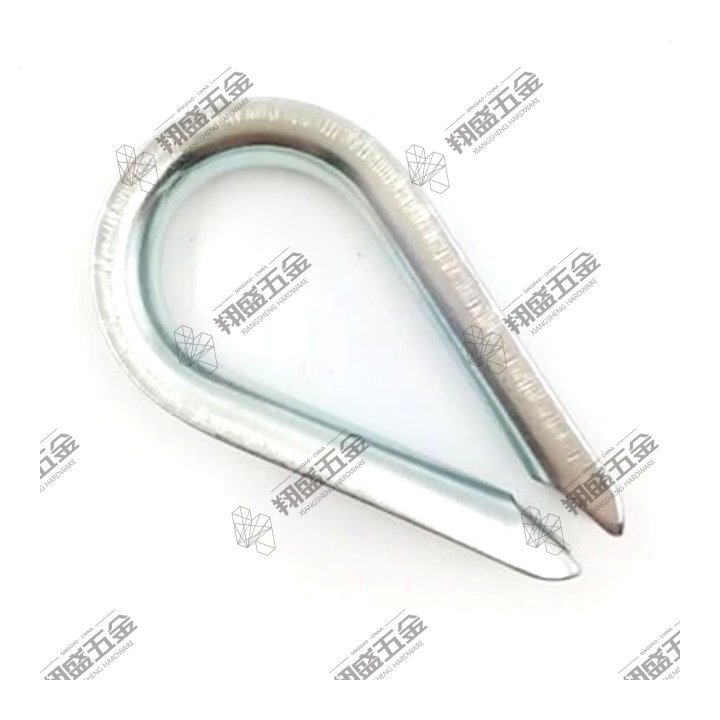

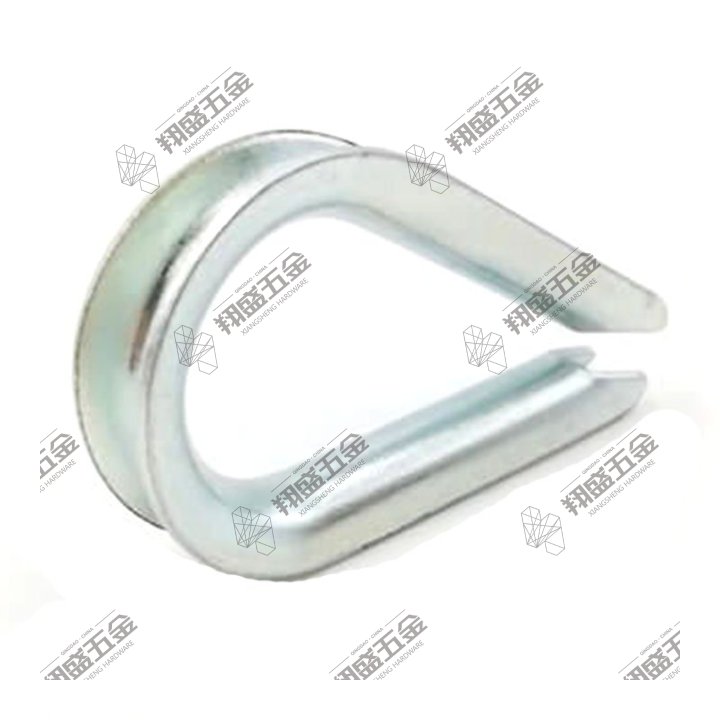

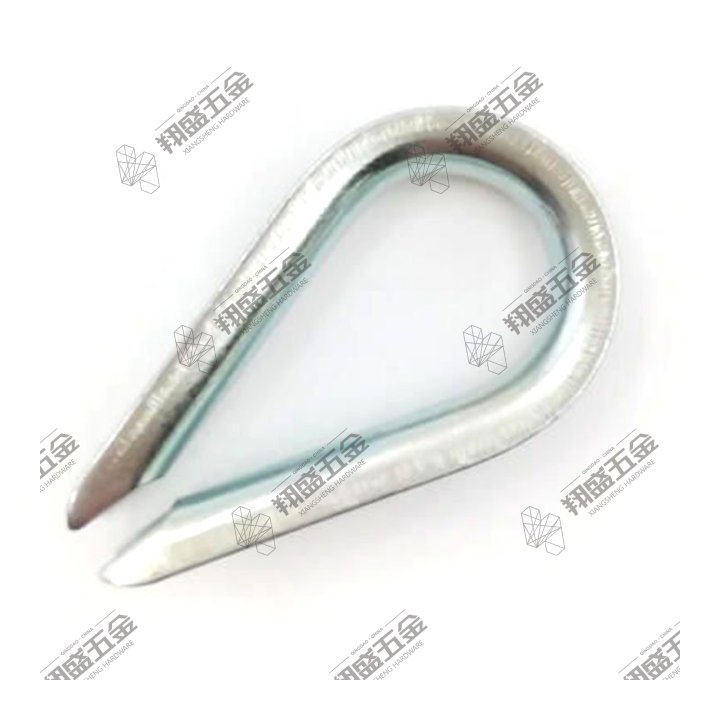

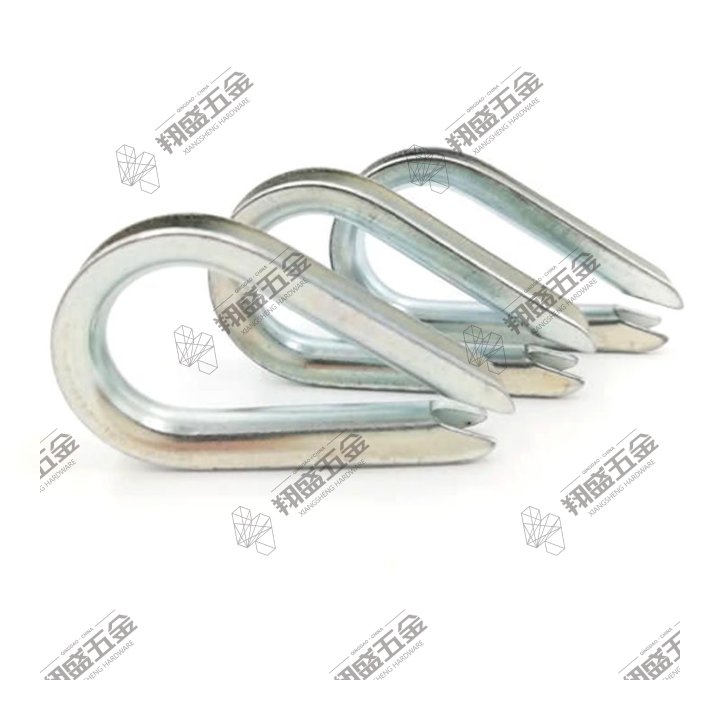

• US Type Light Duty Thimble G411
• Stamping
• Galvanized

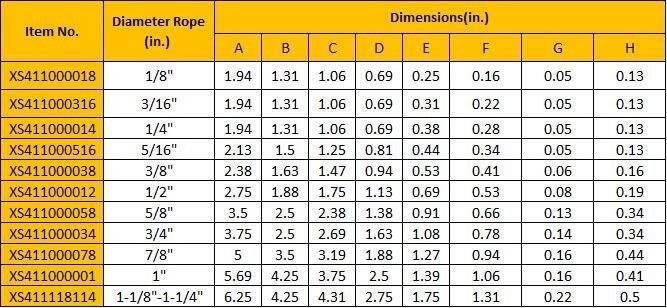

| Diameter Rope (in.) | Dimensions(in.) | |||||||
| A | B | C | D | E | F | G | H | |
| 1/8" | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 |
| 3/16" | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 |
| 1/4" | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 |
| 5/16" | 2.13 | 1.5 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 |
| 3/8" | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 |
| 1/2" | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 |
| 5/8" | 3.5 | 2.5 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 |
| 3/4" | 3.75 | 2.5 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 |
| 7/8" | 5 | 3.5 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 |
| 1" | 5.69 | 4.25 | 3.75 | 2.5 | 1.39 | 1.06 | 0.16 | 0.41 |
| 1-1/8"-1-1/4" | 6.25 | 4.25 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.5 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
DIN 6899A Wire Rope Thimble, made of high-quality carbon steel with galvanized finish. Designed to protect wire ropes from wear, kinks and bending damage. Conforms to DIN 6899A standard, suitable for general rigging, lifting and light-duty industrial applications.
DIN 6899B standard wire rope thimble made of premium carbon steel with galvanized surface. It effectively reduces friction and bending wear of wire rope, improving service safety and service life. Widely used for lifting, rigging and mechanical connection.
