[ DIN Standard Link Chain ]

DIN5685 Link Chain

Product Attributes

Material: Carbon Steel
Surface: Galvanized
Standard: Din
Certificates: ISO/CE
Size: All / Different Size Available
Sample: Free
Package: Carton/Gunny bag/Pallet / As customer’s requirements.

INQUIRE NOW

ADD TO CART

Product Details
[ 01 ]
Product Reviews
[ 02 ]
Leave a Message
[ 03 ]
Related Products
[ 04 ]

Product Details

• DIN5685 Link Chain
• Meets Din standard
• Using for lashing, towing, logging NOT FOR LIFTING OVER HEAD.

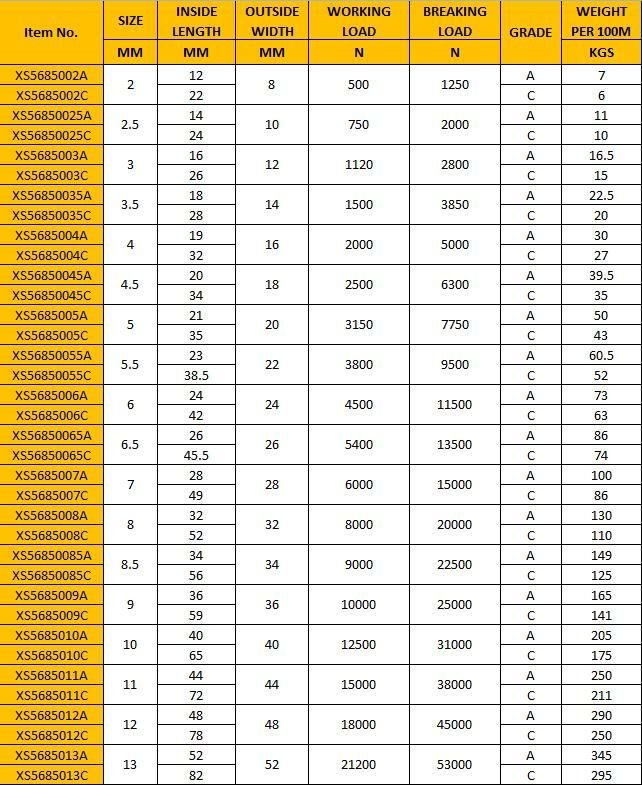

TABLE PARAMETER

SIZE d(MM)	INSIDE LENGTH t(MM)	OUTSIDE WIDTH b(MM)	WEIGHT PER100M(KG)	TEST LOAD(N)	BREAKING LOAD(N)	TYPE OF LINK
2	12	8	17	500	1250	A
2	22	8	26	500	1250	C
2.5	14	10	11	750	2000	A
2.5	24	10	10	750	2000	C
3	16	12	16.5	1120	2800	A
3	26	12	15	1120	2800	C
3.5	18	14	22.5	1500	3850	A
3.5	28	14	20	1500	3850	C
4	19	16	30	2000	5000	A
4	32	16	27	2000	5000	C
4.5	20	18	39.5	2500	6300	A
4.5	34	18	35	2500	6300	C
5	21	20	50	3105	7750	A
5	35	20	43	3105	7750	C
5.5	23	22	60.5	3800	9500	A
5.5	38.5	22	52	3800	9500	C
6	24	24	73	4500	11500	A
6	42	24	63	4500	11500	C
6.5	26	26	86	5400	13500	A
6.5	45.5	26	74	5400	13500	C
7	28	28	100	6000	15000	A
7	49	28	86	6000	15000	C
8	32	32	130	8000	20000	A
8	52	32	110	8000	20000	C
8.5	34	34	149	9000	22500	A
8.5	56	34	125	9000	22500	C
9	36	36	165	10000	25000	A
9	59	36	141	10000	25000	C
10	40	40	205	12500	31000	A
10	65	40	175	12500	31000	C
11	44	44	250	15000	38000	A
11	72	44	211	15000	38000	C
12	48	48	290	18000	45000	A
12	78	48	255	18000	45000	C
13	52	52	345	21200	53000	A
13	82	52	295	21200	53000	C
