• DIN763 Long Link Chain
• Meets Din standard
• Using for lashing, towing, logging NOT FOR LIFTING OVER HEAD.

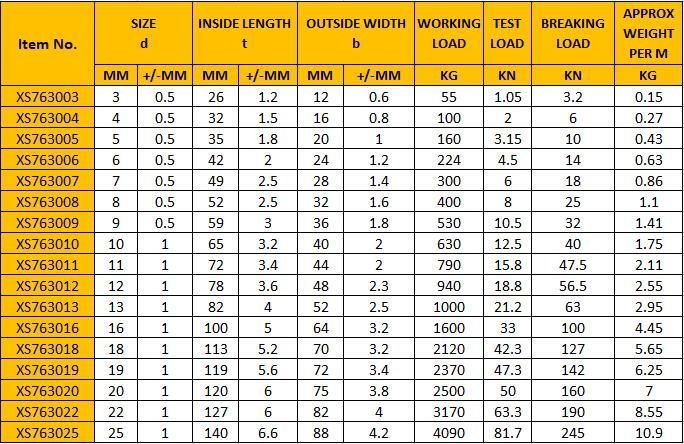

| SIZE d - MM | SIZE d - +/-MM | INSIDE LENGTH t - MM | INSIDE LENGTH t - +/-MM | OUTSIDE WIDTH b - MM | OUTSIDE WIDTH b - +/-MM | WORKING LOAD - KG | TEST LOAD - KN | BREAKING LOAD - KN | APPROX WEIGHT PER M - KG |
| 3 | 0.5 | 26 | 1.2 | 12 | 0.6 | 55 | 1.05 | 3.2 | 0.15 |
| 4 | 0.5 | 32 | 1.5 | 16 | 0.8 | 100 | 2 | 6 | 0.27 |
| 5 | 0.5 | 35 | 1.8 | 20 | 1 | 160 | 3.15 | 10 | 0.43 |
| 6 | 0.5 | 42 | 2 | 24 | 1.2 | 224 | 4.5 | 14 | 0.63 |
| 7 | 0.5 | 49 | 2.5 | 28 | 1.4 | 300 | 6 | 18 | 0.86 |
| 8 | 0.5 | 52 | 2.5 | 32 | 1.6 | 400 | 8 | 25 | 1.1 |
| 9 | 0.5 | 59 | 3 | 36 | 1.8 | 530 | 10.5 | 32 | 1.41 |
| 10 | 1 | 65 | 3.2 | 40 | 2 | 630 | 12.5 | 40 | 1.75 |
| 11 | 1 | 72 | 3.4 | 44 | 2 | 790 | 15.8 | 47.5 | 2.11 |
| 12 | 1 | 78 | 3.6 | 48 | 2.3 | 940 | 18.8 | 56.5 | 2.55 |
| 13 | 1 | 82 | 4 | 52 | 2.5 | 1000 | 21.2 | 63 | 2.95 |
| 16 | 1 | 100 | 5 | 64 | 3.2 | 1600 | 33 | 100 | 4.45 |
| 18 | 1 | 113 | 5.2 | 70 | 3.2 | 2120 | 42.3 | 127 | 5.65 |
| 19 | 1 | 119 | 5.6 | 72 | 3.4 | 2370 | 47.3 | 142 | 6.25 |
| 20 | 1 | 120 | 6 | 75 | 3.8 | 2500 | 50 | 160 | 7 |
| 22 | 1 | 127 | 6 | 82 | 4 | 3170 | 63.3 | 190 | 8.55 |
| 25 | 1 | 140 | 6.6 | 88 | 4.2 | 4090 | 81.7 | 245 | 10.9 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
G80 Clevis Slip Hook (Goat Hook) | Material: High-strength alloy steel, forged & heat-treated (quenched & tempered). WLL: 1.12T–12.5T, safety factor 4:1. Design: Horn-shaped jaw for secure chain grip, anti-slip latch, fits EN818-2 G80 chains. Certification: CE, TUV, GS approved. Application: Lifting, rigging, towing in construction, mining, logistics.
Premium DIN764 medium link chain, carbon steel and stainless steel optional. Solid welded structure, galvanized anti-rust treatment. Standard size, high strength and long service life. Suitable for fence, construction, decoration and industrial rigging. Sufficient stock, competitive price and fast delivery.
DIN766 standard short link chain is made of high-quality carbon steel or stainless steel 304/316. Adopting precise welded technology with compact link structure, uniform size and high tensile strength. Available in electro galvanized and hot dip galvanized finish for excellent anti-rust and corrosion resistance. Widely used for cargo lashing, lifting, fencing, construction, agriculture and general industrial rigging. Custom specifications and OEM service are available.
