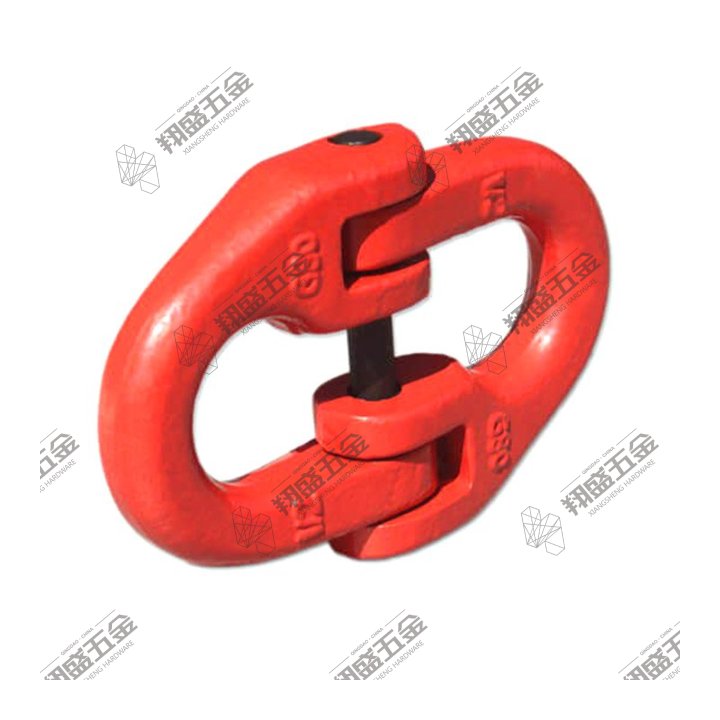

● G80 US Type Connecting Link A337
● Quenched and Tempered.
● Powder coated.
● Safety Factor: 4:1.
● Forged alloy steel.
| SIZE | W.L.L/ (LBS) | DIMENSIONS(IN) | WEIGHT EACH (LBS.) | ||||
| (MM) | (IN) | A | B | D | E | ||
| 7 | 1/4 | 3500 | 0.36 | 1.88 | 0.78 | 0.66 | 0.28 |
| 8 | 5/16 | 4500 | 0.39 | 2.13 | 0.88 | 0.69 | 0.33 |
| 10 | 3/8 | 7100 | 0.52 | 2.5 | 1.03 | 0.88 | 0.73 |
| 13 | 1/2 | 12000 | 0.64 | 3.44 | 1.44 | 1.13 | 1.67 |
| 16 | 5/8 | 18100 | 0.75 | 4.13 | 1.73 | 1.41 | 2.86 |
| 20 | 3/4 | 28300 | 0.97 | 4.94 | 2.06 | 1.63 | 5 |
| 22 | 7/8 | 34200 | 1.06 | 5.5 | 2.31 | 2 | 7.5 |
| 25 | 1 | 47700 | 1.22 | 6 | 2.5 | 2.25 | 11.03 |
| 32 | 1-1/4 | 72300 | 1.5 | 7.43 | 3.06 | 2.56 | 20.38 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
High quality 209-210 type anchor shackle, drop forged carbon steel material, heat treated for high tensile strength. Finished with hot dip galvanized to achieve excellent anti-rust and anti-corrosion effect, suitable for saltwater and outdoor harsh environment. Standard size, stable working load limit and reliable safety factor. Widely used for marine rigging, ship mooring, port hoisting, cargo fixing and various heavy duty lifting connection works. Solid structure, easy installation, durable and safe for long-term industrial use.
High performance DIN82101 Type C shackle, drop forged solid carbon steel, professionally heat treated to boost overall strength and load resistance. Adopts hot dip galvanized surface treatment, effectively against rust and corrosion in damp and harsh environments. Conforms to DIN European standard, robust pin structure for firm assembly. Features standard 6:1 safety factor, stable working load limit. Ideal for marine rigging, construction hoisting, cargo binding, vehicle towing and various heavy-duty industrial connection applications. Strict quality control guarantees safe and long-term service.
Premium G2130 Bolt-Type Anchor Shackle – Forged Alloy Steel, Heavy Duty Lifting & Rigging Shackle, Hot-Dip Galvanized, WLL 0.5T-150T, US Standard 2130 Bow Shackle for Marine, Construction & Mining
Our G2130 (2130) bolt-type anchor shackle is a US-standard heavy-duty bow shackle crafted from high-grade carbon steel body and alloy steel pin, drop-forged, quenched & tempered for maximum strength and durability. Designed with a safety bolt and cotter pin, it ensures secure connection and prevents loosening under load. Available in hot-dip galvanized (G) or self-colored (S) finishes, providing excellent corrosion resistance for harsh environments. With a safety factor of 6:1 and working load limit (WLL) ranging from 0.5 tons to 150 tons, it meets ASME B30.26 and ABS marine standards, ideal for lifting, rigging, towing, and anchoring applications in marine, construction, mining, and oil & gas industries.
