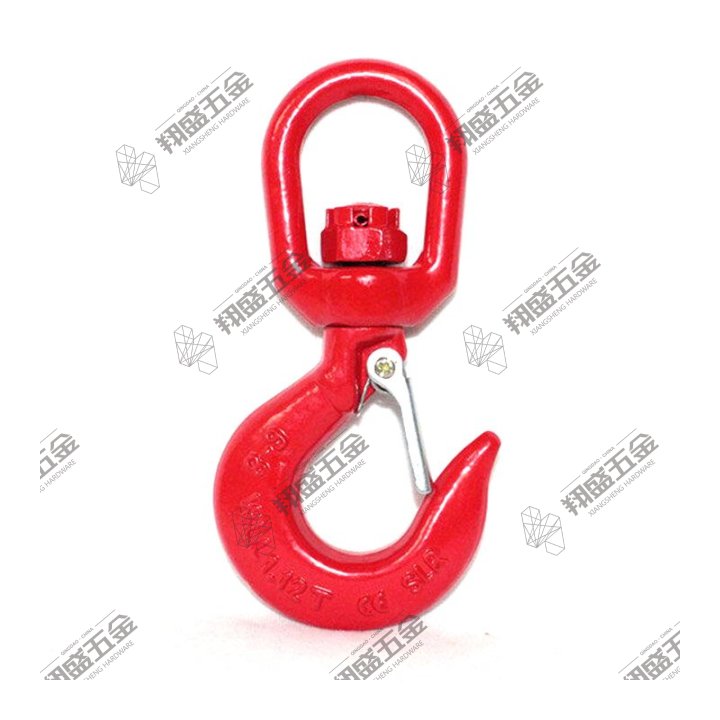

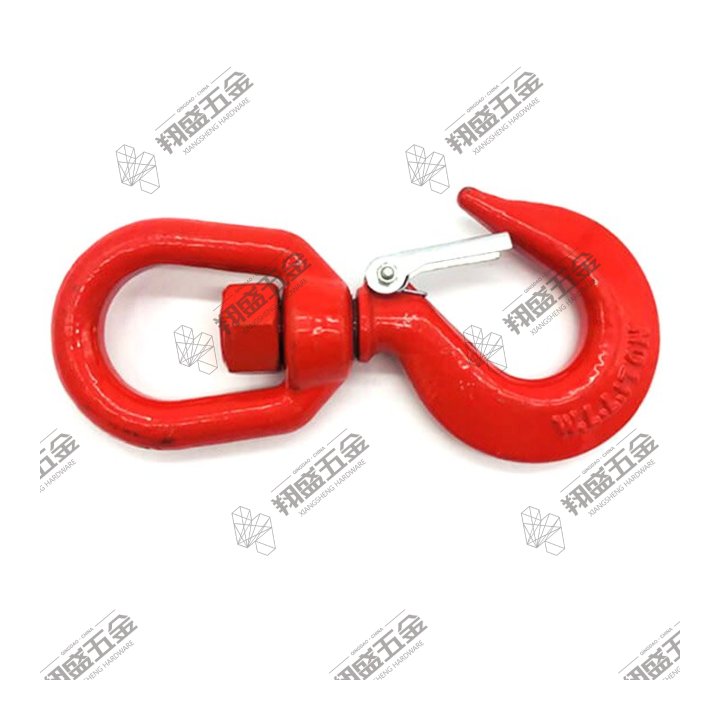

• Swivel Hoist Hook.
• Drop Forged
• Zinc Plated
• Satisfies US requirements.
• Grade 43 or Grade 70.

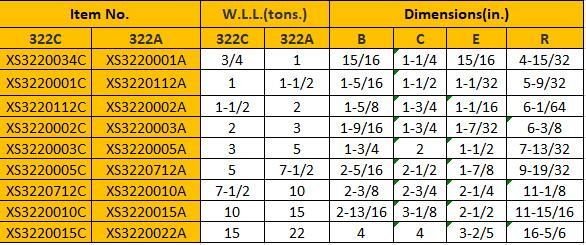

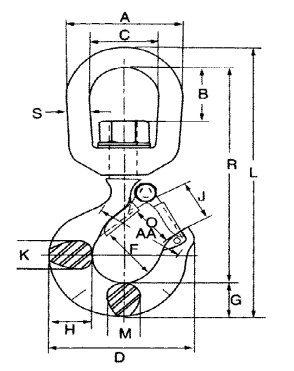

| WORKING LOAD (T) | DIMENSIONS(MM) | WEIGHT EACH (KG.) | |||||||||||||||
| CARBON 322C | ALLOY 322A | A | B | C | D | F | G | H | J | K | L | M | O | R | S | AA | |
| 3/4 | 1 | 50.8 | 20.8 | 31.8 | 72.6 | 31.8 | 19.1 | 20.6 | 23.6 | 16 | 144 | 16 | 22.6 | 115 | 9.6 | 38 | 0.34 |
| 1 | 1-1/2 | 63.5 | 31.8 | 38.1 | 80 | 35.1 | 21.3 | 23.9 | 24.6 | 18 | 170 | 18 | 23.1 | 136 | 12.7 | 51 | 0.57 |
| 1-1/2 | 2 | 76.2 | 38.1 | 44.5 | 91.2 | 38.1 | 25.4 | 29.5 | 26.9 | 22.4 | 197 | 22.4 | 25.4 | 155 | 16 | 51 | 1.02 |
| 2 | 3 | 76.2 | 38.1 | 44.5 | 101 | 41.1 | 28.7 | 33.3 | 30.2 | 23.9 | 210 | 23.9 | 27.7 | 165 | 16 | 51 | 1.17 |
| 3 | 4-1/2 | 88.9 | 41.7 | 50.8 | 123 | 50.8 | 36.6 | 41.4 | 38.1 | 33.3 | 246 | 33.3 | 34.5 | 191 | 19.1 | 63.5 | 2.15 |
| 5 | 7 | 114 | 58.2 | 63.5 | 159 | 63.5 | 46 | 52.3 | 45.2 | 42.2 | 317 | 42.2 | 40.9 | 245 | 25.4 | 76 | 4.67 |
| 7-1/2 | 11 | 127 | 30.2 | 69.9 | 192 | 76.2 | 57.2 | 66.8 | 61.2 | 47.8 | 369 | 41.4 | 52.8 | 283 | 28.7 | 102 | 7.37 |
| 10 | 15 | 143 | 63 | 79.2 | 212 | 82.5 | 65.8 | 74.7 | 66.5 | 55.6 | 409 | 49.3 | 57.7 | 305 | 31.8 | 102 | 10.65 |
| - | 22 | 180 | 95.5 | 104 | 264 | 108 | 76.2 | 88.9 | 86.6 | 68.3 | 539 | 60.5 | 76.7 | 421 | 41.4 | 127 | 22.6 |
| - | 30 | 180 | 95.5 | 104 | 346 | - | 93 | - | 102 | 72.5 | 590 | 82.6 | 459 | 38.1 | 165 | 32 | |
