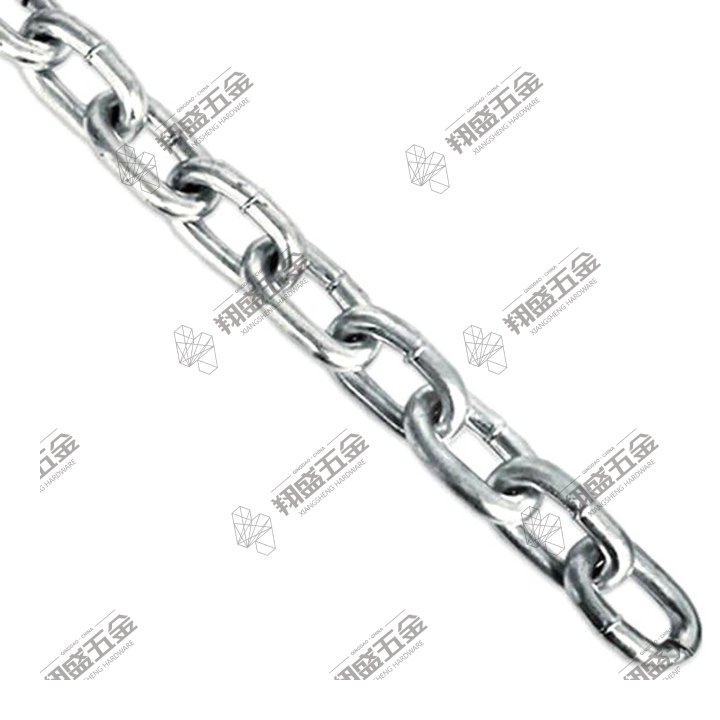

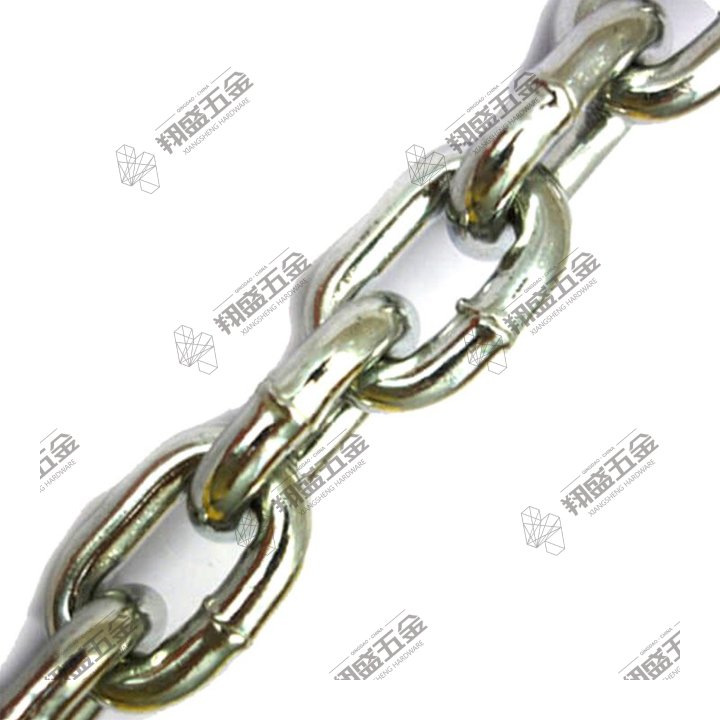

• DIN766 Short Link Chain
• Meets Din standard
• Using for lashing, towing, logging NOT FOR LIFTING OVER HEAD.

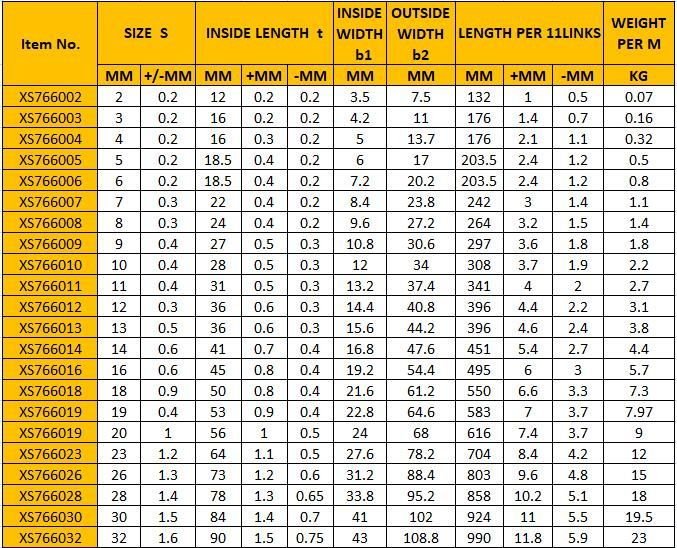

| Item No. | SIZE S - MM | SIZE S - +/-MM | INSIDE LENGTH t - MM | INSIDE LENGTH t - +MM | INSIDE LENGTH t - -MM | INSIDE WIDTH b1 - MM | OUTSIDE WIDTH b2 - MM | LENGTH PER 11LINKS - MM | LENGTH PER 11LINKS - +MM | LENGTH PER 11LINKS - -MM | WEIGHT PER M - KG |
| XS766002 | 2 | 0.2 | 12 | 0.2 | 0.2 | 3.5 | 7.5 | 132 | 1 | 0.5 | 0.07 |
| XS766003 | 3 | 0.2 | 16 | 0.2 | 0.2 | 4.2 | 11 | 176 | 1.4 | 0.7 | 0.16 |
| XS766004 | 4 | 0.2 | 16 | 0.3 | 0.2 | 5 | 13.7 | 176 | 2.1 | 1.1 | 0.32 |
| XS766005 | 5 | 0.2 | 18.5 | 0.4 | 0.2 | 6 | 17 | 203.5 | 2.4 | 1.2 | 0.5 |
| XS766006 | 6 | 0.2 | 18.5 | 0.4 | 0.2 | 7.2 | 20.2 | 203.5 | 2.4 | 1.2 | 0.8 |
| XS766007 | 7 | 0.3 | 22 | 0.4 | 0.2 | 8.4 | 23.8 | 242 | 3 | 1.4 | 1.1 |
| XS766008 | 8 | 0.3 | 24 | 0.4 | 0.2 | 9.6 | 27.2 | 264 | 3.2 | 1.5 | 1.4 |
| XS766009 | 9 | 0.4 | 27 | 0.5 | 0.3 | 10.8 | 30.6 | 297 | 3.6 | 1.8 | 1.8 |
| XS766010 | 10 | 0.4 | 28 | 0.5 | 0.3 | 12 | 34 | 308 | 3.7 | 1.9 | 2.2 |
| XS766011 | 11 | 0.4 | 31 | 0.5 | 0.3 | 13.2 | 37.4 | 341 | 4 | 2 | 2.7 |
| XS766012 | 12 | 0.3 | 36 | 0.6 | 0.3 | 14.4 | 40.8 | 396 | 4.4 | 2.2 | 3.1 |
| XS766013 | 13 | 0.5 | 36 | 0.6 | 0.3 | 15.6 | 44.2 | 396 | 4.6 | 2.4 | 3.8 |
| XS766014 | 14 | 0.6 | 41 | 0.7 | 0.4 | 16.8 | 47.6 | 451 | 5.4 | 2.7 | 4.4 |
| XS766016 | 16 | 0.6 | 45 | 0.8 | 0.4 | 19.2 | 54.4 | 495 | 6 | 3 | 5.7 |
| XS766018 | 18 | 0.9 | 50 | 0.8 | 0.4 | 21.6 | 61.2 | 550 | 6.6 | 3.3 | 7.3 |
| XS766019 | 19 | 0.4 | 53 | 0.9 | 0.4 | 22.8 | 64.6 | 583 | 7 | 3.7 | 7.97 |
| XS766019 | 20 | 1 | 56 | 1 | 0.5 | 24 | 68 | 616 | 7.4 | 3.7 | 9 |
| XS766023 | 23 | 1.2 | 64 | 1.1 | 0.5 | 27.6 | 78.2 | 704 | 8.4 | 4.2 | 12 |
| XS766026 | 26 | 1.3 | 73 | 1.2 | 0.6 | 31.2 | 88.4 | 803 | 9.6 | 4.8 | 15 |
| XS766028 | 28 | 1.4 | 78 | 1.3 | 0.65 | 33.8 | 95.2 | 858 | 10.2 | 5.1 | 18 |
| XS766030 | 30 | 1.5 | 84 | 1.4 | 0.7 | 41 | 102 | 924 | 11 | 5.5 | 19.5 |
| XS766032 | 32 | 1.6 | 90 | 1.5 | 0.75 | 43 | 108.8 | 990 | 11.8 | 5.9 | 23 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
G80 Clevis Slip Hook (Goat Hook) | Material: High-strength alloy steel, forged & heat-treated (quenched & tempered). WLL: 1.12T–12.5T, safety factor 4:1. Design: Horn-shaped jaw for secure chain grip, anti-slip latch, fits EN818-2 G80 chains. Certification: CE, TUV, GS approved. Application: Lifting, rigging, towing in construction, mining, logistics.
Premium US-style eye grab hook, drop-forged from 45# carbon steel or 40Cr alloy steel, quenched & tempered for high strength. Featured shallow throat design secures chain tightly to prevent slipping. Sizes: 1/4"–1/2"; WLL: 2,600–15,000 lbs. Surface: powder coated/electro-galvanized. Ideal for cargo lashing, towing & overhead lifting. 4:1 safety factor, ISO certified. Factory direct, OEM/ODM available.
US Type Eye Cargo Hook is drop forged with high-strength steel, heat treated for excellent toughness and load capacity. Equipped with reliable safety latch to prevent falling off. Galvanized or powder coated surface for rust resistance. Widely used in crane lifting, cargo binding, trailer towing and rigging fields. Factory direct supply, stable quality and complete specifications.
322 US Type Swivel Hook, drop forged high carbon steel with integral heat treatment. 360° free rotation prevents chain twisting and tangling. Equipped with safety latch for anti-drop protection. Galvanized surface offers great rust resistance. Widely used for crane lifting, cargo binding and rigging applications. Factory supply, complete specifications.
Certified High-Strength Alloy Steel Large Opening Eye Hook engineered for critical lifting and rigging tasks. Made of premium alloy steel with precision drop forging and heat treatment, it meets international safety standards and undergoes rigorous load testing. The no-latch design with a wide mouth enables quick and secure engagement with loads, while the eye connection offers versatile rigging options. Perfect for construction sites, mines, ports, and heavy industry environments.
