• Clevis Grab Hook.
• Drop Forged
• Zinc Plated
• Satisfies US requirements.
• Grade 43 or Grade 70.

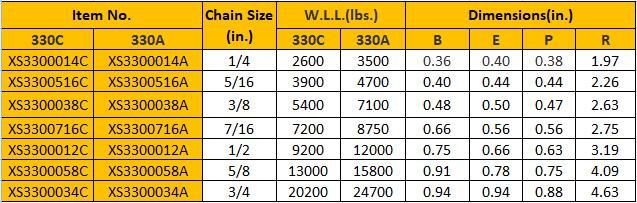

| SIZE(MM) | W.L.L/T(4:1) | DIMENSIONS(MM) | WEIGHT EACH(LBS.) | ||||
| CARBON | ALLOY | A | B | E | L | ||
| 1/4 | 2600 | 3500 | 8.5 | 25 | 9.2 | 78.5 | 0.36 |
| 5/16 | 3900 | 4700 | 10 | 30.5 | 11.2 | 93 | 0.62 |
| 3/8 | 5400 | 7100 | 13 | 35 | 12.7 | 114.5 | 1 |
| 7/16 | 7200 | 8750 | 17 | 42 | 14.5 | 126 | 1.5 |
| 1/2 | 9200 | 12000 | 19 | 47 | 17 | 144 | 2.22 |
| 5/8 | 13000 | 15800 | 23 | 56 | 20 | 177 | 4.41 |
| 3/4 | 20200 | 24700 | 24 | 66.5 | 24 | 207.5 | 6.5 |
H-330- Carbon Steek, A-330-Alloy Steel
H-330-硬钢:A-330-合金钢
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.

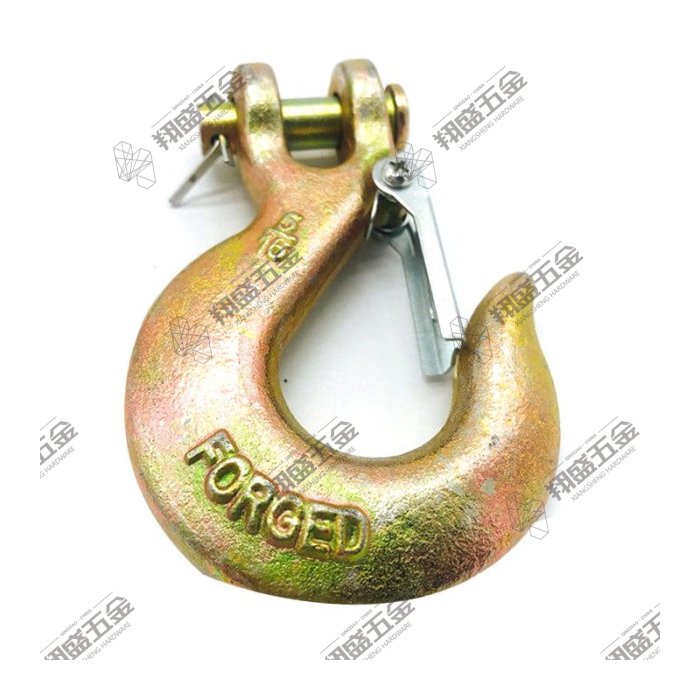

G80 Clevis Slip Hook (Goat Hook) | Material: High-strength alloy steel, forged & heat-treated (quenched & tempered). WLL: 1.12T–12.5T, safety factor 4:1. Design: Horn-shaped jaw for secure chain grip, anti-slip latch, fits EN818-2 G80 chains. Certification: CE, TUV, GS approved. Application: Lifting, rigging, towing in construction, mining, logistics.

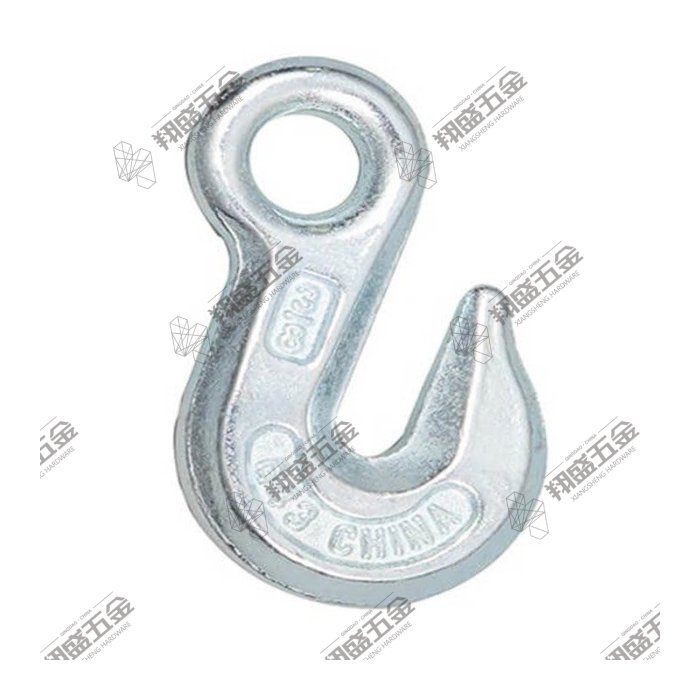

Premium US-style eye grab hook, drop-forged from 45# carbon steel or 40Cr alloy steel, quenched & tempered for high strength. Featured shallow throat design secures chain tightly to prevent slipping. Sizes: 1/4"–1/2"; WLL: 2,600–15,000 lbs. Surface: powder coated/electro-galvanized. Ideal for cargo lashing, towing & overhead lifting. 4:1 safety factor, ISO certified. Factory direct, OEM/ODM available.
US Type Eye Cargo Hook is drop forged with high-strength steel, heat treated for excellent toughness and load capacity. Equipped with reliable safety latch to prevent falling off. Galvanized or powder coated surface for rust resistance. Widely used in crane lifting, cargo binding, trailer towing and rigging fields. Factory direct supply, stable quality and complete specifications.
