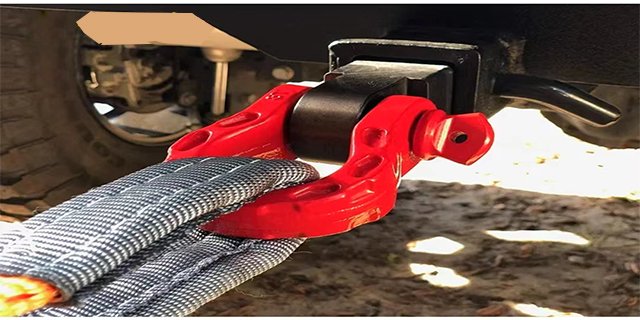

The Upgraded Heavy Duty Shackle connects compatible ropes, chains and fittings through its removable pin. Compare the body opening and pin dimensions with the mating components.
The Upgraded Heavy Duty Shackle connects compatible ropes, chains and fittings through its removable pin. Compare the body opening and pin dimensions with the mating components.
| WLL(t ) | Dimensions(mm) | Weight | |||||
| A | B | C | D | E | F | (kg) | |
| 8 | 89.89 | 70.97 | 99.83 | 25.31 | 126.44 | 46.64 | 1.20 |
| 4 | 75.5 | 60 | 85 | 19.8 | 108 | 38.5 | 0.69 |
| 2 | 58 | 46 | 68.9 | 14.4 | 85 | 32 | 0.33 |
Connection assemblies selected to the model rating and loading arrangement.
To request Upgraded Heavy Duty Shackle, please specify body opening, pin diameter, required rated capacity and surface finish. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
These upgraded heavy‑duty shackles are well built. Drop forged steel, clear WLL marking. Pin threads work smoothly. Quality is much better than regular shackles I bought before. Fast delivery, will re‑order.
The DIN 82101 D-Ring Shackle connects compatible ropes, chains and fittings through its removable pin. Compare the body opening and pin dimensions with the mating components.
Straight in-line loading only. Side loading is prohibited; not recommended for long-term overhead static hoisting.
