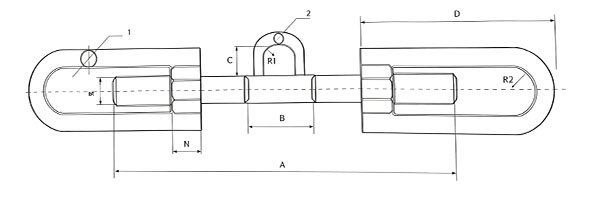

The Dee Dee Hamburg Turnbuckle adjusts the tension and effective length of a compatible wire or tie assembly. Compare the body length, thread and end configuration in the drawing.
The Dee Dee Hamburg Turnbuckle adjusts the tension and effective length of a compatible wire or tie assembly. Compare the body length, thread and end configuration in the drawing.
![]()
| THREAD | A | B | C | D | H | 1 | 2 | R1 | BREAKING LOAD(T) | REMARK |
| M24 | 400 | 75 | 35 | 210 | 22 | 16 | 12 | 15 | 13 | |
| 75 | 35 | 210 | 36 | 18 | 12 | 15 | (18) | |||
| M24 | 500 | 75 | 35 | 260 | 22 | 16 | 12 | 15 | 13 | |
| 75 | 35 | 260 | 36 | 18 | 12 | 15 | (18) | |||
| M27 | 400 | 75 | 35 | 210 | 33 | 20 | 12 | 17.5 | 20 | THE FIGURES IN BRACKETS ARE ADJUSTABLE |
| 75 | 35 | 210 | 42 | 20 | 12 | 17.5 | (25) | |||
| M27 | 500 | 75 | 35 | 260 | 33 | 20 | 12 | 17.5 | 20 | |
| 75 | 35 | 260 | 42 | 20 | 12 | 17.5 | (25) | |||
| M30 | 400 | 75 | 35 | 210 | - | - | 12 | 17.5 | - | |
| 75 | 35 | 210 | 45 | 22 | 12 | 17.5 | 25 | |||
| M30 | 500 | 75 | 35 | 260 | - | - | 12 | 17.5 | - | |
| 75 | 35 | 260 | 45 | 22 | 12 | 17.5 | 25 | |||
| M38 | 480 | 80 | 35 | 255 | 40 | 25 | 12 | 20 | 30 | |
| 80 | 35 | - | - | - | 12 | - | - |
Static cable tensioning, stays and securing arrangements.
To request Dee Dee Hamburg Turnbuckle, please specify thread diameter and pitch, body length, end fittings, adjustment range and finish. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
