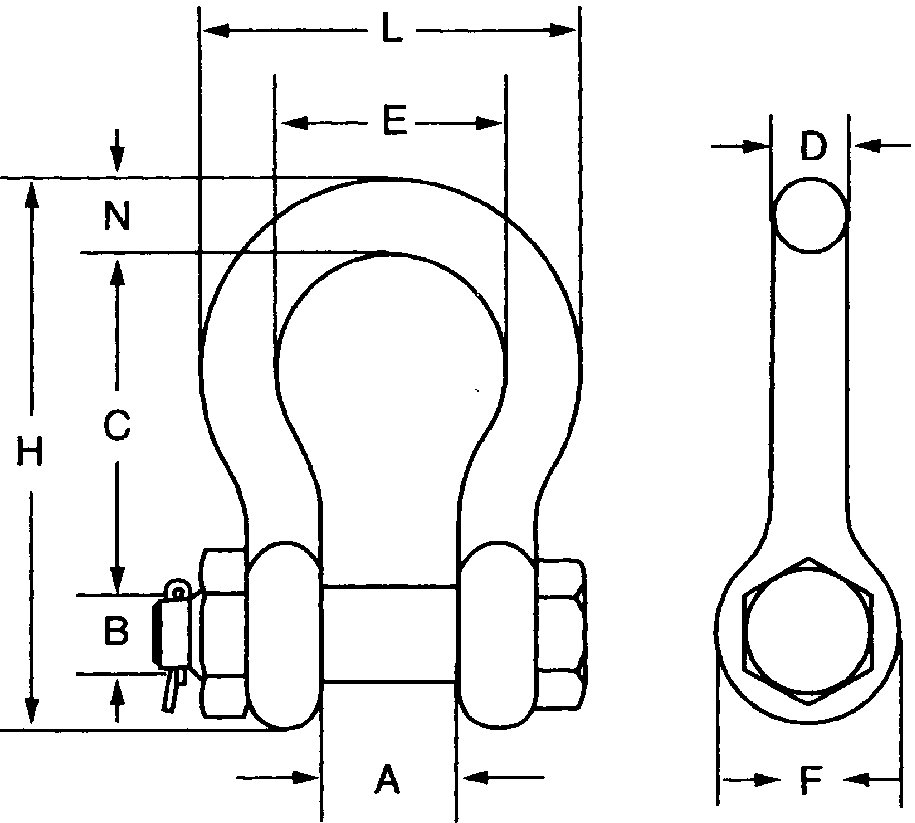

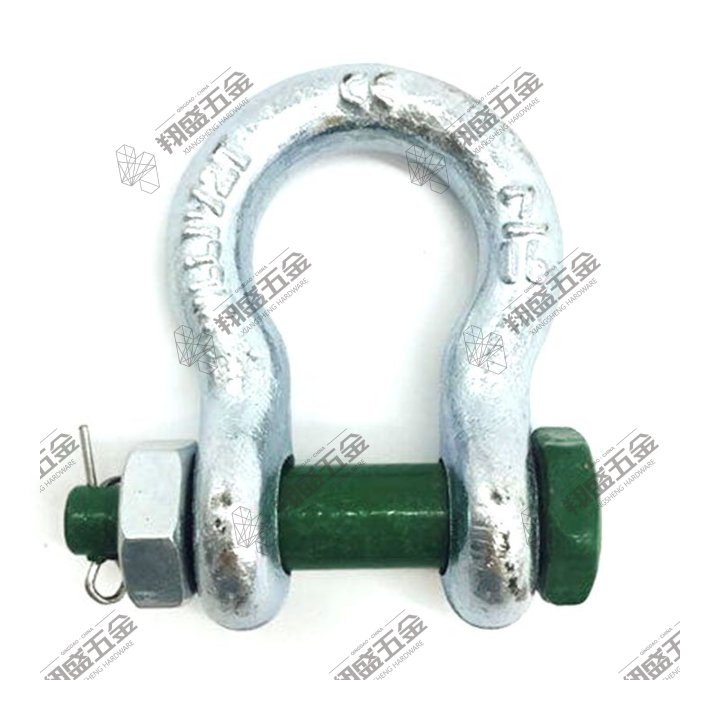

The U.S. Type Drop Forged Bolt Type Anchor Shackle G2130 connects compatible ropes, chains and fittings through its removable pin. The bolt type pin arrangement is shown in the product drawing.
Surface Finish:Electro Galvanized,Hot Dip Galvanized,Dacromet,Powder Coated

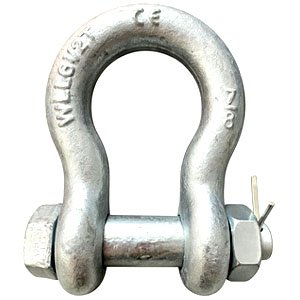

The U.S. Type Drop Forged Bolt Type Anchor Shackle G2130 connects compatible ropes, chains and fittings through its removable pin. The bolt type pin arrangement is shown in the product drawing.
![]()
![]()
| NOMINAL SIZE (IN) | WORKING LOAD LIMIT(T) | WEIGHT EACH (KG) | DIMENSIONS(MM) | TOLERANCE +/- | |||||||||
| A | B | C | D | E | F | H | L | N | G | A | |||
| 3/16 | 1/3 | 0.03 | 9.65 | 6.35 | 22.40 | 4.85 | 15.20 | 14.20 | 37.30 | 24.90 | 4.85 | 1.50 | 1.50 |
| 1/4 | 1/2 | 0.05 | 11.90 | 7.85 | 28.70 | 6.35 | 19.80 | 15.50 | 46.70 | 32.50 | 6.35 | 1.50 | 1.50 |
| 5/16 | 3/4 | 0.10 | 13.50 | 9.65 | 31.00 | 7.85 | 21.30 | 19.10 | 53.00 | 37.30 | 7.85 | 3.30 | 1.50 |
| 3/8 | 1 | 0.15 | 16.80 | 11.20 | 36.60 | 9.65 | 26.20 | 23.10 | 63.00 | 45.20 | 9.65 | 3.30 | 1.50 |
| 7/16 | 1-1/2 | 0.22 | 19.10 | 12.70 | 42.90 | 11.20 | 29.50 | 26.90 | 74.00 | 51.50 | 11.20 | 3.30 | 1.50 |
| 1/2 | 2 | 0.36 | 20.60 | 16.00 | 47.80 | 12.70 | 33.30 | 30.20 | 83.50 | 58.50 | 12.70 | 3.30 | 1.50 |
| 5/8 | 3-1/4 | 0.76 | 26.90 | 19.10 | 60.50 | 16.00 | 42.90 | 38.10 | 106.00 | 74.50 | 17.50 | 6.35 | 1.50 |
| 3/4 | 4-3/4 | 1.23 | 31.80 | 22.40 | 71.50 | 19.10 | 51.00 | 46.00 | 126.00 | 89.00 | 20.60 | 6.35 | 1.50 |
| 7/8 | 6-1/2 | 1.79 | 36.60 | 25.40 | 84.00 | 22.40 | 58.00 | 53.00 | 148.00 | 102.00 | 24.60 | 6.35 | 1.50 |
| 1 | 8-1/2 | 2.57 | 42.90 | 28.70 | 95.50 | 25.40 | 68.50 | 60.50 | 167.00 | 119.00 | 26.90 | 6.35 | 1.50 |
| 1-1/8 | 9-1/2 | 3.75 | 46.00 | 31.80 | 108.00 | 28.70 | 74.00 | 68.50 | 190.00 | 131.00 | 31.80 | 6.35 | 3.30 |
| 1-1/4 | 12 | 5.31 | 51.50 | 35.10 | 119.00 | 31.80 | 82.50 | 76.00 | 210.00 | 146.00 | 35.10 | 6.35 | 3.30 |
| 1-3/8 | 13-1/2 | 7.18 | 57.00 | 38.10 | 133.00 | 35.10 | 92.00 | 84.00 | 233.00 | 162.00 | 38.10 | 6.35 | 3.30 |
| 1-1/2 | 17 | 9.43 | 60.50 | 41.40 | 146.00 | 38.10 | 98.50 | 92.00 | 254.00 | 175.00 | 41.10 | 6.35 | 3.30 |
| 1-3/4 | 25 | 15.40 | 73.00 | 51.00 | 178.00 | 44.50 | 127.00 | 106.00 | 313.00 | 225.00 | 57.00 | 6.35 | 3.30 |
| 2 | 35 | 23.70 | 82.50 | 57.00 | 197.00 | 51.00 | 146.00 | 122.00 | 348.00 | 253.00 | 61.00 | 6.35 | 6.35 |
| 2-1/2 | 55 | 44.6 | 105.00 | 70.00 | 267.00 | 66.50 | 184.00 | 145.00 | 453.00 | 327.00 | 79.50 | 6.35 | 6.35 |
| 3 | 85 | 70 | 127.00 | 82.50 | 330.00 | 76.00 | 200.00 | 165.00 | 546.00 | 365.00 | 92.00 | 6.35 | 6.35 |
| 3-1/2 | 120 | 120 | 133.00 | 95.50 | 372.00 | 92.00 | 229.00 | 203.00 | 626.00 | 419.00 | 105.00 | 6.35 | 6.35 |
| 4 | 150 | 153 | 140.00 | 108.00 | 368.00 | 104.00 | 254.00 | 229.00 | 653.00 | 468.00 | 116.00 | 6.35 | 6.35 |
Connection assemblies selected to the model rating and loading arrangement.
To request U.S. Type Drop Forged Bolt Type Anchor Shackle G2130, please specify body opening, pin diameter, required rated capacity and surface finish. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
