| SIZE (IN) | DIMENSIONS(MM) | WEIGHT PER 100(KG.) | ||||||
| A | B | C | D | E | F | G | ||
| 1/8 | 4.00 | 20.00 | 12.00 | 9.00 | 9.50 | 19.00 | 12.00 | 1.30 |
| 3/16 | 5.00 | 26.30 | 14.00 | 11.00 | 10.80 | 22.00 | 13.50 | 1.60 |
| 1/4 | 6.00 | 26.00 | 14.00 | 12.50 | 11.50 | 25.00 | 15.50 | 2.40 |
| 5/16 | 6.00 | 30.00 | 16.00 | 15.50 | 16.00 | 31.00 | 18.00 | 3.70 |
| 3/8 | 8.00 | 37.50 | 20.00 | 21.00 | 20.00 | 40.00 | 22.00 | 8.10 |
| 1/2 | 10.00 | 46.40 | 24.00 | 25.00 | 26.00 | 47.00 | 25.00 | 14.60 |
| 5/8 | 12.00 | 57.10 | 28.00 | 30.00 | 31.00 | 55.00 | 28.00 | 23.20 |
| 11/16 | 12.00 | 64.25 | 40.00 | 33.00 | 35.00 | 58.50 | 28.50 | 30.00 |
| 3/4 | 16.00 | 71.00 | 34.00 | 36.50 | 36.00 | 65.00 | 31.00 | 45.00 |
| 7/8 | 16.00 | 77.40 | 38.00 | 40.00 | 43.00 | 72.00 | 36.00 | 58.10 |
| 1 | 20.00 | 88.10 | 44.00 | 45.00 | 48.00 | 80.00 | 40.00 | 89.20 |
Bend the wire rope to form a loop, place the rope end inside the saddle of the clip.
Keep the main wire rope against the saddle arc, leave the tail length at least 6 times the rope diameter.
Tighten two nuts alternately to ensure even clamping and prevent slipping.
Retighten nuts after first load to avoid loosening caused by vibration.
Only for light static fixing. Do NOT use for lifting, frequent vibration or coastal corrosive environments.
Matching quantity: 2 clips for rope ≤6mm; 3 clips for 8–12mm rope. Clip spacing ≥6 times rope diameter.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.

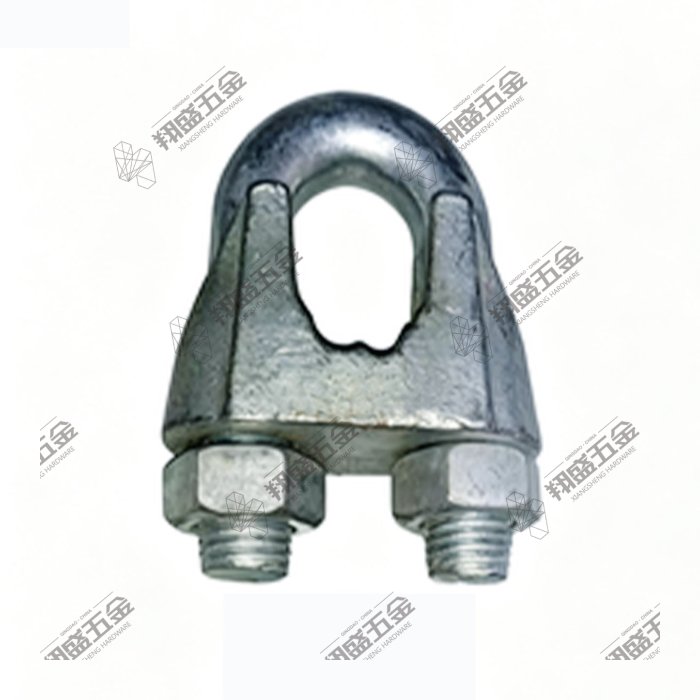

Type B Malleable Steel Wire Rope Clip, galvanized finish with double bolt clamping structure. Widely used for garden fences, greenhouse tension wires, decorative railings and small billboard fixing. Suitable for light static load only, not for lifting heavy loads.
