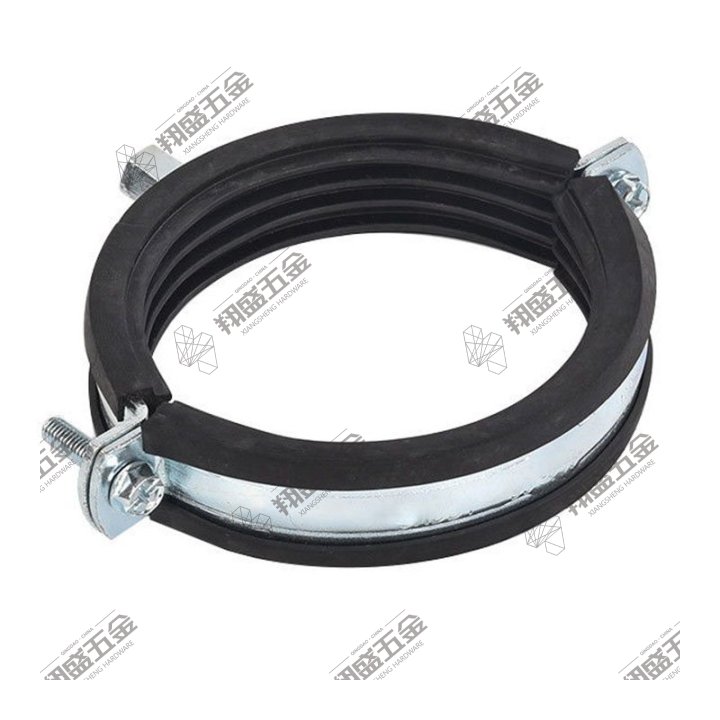

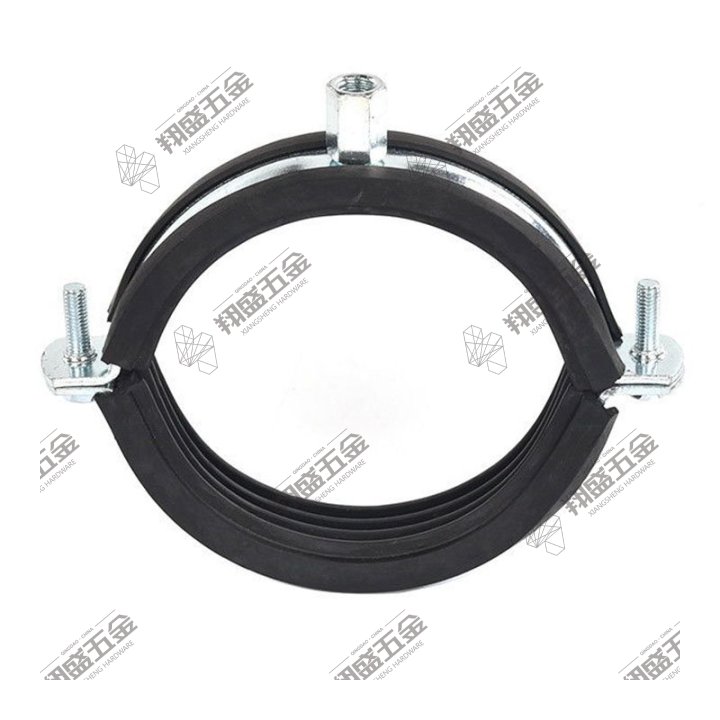

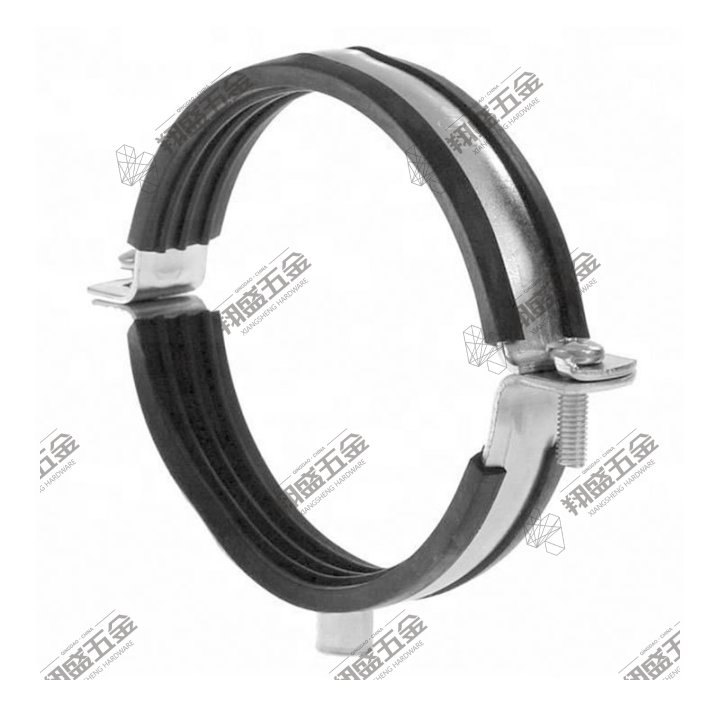

Pipe Clamp (hanging clamp)

Product Attributes

Material: galvanized steel, stainless steel(201, 301, 304)
Standard: EN Standard
Certificates: ISO/CE
Size: All / Different Size Available
Sample: Free
Package: Carton/Gunny bag/Pallet / As customer’s requirements.

INQUIRE NOW

ADD TO CART

Product Details
[ 01 ]
Product Reviews
[ 02 ]
Leave a Message
[ 03 ]
Related Products
[ 04 ]

Product Details

● Item name: American worm type clamp

● Material: galvanized steel, stainless steel(201, 301, 304)

● Standard: EN Standard

TABLE PARAMETER

Outer			Rod	Width	Thickness	Screw	Screw	Static
Diameter	Pip	NB/DN	Size			Diameter	Length	Load
	Size
14 – 18 mm	3/8″	10	M8, M10	30 mm	2.5 mm	M6	30 mm	2,000 N
19 – 23 mm	1/2″	15	M8, M10	30 mm	2.5 mm	M6	30 mm	2,000 N
24 – 28 mm	3/4″	20	M8, M10	30 mm	2.5 mm	M6	30 mm	2,000 N
29 – 33 mm	1″	25	M8, M10	30 mm	2.5 mm	M6	30 mm	2,000 N
33 – 37 mm	–	–	M8, M10	30 mm	2.5 mm	M6	30 mm	2,000 N
40 – 45 mm	1 1/4″	32	M8, M10	30 mm	2.5 mm	M6	30 mm	2,000 N
47 – 52 mm	1 1/2″	40	M8, M10	30 mm	2.5 mm	M6	30 mm	2,000 N
53 – 58 mm	–	–	M8, M10	30 mm	2.5 mm	M6	30 mm	2,000 N
60 – 65 mm	2″	50	M8, M10	30 mm	2.5 mm	M8	40 mm	2,000 N
67 – 72 mm	–	–	M10, M12	30 mm	3.0 mm	M8	40 mm	2,000 N
73 – 78 mm	2 1/2″	65	M10, M12	30 mm	3.0 mm	M8	40 mm	3,500 N
79 – 85 mm	–	–	M10, M12	30 mm	3.0 mm	M8	40 mm	3,500 N
88 – 93 mm	3″	80	M10, M12	30 mm	3.0 mm	M8	40 mm	3,500 N
94 – 99 mm	–	–	M10, M12	30 mm	3.0 mm	M8	40 mm	3,500 N
100 –106 mm	–	–	M10, M12	30 mm	3.0 mm	M8	40 mm	3,500 N
108 –116 mm	4″	100	M10, M12	30 mm	3.0 mm	M8	40 mm	3,500 N
117 –123 mm	–	–	M10, M12	30 mm	3.0 mm	M8	40 mm	3,500 N
