| SIZE (MM)Φ | DIMENSIONS(MM) | WEIGHT PER 100(KG.) | ||||||
| A | E | F | L | M | Q | S | ||
| 2 | 17.5 | 12 | 7.5 | 5 | 1 | M4 | 1 | 5 |
| 3 | 17.5 | 15 | 10 | 6.5 | 1.5 | M4 | 1.5 | 6.5 |
| 4 | 22 | 18 | 12 | 7.5 | 1.5 | M5 | 1.5 | 11 |
| 5 | 24 | 20 | 14 | 8.5 | 1.5 | M5 | 1.5 | 14.5 |
| 6 | 30 | 23 | 17 | 10 | 1.5 | M6 | 1.5 | 21 |
| 8 | 38 | 30 | 23 | 10 | 2 | M8 | 2 | 47 |

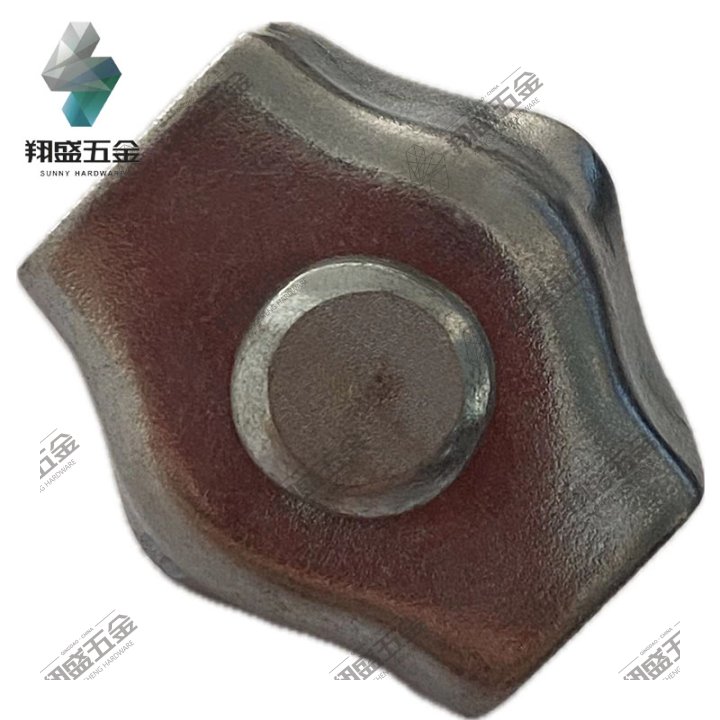

Single saddle wire rope clip for light static wire rope fixing.
Fit garden fences, decorative balustrades, small PV brackets and indoor rigging.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
DIN 741 standard wire rope clip made of high quality malleable iron, with hot dip galvanized finish for excellent anti-corrosion performance. Designed for firm wire rope connection, widely used in lifting, rigging, construction and marine applications. Xiangsheng Hardware offers complete sizes and reliable quality
