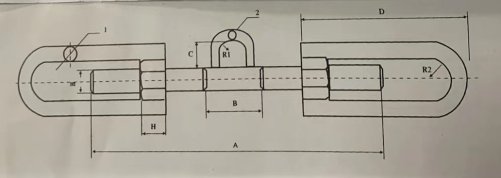

| THREAD | A | B | C | D | H | 1 | 2 | R1 | BREAKING LOAD(T) | REMARK |
| M24 | 400 | 75 | 35 | 210 | 22 | 16 | 12 | 15 | 13 | |
| 75 | 35 | 210 | 36 | 18 | 12 | 15 | (18) | |||
| M24 | 500 | 75 | 35 | 260 | 22 | 16 | 12 | 15 | 13 | |
| 75 | 35 | 260 | 36 | 18 | 12 | 15 | (18) | |||
| M27 | 400 | 75 | 35 | 210 | 33 | 20 | 12 | 17.5 | 20 | THE FIGURES IN BRACKETS ARE ADJUSTABLE |
| 75 | 35 | 210 | 42 | 20 | 12 | 17.5 | (25) | |||
| M27 | 500 | 75 | 35 | 260 | 33 | 20 | 12 | 17.5 | 20 | |
| 75 | 35 | 260 | 42 | 20 | 12 | 17.5 | (25) | |||
| M30 | 400 | 75 | 35 | 210 | - | - | 12 | 17.5 | - | |
| 75 | 35 | 210 | 45 | 22 | 12 | 17.5 | 25 | |||
| M30 | 500 | 75 | 35 | 260 | - | - | 12 | 17.5 | - | |
| 75 | 35 | 260 | 45 | 22 | 12 | 17.5 | 25 | |||
| M38 | 480 | 80 | 35 | 255 | 40 | 25 | 12 | 20 | 30 | |
| 80 | 35 | - | - | - | 12 | - | - |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
Standard DIN 1480 Hook & Eye Turnbuckle (also called hook-eye turnbuckle), made of high-quality malleable iron or carbon steel with electro-galvanized finish for rust resistance. Designed with one hook and one eye end, it allows easy connection and adjustable length for precise tension control. Available in sizes M6–M24, widely used in fencing, wire rope tensioning, construction, and general rigging applications. Factory direct supply, competitive price, OEM service available.
