Surface Finish:Electro Galvanized,Hot Dip Galvanized,Dacromet,Powder Coated
<
| NOMINAL SIZE （IN） | WORKING LOAD LIMIT（T） | WEIGHT EACH （KG） | DIMENSIONS（MM） | TOLERANCE +/- | |||||||||
| A | B | C | D | E | F | H | L | N | G | A | |||
| 3/16 | 1/3 | 0.03 | 9.65 | 6.35 | 22.40 | 4.85 | 15.20 | 14.20 | 37.30 | 24.90 | 4.85 | 1.50 | 1.50 |
| 1/4 | 1/2 | 0.05 | 11.90 | 7.85 | 28.70 | 6.35 | 19.80 | 15.50 | 46.70 | 32.50 | 6.35 | 1.50 | 1.50 |
| 5/16 | 3/4 | 0.10 | 13.50 | 9.65 | 31.00 | 7.85 | 21.30 | 19.10 | 53.00 | 37.30 | 7.85 | 3.30 | 1.50 |
| 3/8 | 1 | 0.15 | 16.80 | 11.20 | 36.60 | 9.65 | 26.20 | 23.10 | 63.00 | 45.20 | 9.65 | 3.30 | 1.50 |
| 7/16 | 1-1/2 | 0.22 | 19.10 | 12.70 | 42.90 | 11.20 | 29.50 | 26.90 | 74.00 | 51.50 | 11.20 | 3.30 | 1.50 |
| 1/2 | 2 | 0.36 | 20.60 | 16.00 | 47.80 | 12.70 | 33.30 | 30.20 | 83.50 | 58.50 | 12.70 | 3.30 | 1.50 |
| 5/8 | 3-1/4 | 0.76 | 26.90 | 19.10 | 60.50 | 16.00 | 42.90 | 38.10 | 106.00 | 74.50 | 17.50 | 6.35 | 1.50 |
| 3/4 | 4-3/4 | 1.23 | 31.80 | 22.40 | 71.50 | 19.10 | 51.00 | 46.00 | 126.00 | 89.00 | 20.60 | 6.35 | 1.50 |
| 7/8 | 6-1/2 | 1.79 | 36.60 | 25.40 | 84.00 | 22.40 | 58.00 | 53.00 | 148.00 | 102.00 | 24.60 | 6.35 | 1.50 |
| 1 | 8-1/2 | 2.57 | 42.90 | 28.70 | 95.50 | 25.40 | 68.50 | 60.50 | 167.00 | 119.00 | 26.90 | 6.35 | 1.50 |
| 1-1/8 | 9-1/2 | 3.75 | 46.00 | 31.80 | 108.00 | 28.70 | 74.00 | 68.50 | 190.00 | 131.00 | 31.80 | 6.35 | 3.30 |
| 1-1/4 | 12 | 5.31 | 51.50 | 35.10 | 119.00 | 31.80 | 82.50 | 76.00 | 210.00 | 146.00 | 35.10 | 6.35 | 3.30 |
| 1-3/8 | 13-1/2 | 7.18 | 57.00 | 38.10 | 133.00 | 35.10 | 92.00 | 84.00 | 233.00 | 162.00 | 38.10 | 6.35 | 3.30 |
| 1-1/2 | 17 | 9.43 | 60.50 | 41.40 | 146.00 | 38.10 | 98.50 | 92.00 | 254.00 | 175.00 | 41.10 | 6.35 | 3.30 |
| 1-3/4 | 25 | 15.40 | 73.00 | 51.00 | 178.00 | 44.50 | 127.00 | 106.00 | 313.00 | 225.00 | 57.00 | 6.35 | 3.30 |
| 2 | 35 | 23.70 | 82.50 | 57.00 | 197.00 | 51.00 | 146.00 | 122.00 | 348.00 | 253.00 | 61.00 | 6.35 | 6.35 |
| 2-1/2 | 55 | 44.6 | 105.00 | 70.00 | 267.00 | 66.50 | 184.00 | 145.00 | 453.00 | 327.00 | 79.50 | 6.35 | 6.35 |
| 3 | 85 | 70 | 127.00 | 82.50 | 330.00 | 76.00 | 200.00 | 165.00 | 546.00 | 365.00 | 92.00 | 6.35 | 6.35 |
| 3-1/2 | 120 | 120 | 133.00 | 95.50 | 372.00 | 92.00 | 229.00 | 203.00 | 626.00 | 419.00 | 105.00 | 6.35 | 6.35 |
| 4 | 150 | 153 | 140.00 | 108.00 | 368.00 | 104.00 | 254.00 | 229.00 | 653.00 | 468.00 | 116.00 | 6.35 | 6.35 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.

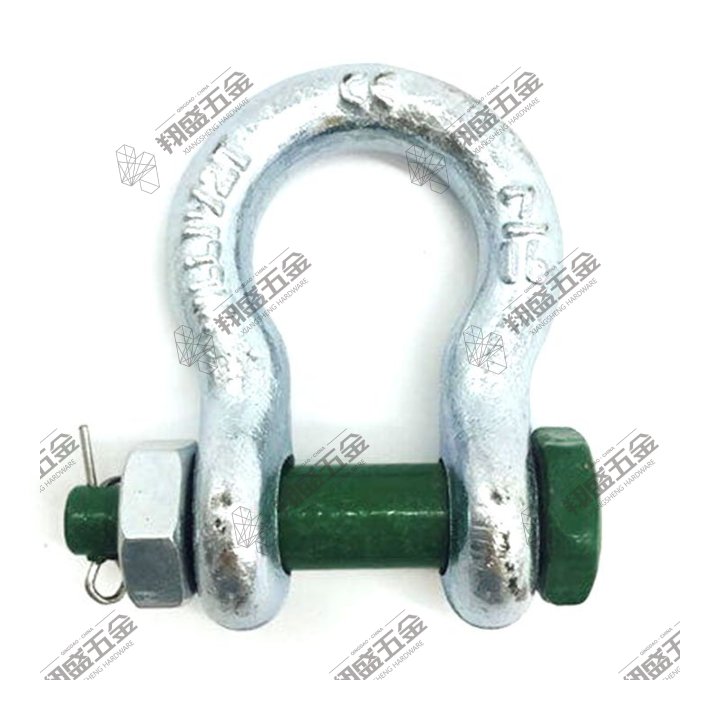

High-strength forged bow shackle (also known as anchor shackle) with bright galvanized finish, ideal for lifting, rigging, towing and marine applications. Each shackle is fully marked with WLL (Working Load Limit), size, brand and traceability code for safety compliance. The screw pin design ensures easy installation and quick connection, with breaking strength up to 6 times the rated load. Available in sizes from 6mm to 50mm, with custom engraving and color pin options (orange/blue/yellow) to match your brand.
High quality 209-210 type anchor shackle, drop forged carbon steel material, heat treated for high tensile strength. Finished with hot dip galvanized to achieve excellent anti-rust and anti-corrosion effect, suitable for saltwater and outdoor harsh environment. Standard size, stable working load limit and reliable safety factor. Widely used for marine rigging, ship mooring, port hoisting, cargo fixing and various heavy duty lifting connection works. Solid structure, easy installation, durable and safe for long-term industrial use.
Premium forged trawl shackle designed for heavy-duty marine fishing and trawling operations. Made of high-strength carbon steel, heat-treated and hot-dip galvanized for superior corrosion resistance and long service life in saltwater environments. Built with a reinforced body and heavy-duty pin to withstand continuous shock loads and tension from fishing nets and trawl doors. Meets marine industry standards with high working load limit, ideal for connecting trawl doors, nets, chains and ropes in fishing vessels, offshore trawlers and marine rigging applications. Reliable, durable and tested for harsh marine conditions.
This heavy-duty winch shackle with integrated pulley roller sheave is designed for 4x4 off-road recovery, winching, and towing operations. Made of drop-forged carbon steel with heat treatment, it offers exceptional strength with a 4.75-ton working load limit and 6:1 safety factor. The shackle body is coated in bright orange for high visibility and corrosion resistance, while the smooth black pulley reduces rope wear during winching. The bolt-type design with safety cotter pin ensures secure and reliable connection, making it ideal for off-road vehicles, trucks, Jeeps, and heavy-duty recovery scenarios.
High performance DIN82101 Type C shackle, drop forged solid carbon steel, professionally heat treated to boost overall strength and load resistance. Adopts hot dip galvanized surface treatment, effectively against rust and corrosion in damp and harsh environments. Conforms to DIN European standard, robust pin structure for firm assembly. Features standard 6:1 safety factor, stable working load limit. Ideal for marine rigging, construction hoisting, cargo binding, vehicle towing and various heavy-duty industrial connection applications. Strict quality control guarantees safe and long-term service.
High quality DIN 82101 D-type shackle, drop forged carbon steel material, heat treated for high tensile strength. Available in hot dip galvanized and plain finish, good anti-rust performance. Standard European type Dee shackle with stable working load limit, safe 6:1 safety factor. Widely used for lifting, rigging, towing, marine, construction and cargo binding. Strict quality inspection, durable and reliable for heavy duty industrial use.
Premium G2130 Bolt-Type Anchor Shackle – Forged Alloy Steel, Heavy Duty Lifting & Rigging Shackle, Hot-Dip Galvanized, WLL 0.5T-150T, US Standard 2130 Bow Shackle for Marine, Construction & Mining

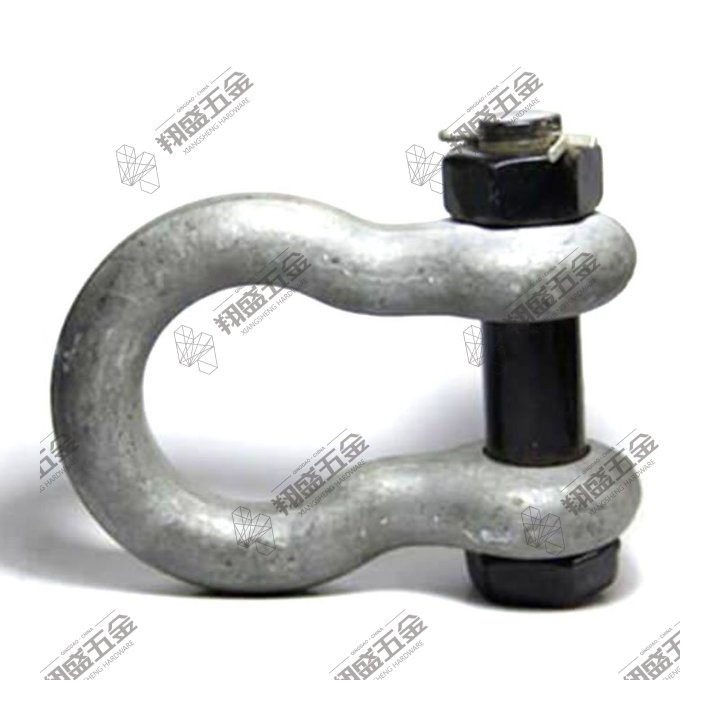

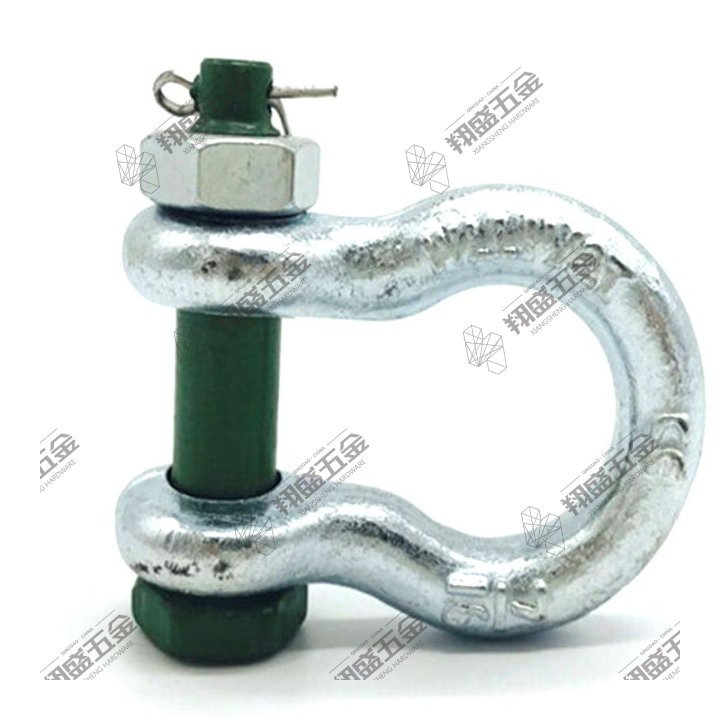

Our G2130 (2130) bolt-type anchor shackle is a US-standard heavy-duty bow shackle crafted from high-grade carbon steel body and alloy steel pin, drop-forged, quenched & tempered for maximum strength and durability. Designed with a safety bolt and cotter pin, it ensures secure connection and prevents loosening under load. Available in hot-dip galvanized (G) or self-colored (S) finishes, providing excellent corrosion resistance for harsh environments. With a safety factor of 6:1 and working load limit (WLL) ranging from 0.5 tons to 150 tons, it meets ASME B30.26 and ABS marine standards, ideal for lifting, rigging, towing, and anchoring applications in marine, construction, mining, and oil & gas industries.
European Type M11 Dee Shackle is forged from high strength carbon steel. Adopts standard size M11 screw pin, stable structure and strong bearing capacity. Hot dipped galvanized surface effectively prevents rust and corrosion. Easy to assemble and firmly locked, widely used for lifting, rigging, chain connection, shipping and engineering fastening.
Heavy-duty European Dee Shackle, forged from high-quality carbon steel for superior tensile strength and load capacity. The robust D-shape and precision screw pin ensure stable locking and safe use under heavy loads. Galvanized treatment provides effective protection against rust and wear, ideal for industrial lifting, construction rigging and heavy equipment connection.
This Heavy Duty Tow Shackle (also called Off-road Recovery Shackle) is a premium rigging hardware specially designed for vehicle towing and rescue tasks. Drop forged from high-strength carbon steel with quenched and tempered treatment, it delivers ultra-high tensile strength, stable load capacity and outstanding impact resistance, fully meeting the demand of heavy-duty pulling and off-road recovery. The precision structure with anti-rust coating provides excellent corrosion and wear resistance, adapting perfectly to harsh outdoor, muddy and off-road environments. The large shackle opening fits most vehicle recovery points and winch straps, with easy and fast installation. With permanent working load marking and strict quality testing, it is widely applied for truck trailer towing, off-road vehicle rescue, farm pulling, industrial rigging and vehicle traction operations. Full specifications from 2Ton to 8Ton are available, OEM customization is supported.
Our trailer shackle hitch receiver is a heavy-duty towing accessory designed to fit standard 2-inch (50mm) hitch receivers, ideal for trucks, Jeeps, SUVs, ATVs and off-road vehicles. Constructed from high-strength carbon steel with a durable black powder coating, it features a 3/4" D-ring shackle (with optional red/black anti-scratch sleeves) rated at 10,000 lbs working load limit (WLL) and 40,000 lbs break strength. The quick-connect design includes a safety pin and clip for fast, tool-free installation, providing a secure anchor point for tow straps, winch lines and recovery ropes. Perfect for off-road rescue, trailer towing and heavy-duty vehicle recovery tasks.
