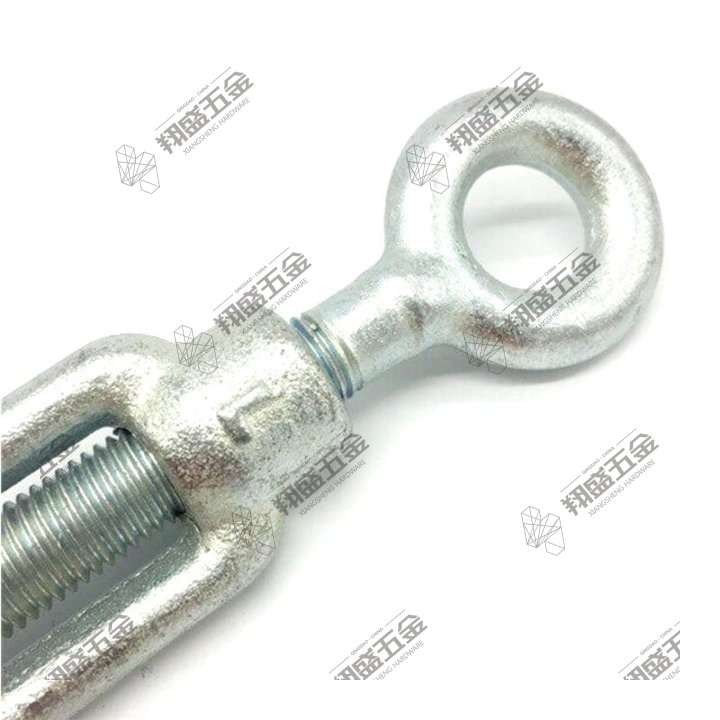

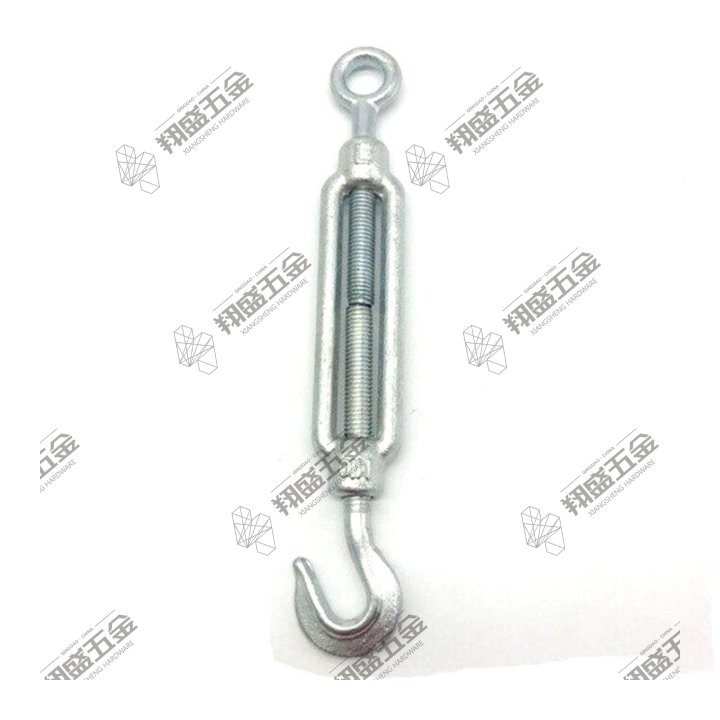

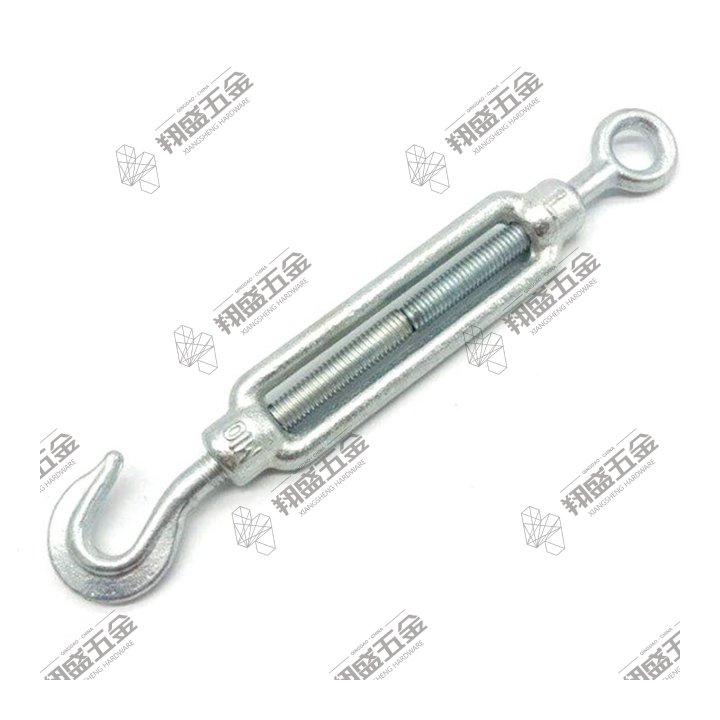

• Eye and Eye, Hook and Hook, Eye and Hook.
• Drop Forged
• Zinc Plated
• Satisfies DIN requirements.
• Safety Factor: 3:1
• Size embossed on each turnbuckle.
<

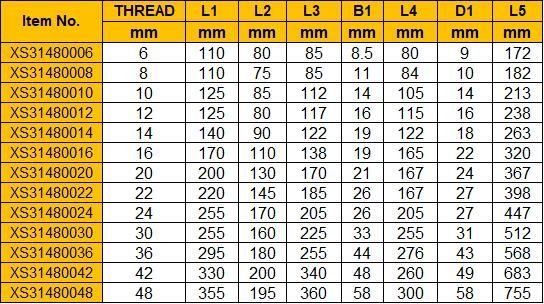

| THREAD mm | L1 mm | L2 mm | L3 mm | b1 mm | L5 mm | L4 mm | d1 mm | TOLERANCE mm | WEIGHT(KG) | |
| M5 | 70 | 48 | 60 | 6.7 | 53 | 113 | 8.5 | ±1 | 0.05 | |
| M6 | 110 | 85 | 85 | 8.5 | 80 | 165 | 10 | ±1 | 0.09 | |
| M8 | 110 | 79 | 98 | 11 | 84 | 182 | 10 | ±1.5 | 0.14 | |
| M10 | 125 | 88 | 109 | 14.5 | 102 | 211 | 14 | ±1.5 | 0.26 | |
| M12 | 125 | 85 | 127 | 15.3 | 119 | 246 | 17 | ±2 | 0.37 | |
| M14 | 140 | 90 | 141 | 18.5 | 122 | 263 | 18 | ±2 | 0.59 | |
| M16 | 170 | 116 | 175 | 19 | 145 | 320 | 22 | ±3 | 0.89 | |
| M20 | 200 | 130 | 170 | 20.5 | 167 | 367 | 24 | ±3 | 1.60 | |
| M22 | 220 | 145 | 185 | 26 | 167 | 398 | 27 | ±5 | 2.28 | |
| M24 | 255 | 170 | 205 | 26 | 205 | 447 | 27 | ±5 | 2.57 | |
| M30 | 255 | 160 | 225 | 33 | 255 | 512 | 31 | ±5 | 4.20 | |
| M36 | 295 | 180 | 255 | 44 | 276 | 568 | 43 | ±5 | 7.30 |
