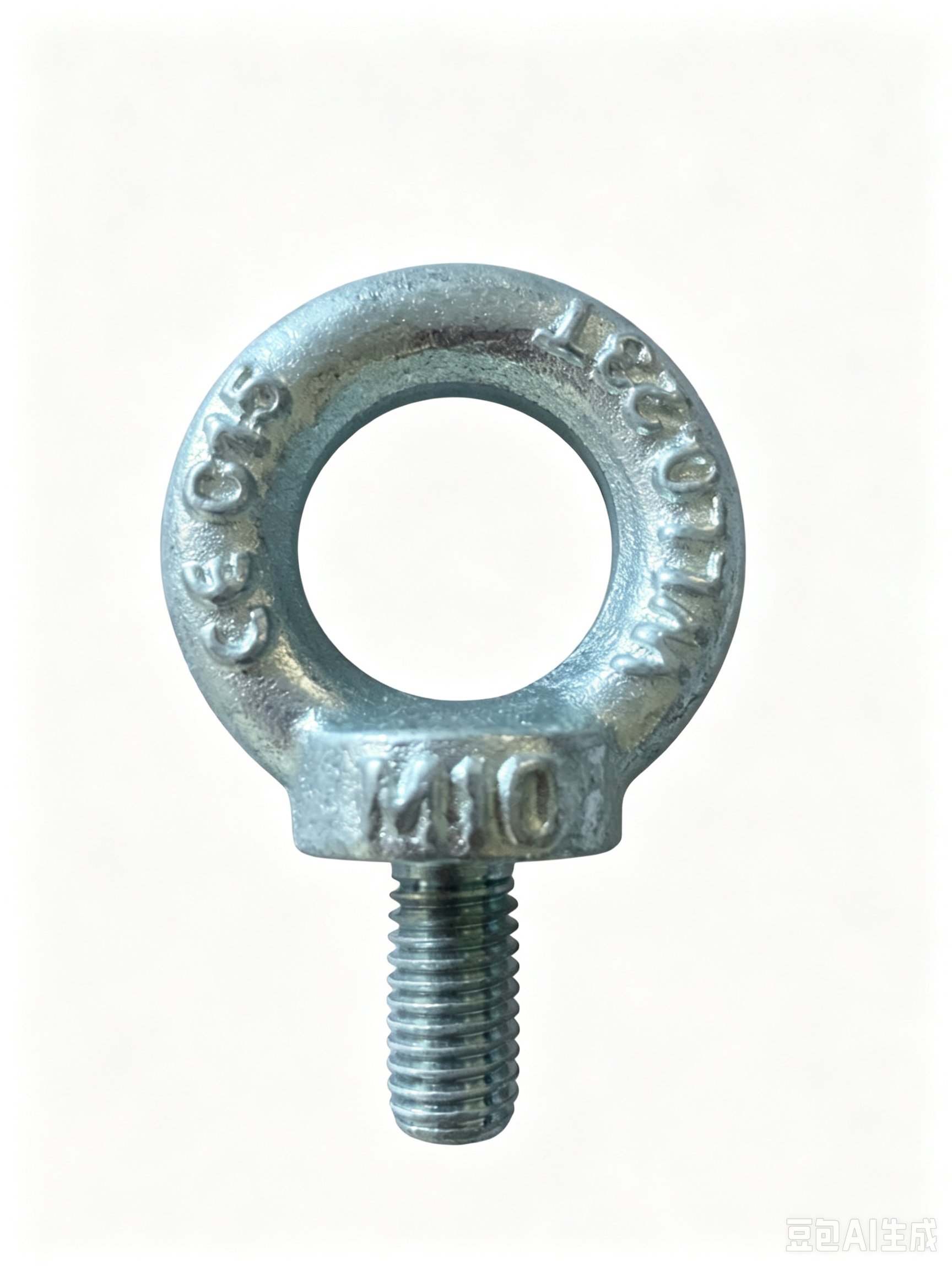

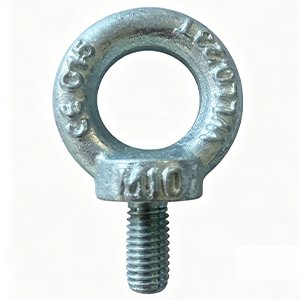

The DIN580 Drop Forged Eye Bolt provides a threaded eye connection for a compatible installation. Compare the thread, shank and eye dimensions with the mating component and specified loading arrangement.
The DIN580 Drop Forged Eye Bolt provides a threaded eye connection for a compatible installation. Compare the thread, shank and eye dimensions with the mating component and specified loading arrangement.
![]()
![]()
![]()
![]()
![]()
| MEASUREMENTS ACCORDING TO FIGURE (MM) | WLL | WEIGHT PER | ||||||
| D1 | D2 | D3 | D4 | H | K | I | T | 100(KG) |
| M6 | 17 | 28 | 16 | 31 | 6 | 13 | 0.095 | 5 |
| M8 | 20 | 36 | 20 | 36 | 8 | 13 | 0.095 | 6 |
| M10 | 25 | 45 | 25 | 45 | 10 | 17 | 0.17 | 11 |
| M12 | 30 | 54 | 30 | 53 | 12 | 20.5 | 0.24 | 18 |
| M14 | 35 | 63 | 35 | 62 | 14 | 27 | - | 28 |
| M16 | 35 | 63 | 35 | 62 | 14 | 27 | 0.5 | 28 |
| M18 | 40 | 72 | 40 | 71 | 16 | 30 | - | 45 |
| M20 | 40 | 72 | 40 | 71 | 16 | 30 | 0.83 | 45 |
| M22 | 45 | 81 | 45 | 80.5 | 18 | 35 | - | 67 |
| M24 | 50 | 90 | 50 | 90 | 20 | 36 | 1.27 | 87 |
| M27 | 50 | 90 | 50 | 90 | 20 | 38 | - | 88 |
| M30 | 65 | 108 | 60 | 109 | 24 | 45 | 2.6 | 166 |
| M33 | 65 | 108 | 60 | 109 | 24 | 45 | - | 166 |
| M36 | 75 | 126 | 70 | 128 | 28 | 54 | 3.7 | 265 |
| M39 | 85 | 144 | 80 | 147 | 32 | 63 | - | 403 |
| M42 | 85 | 144 | 80 | 147 | 32 | 63 | 5 | 403 |
| M45 | 100 | 166 | 90 | 168 | 38 | 68 | - | 638 |
| M48 | 100 | 166 | 90 | 168 | 38 | 68 | 6.1 | 638 |
| M52 | 110 | 184 | 100 | 187 | 42 | 78 | - | 880 |
| M56 | 110 | 184 | 100 | 187 | 42 | 78 | 8.3 | 880 |
| M64 | 120 | 206 | 110 | 208 | 48 | 90 | 11 | 1240 |
| M72 | 150 | 260 | 140 | 260 | 60 | 100 | 15 | 2330 |
| M80 | 170 | 296 | 160 | 298 | 68 | 112 | 20 | 3420 |
| M100 | 190 | 330 | 180 | 330 | 75 | 130 | 27 | 4910 |
Threaded attachment points selected to the model rating.
To request DIN580 Drop Forged Eye Bolt, please specify thread diameter and pitch, shank length, eye dimensions, material and required rated load. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
