The European Type Large Dee Shackle connects compatible ropes, chains and fittings through its removable pin. Compare the body opening and pin dimensions with the mating components. For straight vertical loading only.
The European Type Large Dee Shackle connects compatible ropes, chains and fittings through its removable pin. Compare the body opening and pin dimensions with the mating components.
![]()

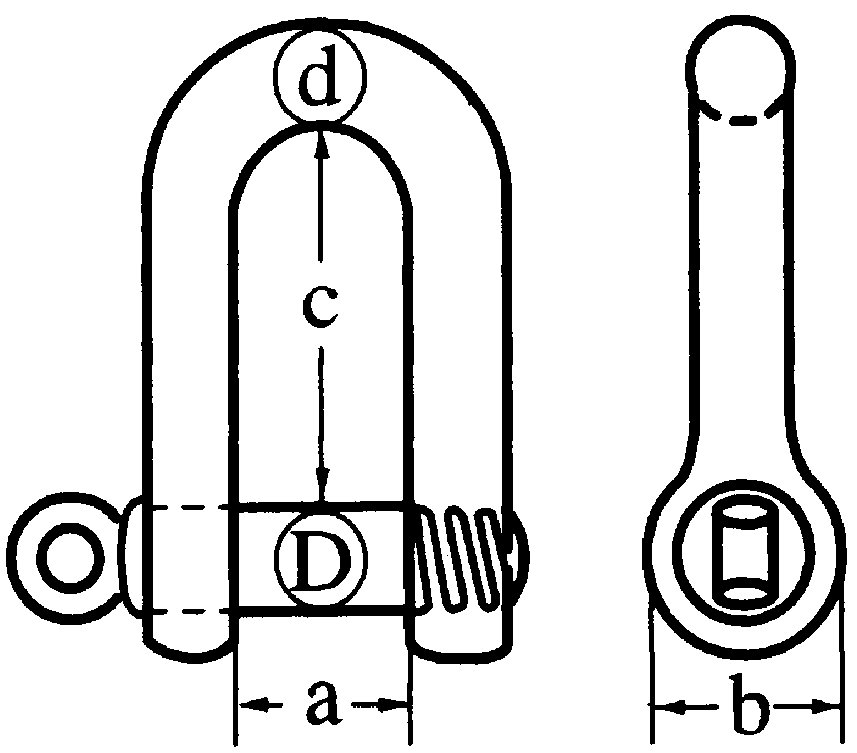

| LARGE DEE SHACKLES | ||||||
| SWL | D | d | a | c | b | WEIGHE PER 100 PCS (KG) |
| kg | mm | mm | mm | mm | mm | |
| 80 | 5 | 5 | 10 | 19 | 11 | 1.85 |
| 100 | 6 | 6 | 13 | 25 | 14 | 3.4 |
| 200 | 8 | 8 | 16 | 32 | 18 | 7 |
| 320 | 10 | 10 | 19 | 38 | 20 | 13 |
| 520 | 12 | 12 | 25 | 51 | 26 | 26 |
| 800 | 16 | 16 | 32 | 64 | 33 | 50 |
| 1100 | 20 | 20 | 38 | 76 | 40 | 80 |
| 1500 | 22 | 22 | 44 | 89 | 50 | 130 |
| 2100 | 25 | 25 | 51 | 100 | 57 | 200 |
| 3000 | 28 | 28 | 57 | 115 | 68 | 310 |
| 3500 | 32 | 32 | 64 | 127 | 73 | 430 |
| 5000 | 38 | 38 | 76 | 152 | 85 | 700 |
| 7000 | 45 | 45 | 90 | 180 | 96 | 1250 |
| 8000 | 50 | 50 | 102 | 200 | 108 | 1750 |
Connection assemblies selected to the model rating and loading arrangement.
Use limitation: For straight vertical loading only.
To request European Type Large Dee Shackle, please specify body opening, pin diameter, required rated capacity and surface finish. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
Exactly as described, heavy duty.
