The Shackles connects compatible ropes, chains and fittings through its removable pin. Compare the body opening and pin dimensions with the mating components.
The Shackles connects compatible ropes, chains and fittings through its removable pin. Compare the body opening and pin dimensions with the mating components.
| NOMINAL SIZE （IN） | WORKING LOAD LIMIT（T） | WEIGHT EACH （KG） | DIMENSIONS（MM） | TOLERANCE +/- | |||||||||||
| A | B | C | D | E | F | G | H | L | M | P | C | A | |||
| 3/16 | 1/3 | 0.03 | 9.65 | 6.35 | 22.40 | 4.85 | 15.20 | 14.20 | 24.90 | 37.30 | 4.06 | 28.40 | 4.85 | 1.50 | 1.50 |
| 1/4 | 1/2 | 0.05 | 11.90 | 7.85 | 28.70 | 6.35 | 19.80 | 15.50 | 32.50 | 46.70 | 4.85 | 35.10 | 6.35 | 1.50 | 1.50 |
| 5/16 | 3/4 | 0.09 | 13.50 | 9.65 | 31.00 | 7.85 | 21.30 | 19.10 | 37.30 | 53.00 | 5.60 | 42.20 | 7.85 | 3.30 | 1.50 |
| 3/8 | 1 | 0.14 | 16.80 | 11.20 | 36.60 | 9.65 | 26.20 | 23.10 | 45.20 | 63.00 | 6.35 | 51.50 | 9.65 | 3.30 | 1.50 |
| 7/16 | 1-1/2 | 0.17 | 19.10 | 12.70 | 42.90 | 11.20 | 29.50 | 26.90 | 51.50 | 74.00 | 7.85 | 60.50 | 11.20 | 3.30 | 1.50 |
| 1/2 | 2 | 0.33 | 20.60 | 16.00 | 47.80 | 12.70 | 33.30 | 30.20 | 58.50 | 83.50 | 9.65 | 68.50 | 12.70 | 3.30 | 1.50 |
| 5/8 | 3-1/4 | 0.62 | 26.90 | 19.10 | 60.50 | 16.00 | 42.90 | 38.10 | 74.50 | 106.00 | 11.20 | 85.00 | 17.50 | 6.35 | 1.50 |
| 3/4 | 4-3/4 | 1.07 | 31.80 | 22.40 | 71.50 | 19.10 | 51.00 | 46.00 | 89.00 | 126.00 | 12.70 | 101.00 | 20.60 | 6.35 | 1.50 |
| 7/8 | 6-1/2 | 1.64 | 36.60 | 25.40 | 84.00 | 22.40 | 58.00 | 53.00 | 102.00 | 148.00 | 12.70 | 114.00 | 24.60 | 6.35 | 1.50 |
| 1 | 8-1/2 | 2.28 | 42.90 | 28.70 | 95.50 | 25.40 | 68.50 | 60.50 | 119.00 | 167.00 | 14.20 | 129.00 | 26.90 | 6.35 | 1.50 |
| 1-1/8 | 9-1/2 | 3.36 | 46.00 | 31.80 | 108.00 | 29.50 | 74.00 | 68.50 | 131.00 | 190.00 | 16.00 | 142.00 | 31.80 | 6.35 | 1.50 |
| 1-1/4 | 12 | 4.31 | 51.50 | 35.10 | 119.00 | 32.80 | 82.50 | 76.00 | 146.00 | 210.00 | 17.50 | 156.00 | 35.10 | 6.35 | 1.50 |
| 1-3/8 | 13-1/2 | 6.14 | 57.00 | 38.10 | 133.00 | 36.10 | 92.00 | 84.00 | 162.00 | 233.00 | 19.10 | 174.00 | 38.10 | 6.35 | 3.30 |
| 1-1/2 | 17 | 7.8 | 60.50 | 41.40 | 146.00 | 39.10 | 98.50 | 92.00 | 175.00 | 254.00 | 20.60 | 187.00 | 41.10 | 6.35 | 3.30 |
| 1-3/4 | 25 | 12.6 | 73.00 | 51.00 | 178.00 | 46.70 | 127.00 | 106.00 | 225.00 | 313.00 | 25.40 | 231.00 | 57.00 | 6.35 | 3.30 |
| 2 | 35 | 20.4 | 82.50 | 57.00 | 197.00 | 53.00 | 146.00 | 122.00 | 253.00 | 348.00 | 31.00 | 263.00 | 61.00 | 6.35 | 3.30 |
| 2-1/2 | 55 | 38.9 | 105.00 | 70.00 | 267.00 | 69.00 | 184.00 | 145.00 | 327.00 | 453.00 | 35.10 | 330.00 | 79.50 | 6.35 | 6.35 |

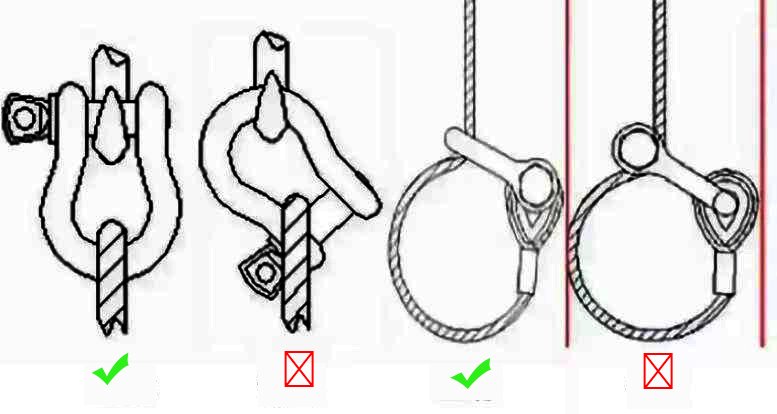

Connection assemblies selected to the model rating and loading arrangement.
To request Shackles, please specify body opening, pin diameter, required rated capacity and surface finish. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
Very happy with these shackles. They are built from drop‑forged steel, solid and tough.
