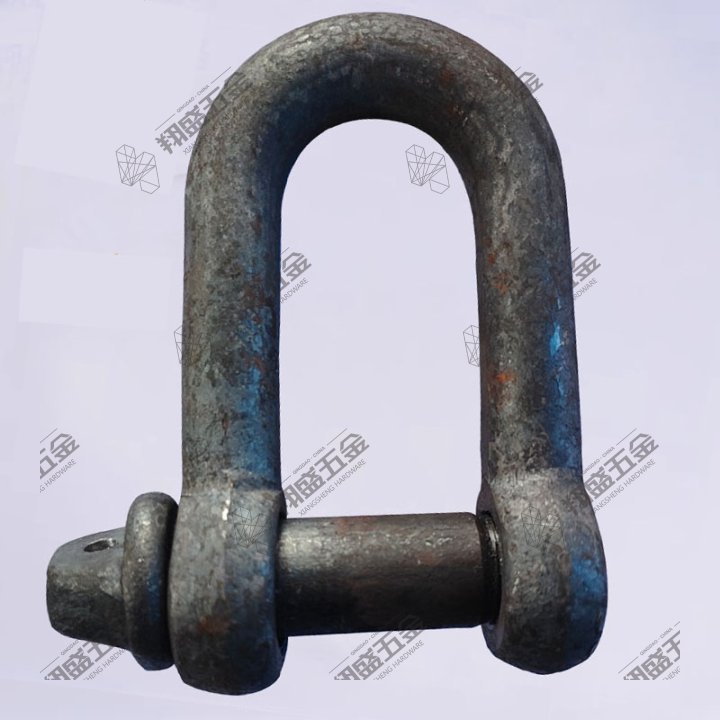

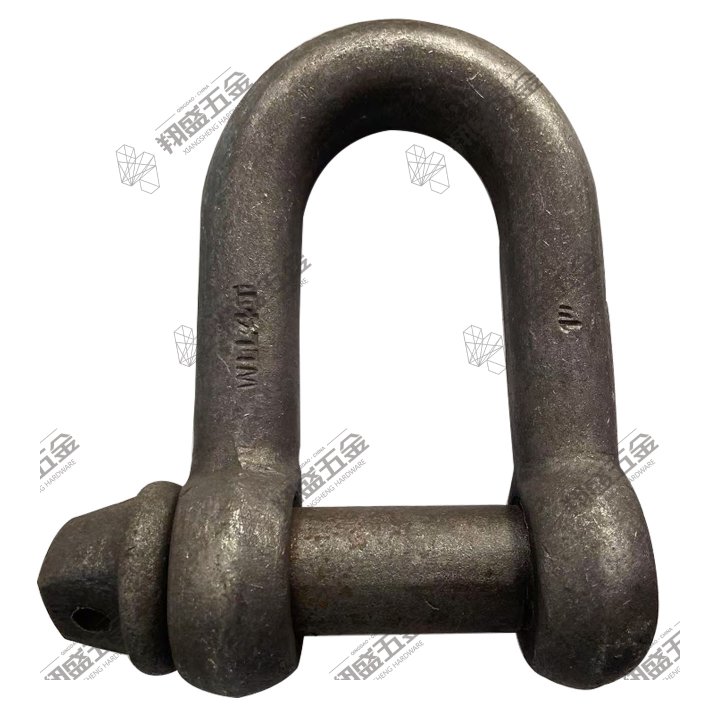

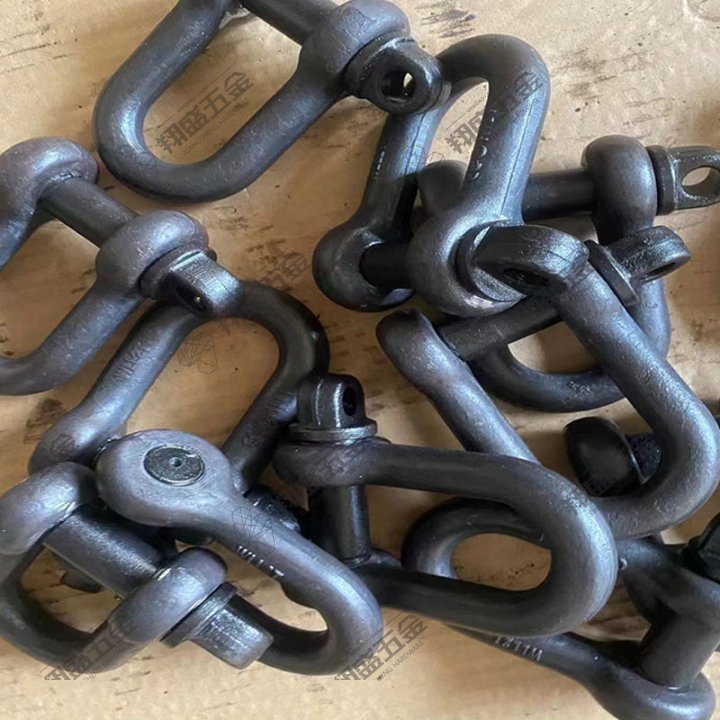

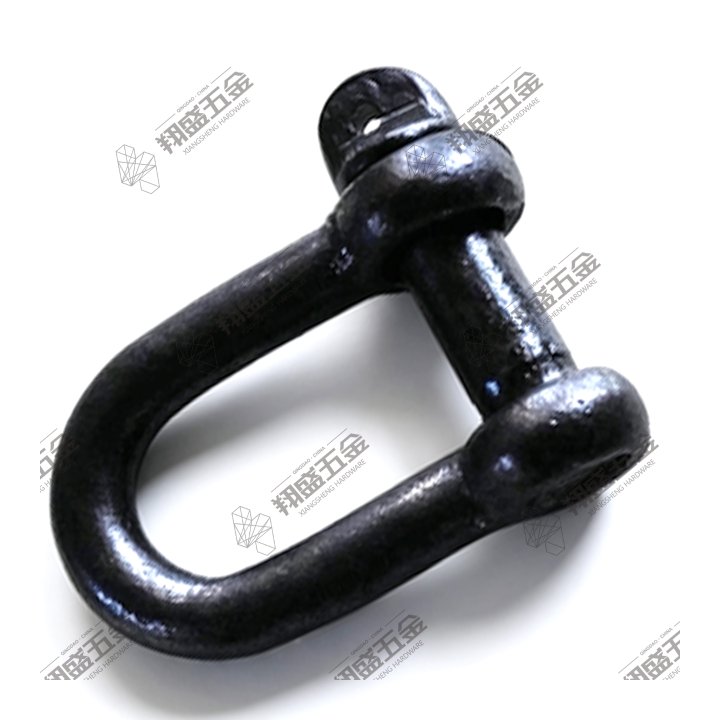

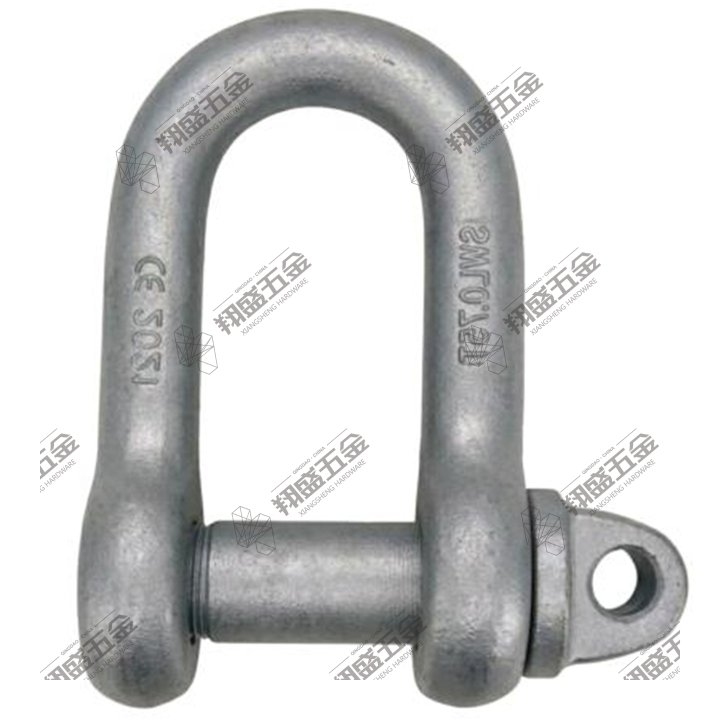

The BS3032 Dee Shackle connects compatible ropes, chains and fittings through its removable pin. Compare the body opening and pin dimensions with the mating components.
The BS3032 Dee Shackle connects compatible ropes, chains and fittings through its removable pin. Compare the body opening and pin dimensions with the mating components.
| WLL(t ) | Dimensions(mm) | Weight | ||||
| a | b | C | d | e | (kg) | |
| 0.25 | 6.00 | 10.00 | 19.00 | 13.00 | 25.00 | 0.11 |
| 0.50 | 10.00 | 13.00 | 25.00 | 19.00 | 38.00 | 0.17 |
| 0.75 | 13.00 | 16.00 | 32.00 | 26.00 | 54.00 | 0.35 |
| 1.50 | 16.00 | 19.00 | 38.00 | 32.00 | 64.00 | 0.68 |
| 2.00 | 19.00 | 22.00 | 44.00 | 38.00 | 73.00 | 1.02 |
| 3.00 | 22.00 | 25.20 | 50.00 | 44.00 | 82.00 | 1.57 |
| 3.75 | 25.00 | 28.30 | 56.00 | 51.00 | 95.00 | 2.30 |
| 5.00 | 28.00 | 31.70 | 63.00 | 54.00 | 105.00 | 3.20 |
| 6.00 | 32.00 | 35.00 | 70.00 | 60.00 | 114.00 | 4.30 |
| 7.00 | 35.00 | 38.00 | 75.00 | 67.00 | 127.00 | 5.40 |
| 9.50 | 38.00 | 43.00 | 89.00 | 70.00 | 137.00 | 6.80 |
| 11.25 | 42.00 | 48.00 | 89.00 | 76.00 | 146.00 | 8.70 |
| 13.00 | 44.00 | 51.00 | 95.00 | 83.00 | 156.00 | 11.00 |
| 14.00 | 48.00 | 54.00 | 106.00 | 92.00 | 178.00 | 14.30 |
| 16.00 | 51.00 | 57.00 | 114.00 | 98.00 | 187.00 | 20.00 |
| 18.00 | 54.00 | 60.00 | 124.00 | 105.00 | 197.00 | 26.40 |
| 20.00 | 57.00 | 64.00 | 127.00 | 108.00 | 210.00 | 28.30 |
| 25.00 | 64.00 | 73.00 | 148.00 | 121.00 | 235.00 | 36.00 |
| 30.00 | 70.00 | 79.00 | 150.00 | 123.00 | 260.00 | 40.00 |
| 35.00 | 76.00 | 86.00 | 171.00 | 146.00 | 279.00 | 63.60 |
| 40.00 | 79.00 | 89.00 | 178.00 | 149.00 | 292.00 | 71.70 |
| 50.00 | 89.00 | 102.00 | 203.00 | 171.00 | 330.00 | 101.00 |
| 65.00 | 102.00 | 114.00 | 229.00 | 181.00 | 275.00 | 151.00 |
| 80.00 | 114.00 | 127.00 | 254.00 | 219.00 | 419.00 | 215.00 |
Connection assemblies selected to the model rating and loading arrangement.
To request BS3032 Dee Shackle, please specify body opening, pin diameter, required rated capacity and surface finish. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
These BS3032 bow shackles feel really well‑made. Hot‑dipped galvanized finish is nice and even, no rough edges. Working load limit marking is clearly stamped on the body, easy to check before lift. The pin fits smoothly, screws in and out without sticking. Used them on site for rigging and load securing, performed perfectly under heavy load. Good build quality comparing with other suppliers. Will re‑order for our next project, definitely recommend for industrial lifting jobs.
The DIN 82101 D-Ring Shackle connects compatible ropes, chains and fittings through its removable pin. Compare the body opening and pin dimensions with the mating components.
Straight in-line loading only. Side loading is prohibited; not recommended for long-term overhead static hoisting.
