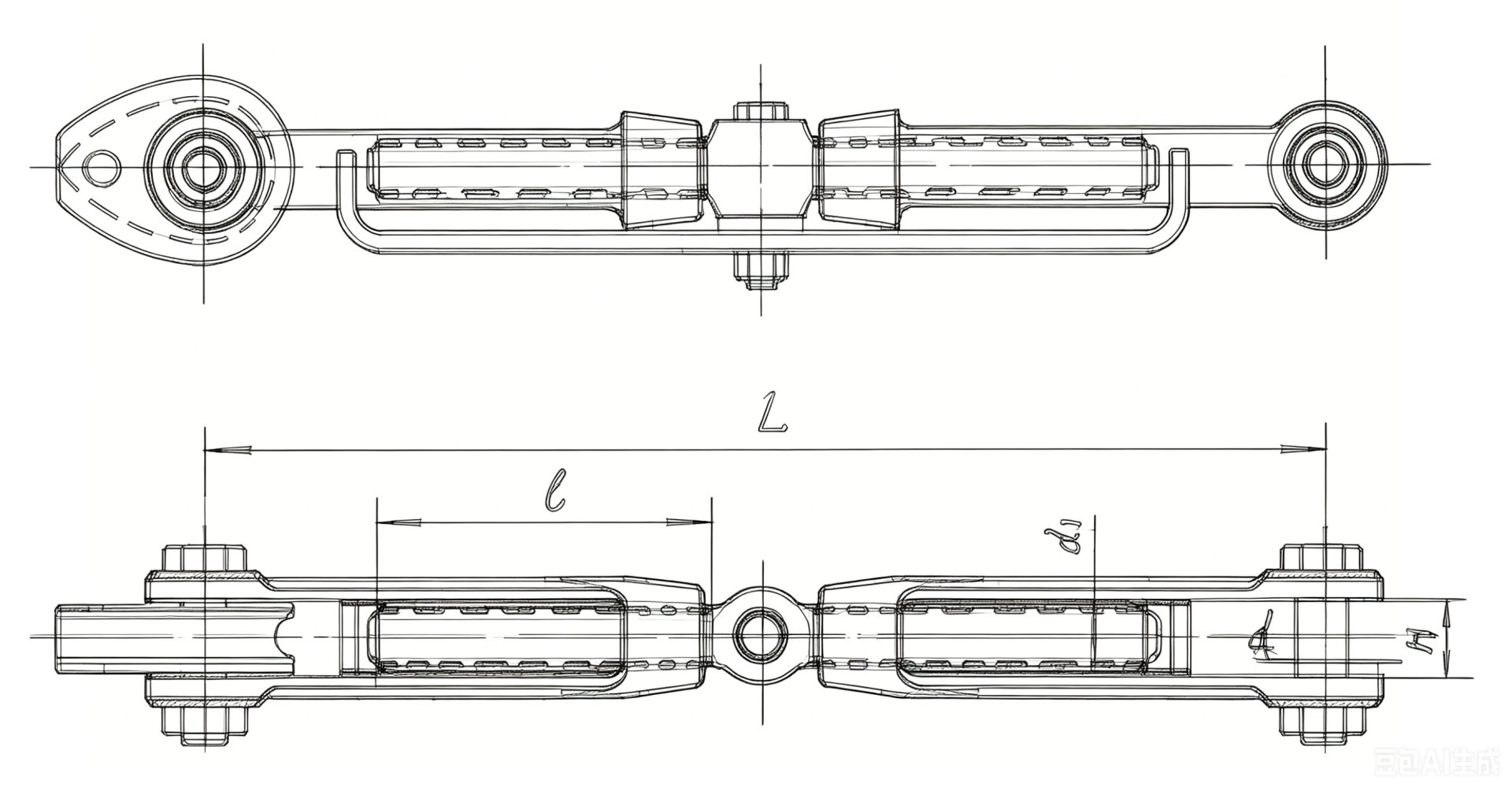

| TYPE | WIRE ROPE DIA (mm) | size | WEIGHT (kg) | |||||
| SWL (t) | L (mm) | l (mm) | d (mm) | H (mm) | d1 | |||
| 14 | 14 | 2.1 | 488 | 145 | 24 | 30 | M24 | 5.97 |
| 16 | 16 | 2.6 | 537 | 160 | 26 | 34 | M27 | 6.58 |
| 18 | 18 | 3.3 | 587 | 172 | 30 | 37 | M30 | 11.6 |
| 22 | 20 或 22.4 | 5.1 | 636 | 188 | 30 | 40 | M33 | 14.8 |
| 24 | 24 | 5.9 | 688 | 198 | 32 | 44 | M39 | 19.4 |
| 25 | 25 | 6.9 | 716 | 205 | 35 | 47 | M42 | 23.9 |
| 30 | 28 或 30 | 9.2 | 768 | 220 | 41 | 54 | M48 | 30.2 |
| 32 | 32 | 10.5 | 807 | 230 | 41 | 54 | M48 | 36.2 |
| 34 | 34 | 11.5 | 846 | 240 | 45 | 58 | M52 | 43.2 |
| 36 | 36 | 13 | 898 | 250 | 48 | 60 | M56 | 51.1 |
| 38 | 38 | 14.5 | 938 | 258 | 50 | 67 | M60 | 59.9 |
| 40 | 40 | 16.5 | 988 | 268 | 55 | 71 | M64 | 70.7 |
| 42 | 42.5 | 18.5 | 1067 | 288 | 59 | 75 | M68 | 93.5 |
| 45 | 45 | 21 | 1098 | 295 | 63 | 75 | M68 | 105 |
| 48 | 47.5 | 23 | 1138 | 305 | 67 | 85 | M76*6 | 117 |
| 50 | 50 | 25.5 | 1157 | 310 | 67 | 88 | M76*6 | 124 |

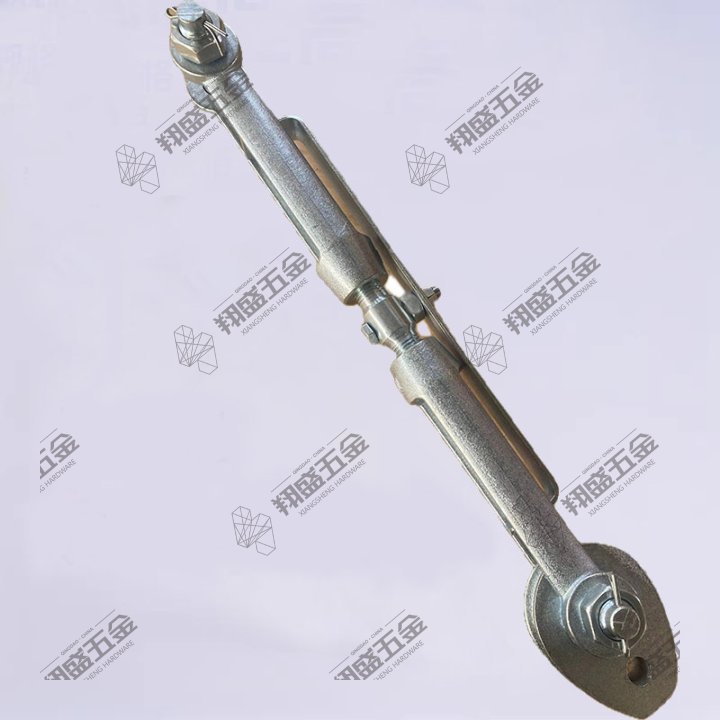

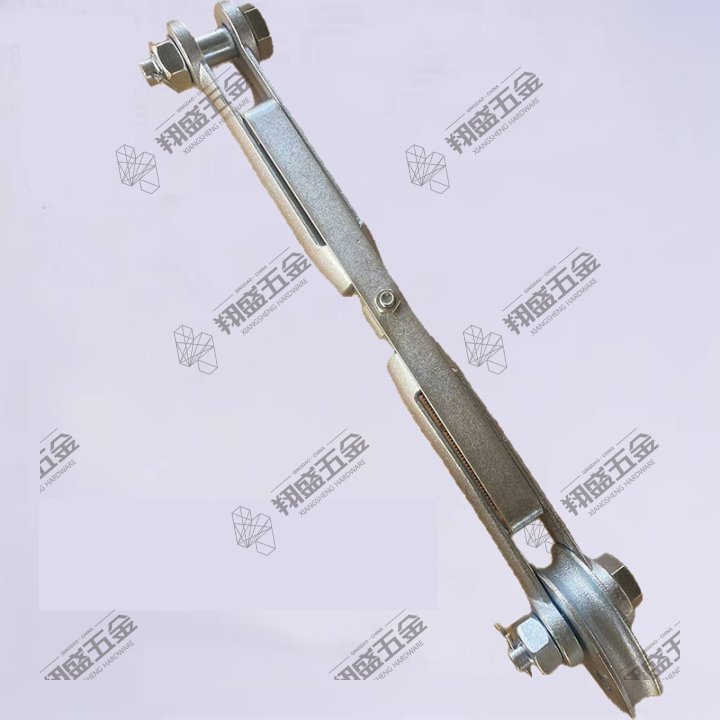

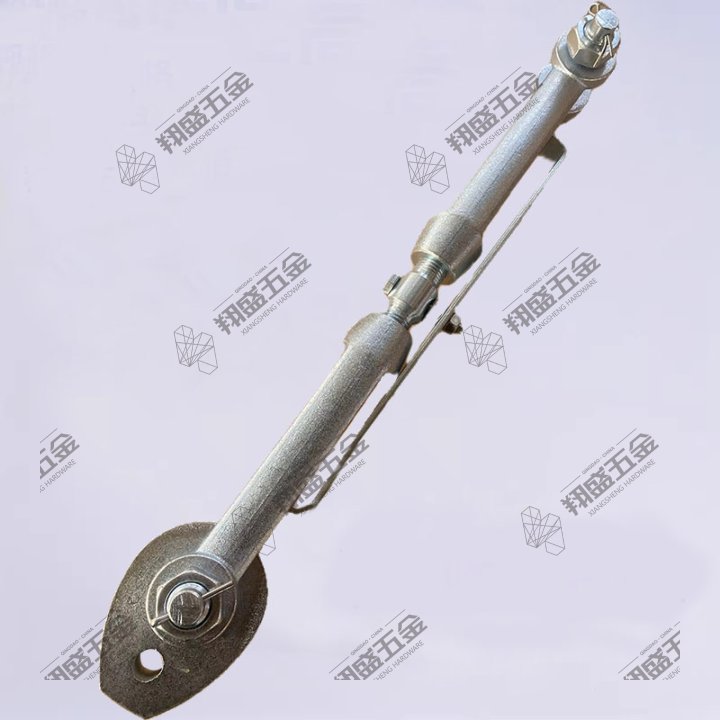

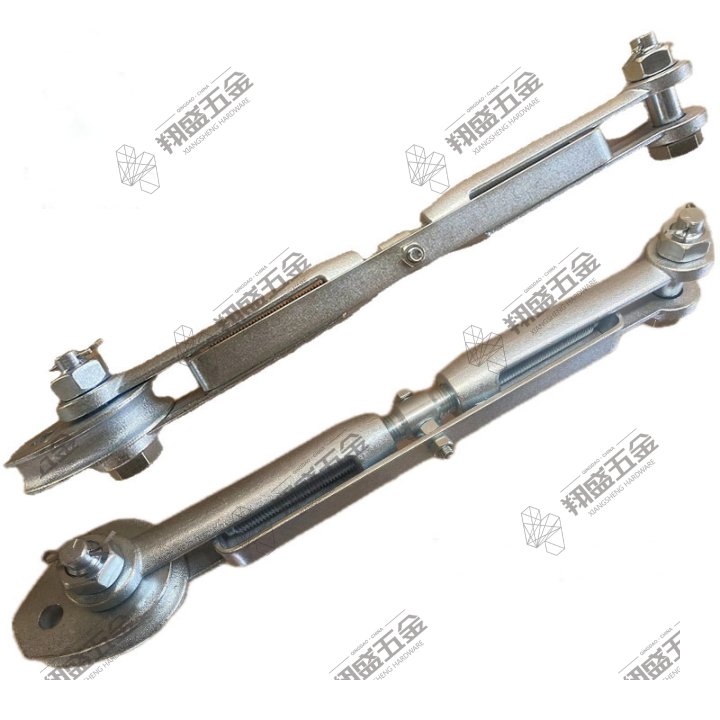

Application Scope of Marine Forged Plate & Plate TurnbuckleFor long-term heavy static tensioning of vessel fenders, dock buoys, coastal steel structures, photovoltaic brackets and slope protection nets, not for lifting operations.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
Standard DIN 1480 Hook & Eye Turnbuckle (also called hook-eye turnbuckle), made of high-quality malleable iron or carbon steel with electro-galvanized finish for rust resistance. Designed with one hook and one eye end, it allows easy connection and adjustable length for precise tension control. Available in sizes M6–M24, widely used in fencing, wire rope tensioning, construction, and general rigging applications. Factory direct supply, competitive price, OEM service available.
DIN 1480 Eye & Eye (OO) turnbuckle, drop forged carbon steel, galvanized finish. M6–M36 available. Open body design, left-right thread for precise length adjustment. Ideal for wire rope tensioning, lifting, construction and marine rigging.
US Drop Forged Hook & Eye Turnbuckle HG-225, hot dip galvanized for superior rust & salt fog resistance. Made of high-strength carbon steel by drop forging, featuring a hook for fast wire rope installation and solid eye for stable connection. Widely used for static tension adjustment of marine yacht fittings, steel shed bracing, photovoltaic supports, stadium wire mesh and cargo lashing. Designed for straight static load only, not applicable for lifting operations.
US Type Drop Forged Turnbuckle UU/Jaw & Jaw, high strength carbon steel with hot dip galvanized finish. Manufactured by Xiangsheng Hardware, professional rigging factory. Adjustable tensioning, durable and corrosion resistant, widely used for lifting, construction and marine rigging.
