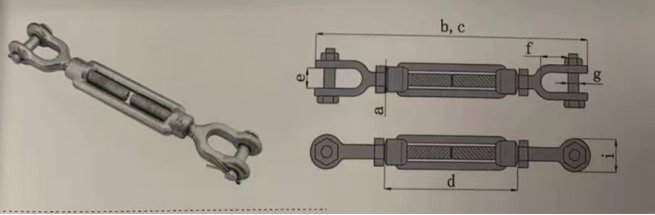

| Size(a) | Dimensions(mm) | Weight | |||||||
| (mm) | b | c | d | e | f | g | h | i | (kg) |
| 6 | 191 | 277 | 110 | 7.5 | 12 | m6 | 5 | 13 | 0.16 |
| 8 | 194 | 274 | 110 | 8.5 | 12 | m6 | 6 | 14 | 0.21 |
| 10 | 236 | 325 | 125 | 11 | 16 | m8 | 8 | 18 | 0.38 |
| 12 | 266 | 349 | 125 | 13 | 20 | m10 | 10 | 24 | 0.66 |
| 14 | 316 | 406 | 140 | 16 | 30 | m12 | 12 | 28 | 1.15 |
| 16 | 374 | 490 | 170 | 18 | 38 | m12 | 12 | 32 | 1.45 |
| 20 | 438 | 570 | 200 | 20 | 42 | m16 | 16 | 38 | 2.61 |
| 22 | 466 | 611 | 220 | 22 | 44 | m18 | 18 | 40 | 3.24 |
| 24 | 514 | 691 | 255 | 24 | 46 | m20 | 20 | 42 | 4.35 |
| 30 | 544 | 709 | 255 | 30 | 50 | m24 | 22 | 46 | 6.48 |
Marine & Port: Permanent fixing of vessel fenders, guardrails, dock buoys and trestle bracing
Construction: Heavy curtain wall tie rods, steel canopy and bridge cable tensioning
New Energy: Large photovoltaic support stays, power transmission tower guy wires
Municipal Works: Slope protection nets, heavy stadium fence tensioning
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.

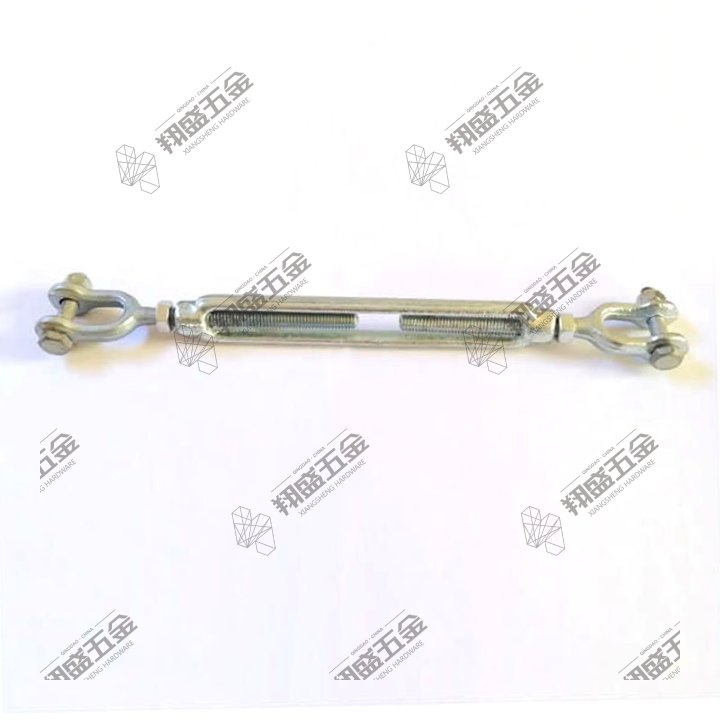

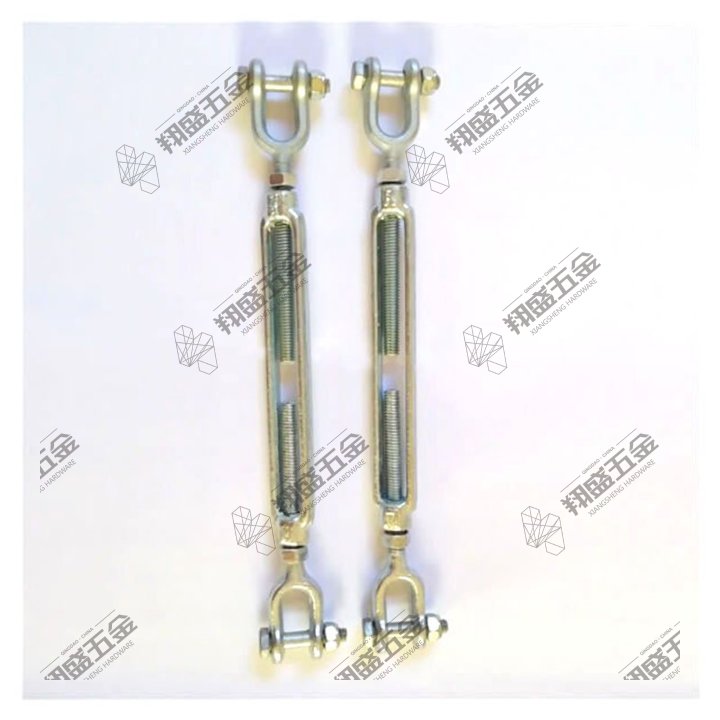

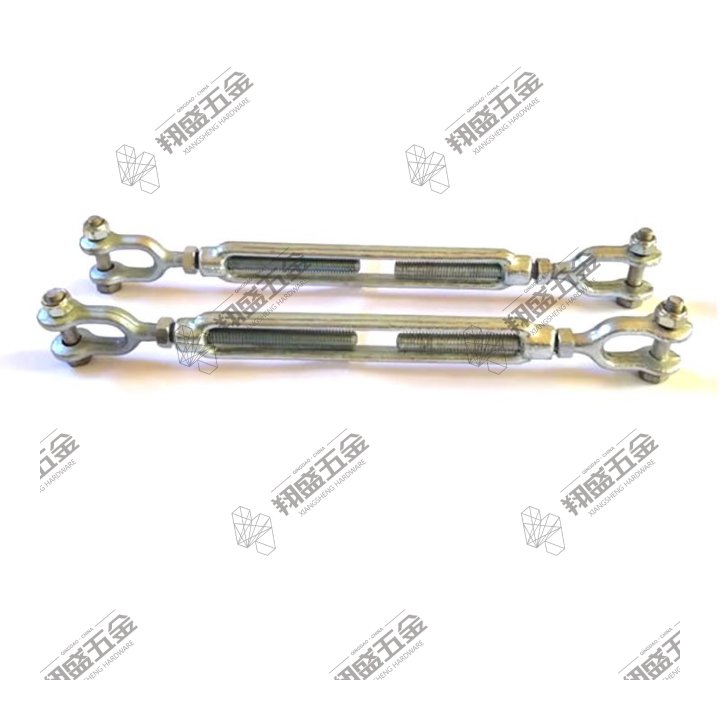

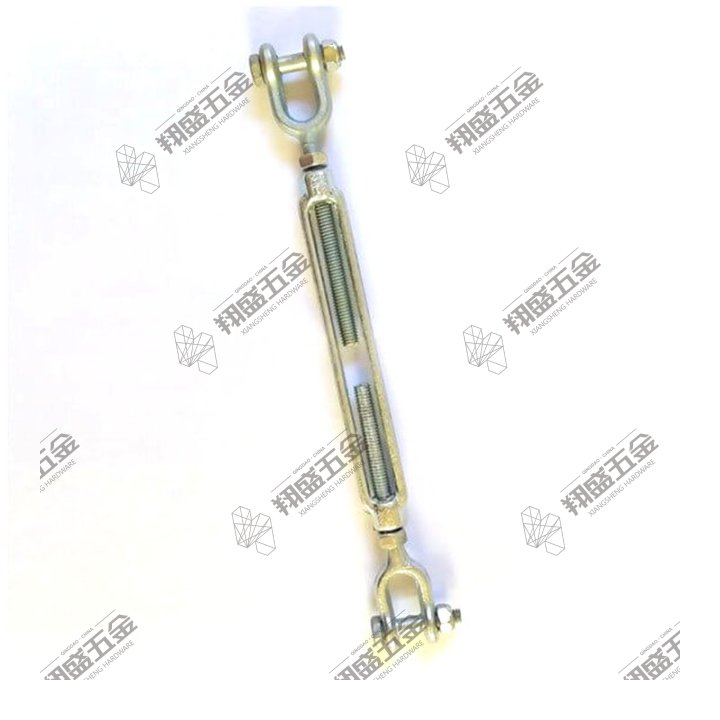

These US drop forged jaw‑and‑jaw turnbuckles are really well‑made. Drop‑forged body offers great strength, hot‑dip galvanized finish keeps rust away. Threads move smoothly for easy tension adjustment. Perfect for cable rigging work, will re‑order soon.
Our Japanese‑style extended long shank eye bolts strictly comply with JIS standard, made of high‑strength carbon steel, hot‑dip galvanized for rust & corrosion resistance. Extended long shank design meets special installation needs for construction, lifting, marine and heavy‑industry rigging scenarios. Available in full sizes, support OEM customization, factory direct supply with stable quality & fast delivery.
High quality 209-210 type anchor shackle, drop forged carbon steel material, heat treated for high tensile strength. Finished with hot dip galvanized to achieve excellent anti-rust and anti-corrosion effect, suitable for saltwater and outdoor harsh environment. Standard size, stable working load limit and reliable safety factor. Widely used for marine rigging, ship mooring, port hoisting, cargo fixing and various heavy duty lifting connection works. Solid structure, easy installation, durable and safe for long-term industrial use.
Heavy Duty Forged Steel D-Ring, 1/2" 3/4" 1" Weld-On/Bolt-On, 5000-30000 LBS Working Load Limit, Black Powder Coated/Hot Dip Galvanized, for Trailer, Truck, ATV, 4x4 Off-Road Recovery & Tie-Down Applications
Our heavy-duty D-rings are manufactured from high-strength drop-forged carbon steel (Grade 8.8 or Grade 10) with precision machining, ensuring superior durability and load capacity. Available in weld-on and bolt-on styles, with common sizes including 1/2", 3/4" and 1". Surface treatments include black powder coating, hot dip galvanizing or zinc plating for excellent rust and corrosion resistance. Each ring is rigorously tested to meet or exceed industry safety standards, with clear markings of working load limit (WLL) and break strength. Widely used in trailer tie-downs, truck bed anchors, ATV/UTV off-road recovery, 4x4 towing, cargo securing and marine applications.
We are professional rigging manufacturer supplying standard 1480 G type turnbuckles. Raw material 45#/40Cr forged steel with quenching and tempering treatment to guarantee working load limit. Strict surface hot dip galvanizing improves service life under coastal and marine condition. Flexible MOQ, full specifications ready in stock, third-party load test report available upon request.
