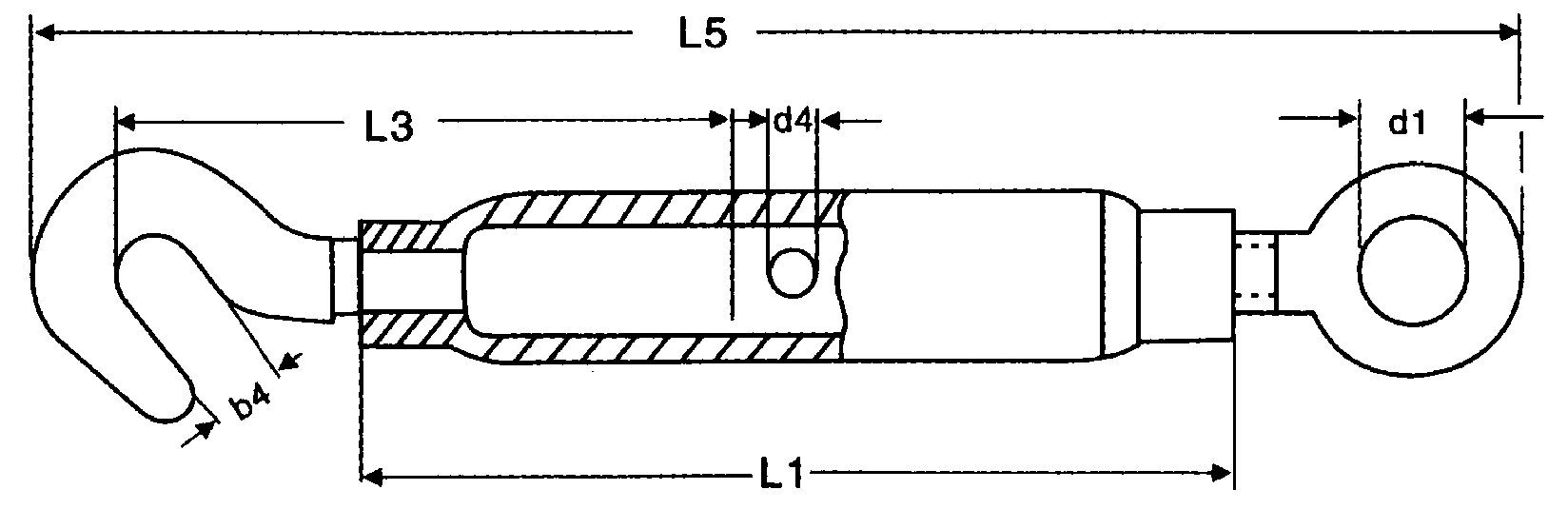

| THREAD | BODY LENGTH L1 | ADJUSTABLE | d4 | HOOK | EYE | Total Length Screwed in | ||||
| L3 | b1 | L3 | d1 | L5 | ||||||
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| M6 | 110 | 90 | 6 | 85 | 8.5 | 80 | 9 | 172 | ||
| M8 | 110 | 85 | 8 | 85 | 11 | 84 | 10 | 182 | ||
| M10 | 125 | 95 | 8 | 112 | 13.5 | 105 | 14 | 213 | ||
| M12 | 125 | 90 | 10 | 117 | 15.5 | 115 | 16 | 238 | ||
| M16 | 170 | 120 | 10 | 138 | 19 | 165 | 22 | 320 | ||
| M20 | 200 | 140 | 12 | 170 | 20.5 | 167 | 24 | 367 | ||
| M24 | 255 | 180 | 12 | 205 | 26 | 205 | 27 | 447 | ||
| M30 | 255 | 160 | 16 | 225 | 33 | 255 | 31 | 512 | ||
| M36 | 295 | 180 | 16 | 255 | 44 | 276 | 43 | 568 | ||
| M42 | 330 | 200 | 20 | 340 | 48 | 260 | 49 | 683 | ||
| M48 | 355 | 210 | 20 | 360 | 58 | 300 | 58 | 755 | ||

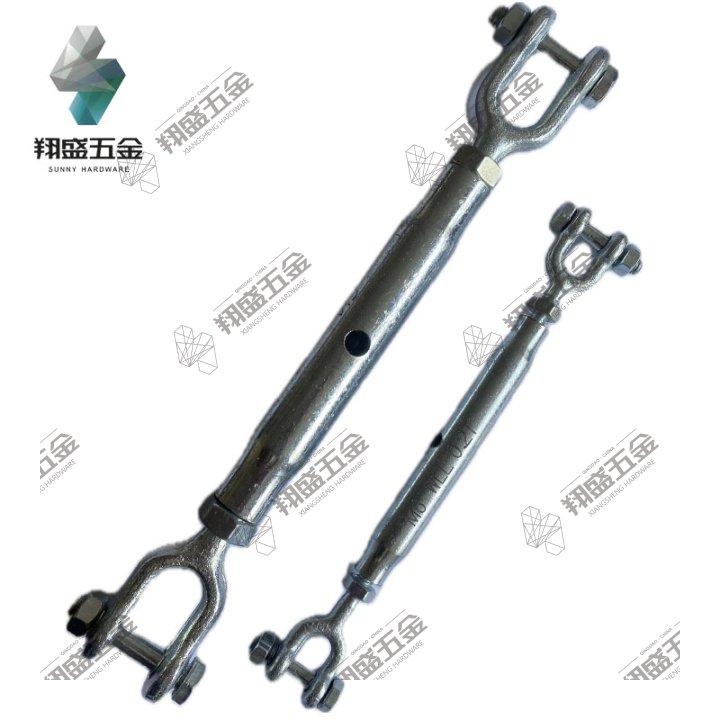

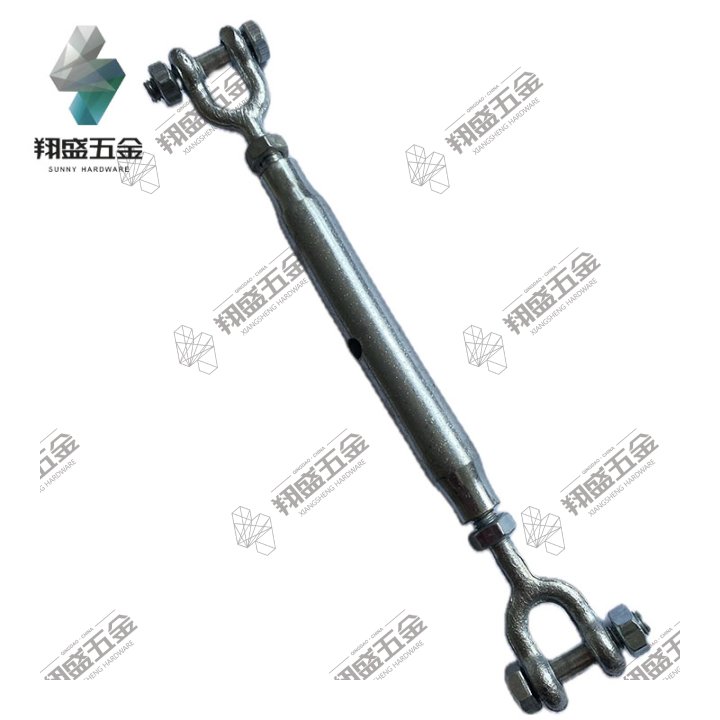

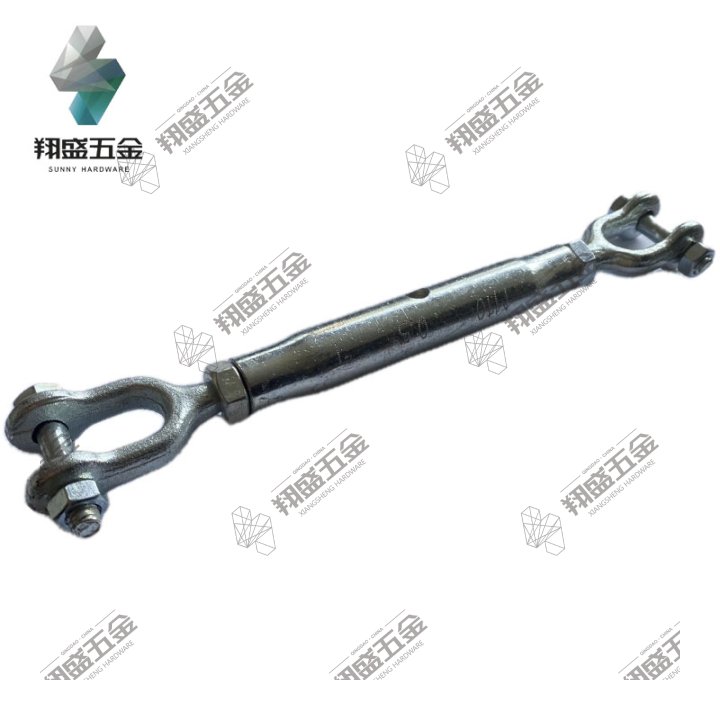

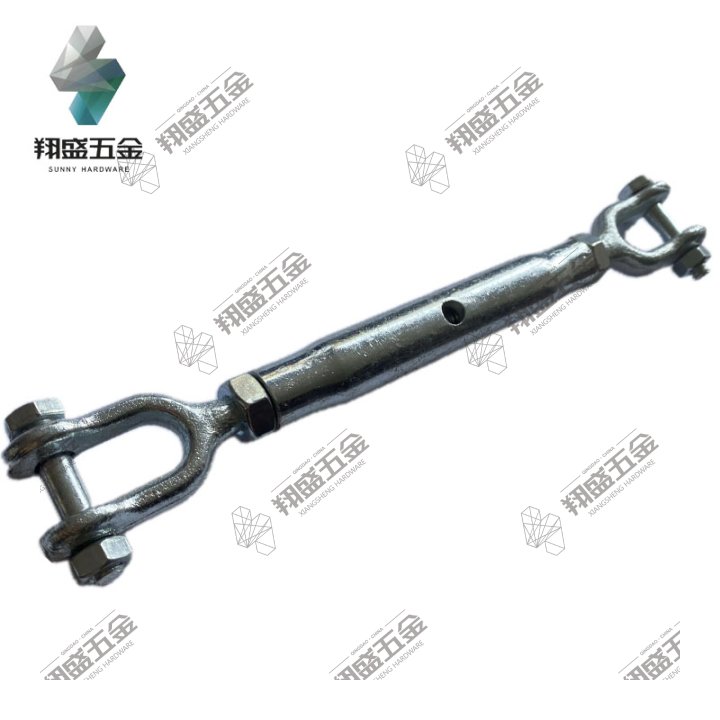

Application Scope of DIN1478 Eye & Jaw TurnbuckleMedium heavy static tensioning for marine guardrails, dock buoys, curtain wall tie rods, photovoltaic brackets and protective wire mesh, only for static use, not for lifting.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.

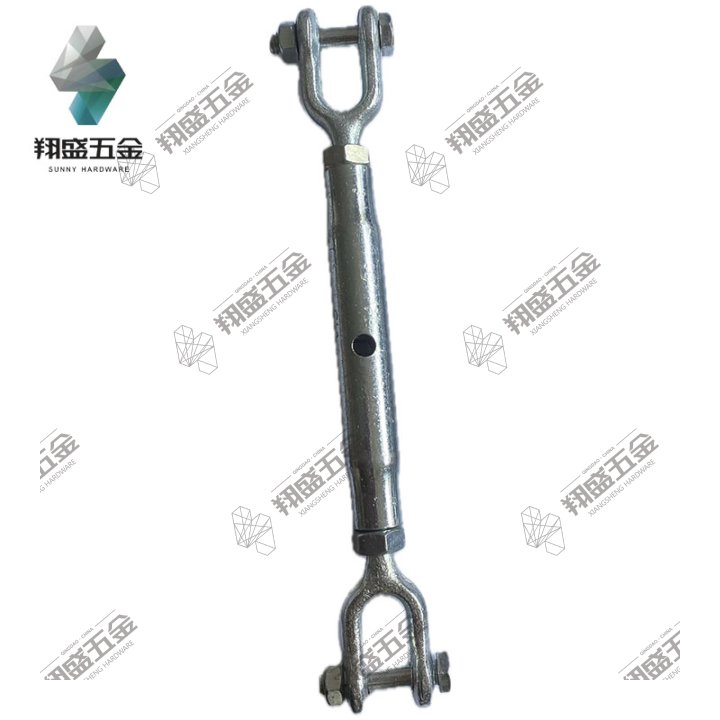

Very satisfied with the DIN1478 closed‑body turnbuckles. The seamless closed‑tube construction is far more durable than open‑body turnbuckles in harsh outdoor conditions. Both left‑hand and right‑hand threads are well‑machined, easy to fine‑tune cable tension. Hot‑dipped galvanized surface provides solid rust resistance. Complies with DIN1478 specification, ideal for cable railing, structural bracing and general rigging applications. Highly recommend for professional‑grade tension hardware
Standard DIN 1480 Hook & Eye Turnbuckle (also called hook-eye turnbuckle), made of high-quality malleable iron or carbon steel with electro-galvanized finish for rust resistance. Designed with one hook and one eye end, it allows easy connection and adjustable length for precise tension control. Available in sizes M6–M24, widely used in fencing, wire rope tensioning, construction, and general rigging applications. Factory direct supply, competitive price, OEM service available.
Heavy-duty US standard Eye & Jaw turnbuckle, whole piece drop forged and heat treated for superior tensile strength. Strict load test to meet American industrial requirements, competitive factory wholesale price. Third-party inspection test reports can be provided for customs clearance. Long-term cooperation with US distributors and importers is warmly welcomed.
US Type Drop Forged Turnbuckle UU/Jaw & Jaw, high strength carbon steel with hot dip galvanized finish. Manufactured by Xiangsheng Hardware, professional rigging factory. Adjustable tensioning, durable and corrosion resistant, widely used for lifting, construction and marine rigging.
