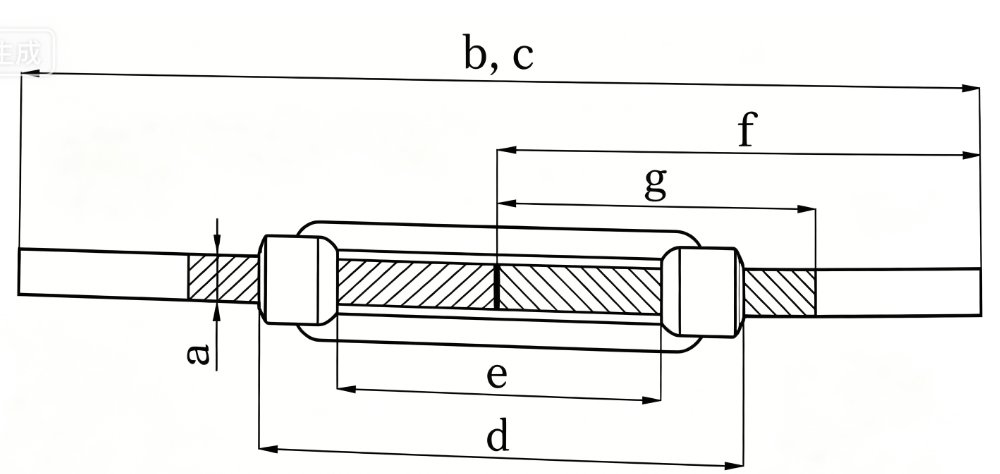

| Size(a) | Dimensions(mm) | Weight | |||||
| (mm) | b | c | d | e | f | g | (kg) |
| 6 | 240 | 326 | 110 | 86 | 120 | 65 | 0.093 |
| 8 | 240 | 320 | 110 | 80 | 120 | 65 | 0.14 |
| 10 | 300 | 389 | 125 | 89 | 150 | 75 | 0.29 |
| 12 | 300 | 383 | 125 | 83 | 150 | 75 | 0.40 |
| 14 | 330 | 420 | 140 | 90 | 165 | 85 | 0.66 |
| 16 | 400 | 516 | 170 | 116 | 200 | 100 | 0.89 |
| 20 | 440 | 572 | 200 | 132 | 220 | 120 | 1.60 |
| 22 | 440 | 585 | 220 | 145 | 220 | 130 | 2.27 |
| 24 | 520 | 697 | 255 | 177 | 260 | 150 | 2.82 |
| 30 | 520 | 695 | 255 | 165 | 260 | 160 | 4.23 |
| 36 | 600 | 780 | 295 | 185 | 300 | 180 | 7.10 |
Main Application Fields
Construction & Curtain Wall: Steel structure bracing, curtain wall tie rod calibration, scaffolding anchoring.
Marine & Dock: Yacht support stay rods, static mooring cable adjustment.
PV & Power Industry: Solar bracket diagonal stays, transmission tower guy wires.
Machinery & Municipal: Equipment frame positioning, billboard and awning steel support fixing.
Advantages
Compact short body for concealed embedded installation; direct threaded connection with fittings, anti-slip, high tensile strength for medium-heavy structure projects.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
Standard DIN 1480 Hook & Eye Turnbuckle (also called hook-eye turnbuckle), made of high-quality malleable iron or carbon steel with electro-galvanized finish for rust resistance. Designed with one hook and one eye end, it allows easy connection and adjustable length for precise tension control. Available in sizes M6–M24, widely used in fencing, wire rope tensioning, construction, and general rigging applications. Factory direct supply, competitive price, OEM service available.
We are professional rigging manufacturer supplying standard 1480 G type turnbuckles. Raw material 45#/40Cr forged steel with quenching and tempering treatment to guarantee working load limit. Strict surface hot dip galvanizing improves service life under coastal and marine condition. Flexible MOQ, full specifications ready in stock, third-party load test report available upon request.
DIN 1480 Eye & Eye (OO) turnbuckle, drop forged carbon steel, galvanized finish. M6–M36 available. Open body design, left-right thread for precise length adjustment. Ideal for wire rope tensioning, lifting, construction and marine rigging.
