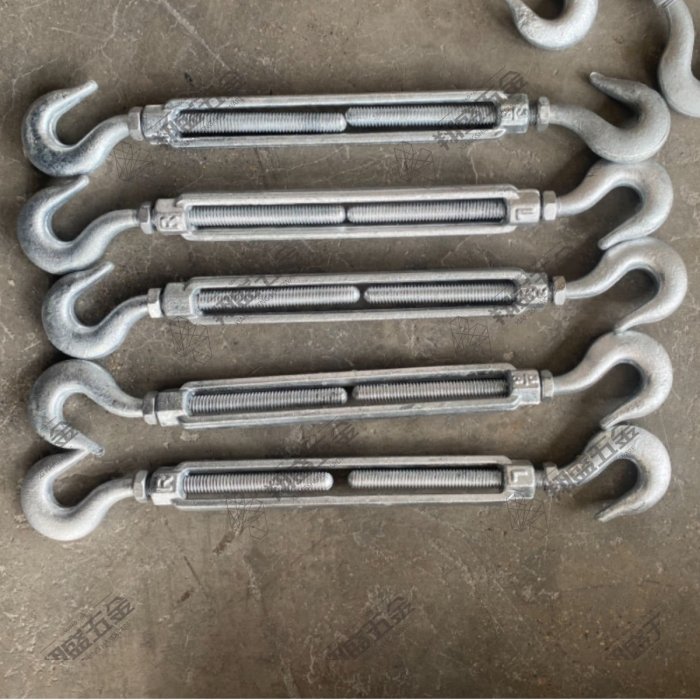

• Eye and Eye, Hook and Hook, Eye and Hook.
• Casting
• Zinc Plated
• Satisfies DIN requirements.
• Size embossed on each turnbuckle.
<
| Size(a) | Dimensions(mm) | Weight | ||||||
| (mm) | b | c | d | e | f | g | h | (kg) |
| 6 | 184 | 270 | 110 | 92 | 55 | 8 | 15 | 0.11 |
| 8 | 200 | 280 | 110 | 100 | 57 | 10.5 | 15 | 0.2 |
| 10 | 324 | 323 | 125 | 117 | 68 | 13 | 11 | 0.28 |
| 12 | 260 | 343 | 125 | 130 | 70 | 16 | 12 | 0.43 |
| 14 | 278 | 368 | 140 | 139 | 75 | 18 | 15 | 0.61 |
| 16 | 322 | 438 | 170 | 161 | 88 | 20 | 17 | 1 |
| 20 | 382 | 514 | 200 | 191 | 105 | 21 | 21 | 1.6 |
| 22 | 456 | 601 | 220 | 228 | 118 | 24 | 28 | 2.2 |
| 24 | 496 | 673 | 255 | 248 | 135 | 26 | 33 | 2.8 |
| 30 | 550 | 715 | 255 | 275 | 135 | 34 | 35 | 4.1 |
| 33 | 600 | 799 | 295 | 300 | 148 | 38 | 40 | 6 |
| 36 | 640 | 825 | 295 | 320 | 158 | 36 | 45 | 8.3 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
We are professional rigging manufacturer supplying standard 1480 G type turnbuckles. Raw material 45#/40Cr forged steel with quenching and tempering treatment to guarantee working load limit. Strict surface hot dip galvanizing improves service life under coastal and marine condition. Flexible MOQ, full specifications ready in stock, third-party load test report available upon request.
