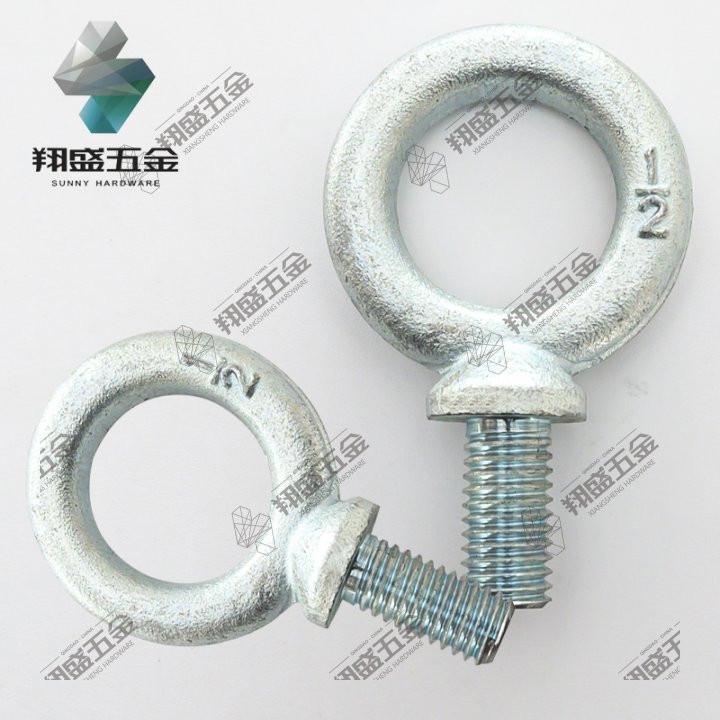

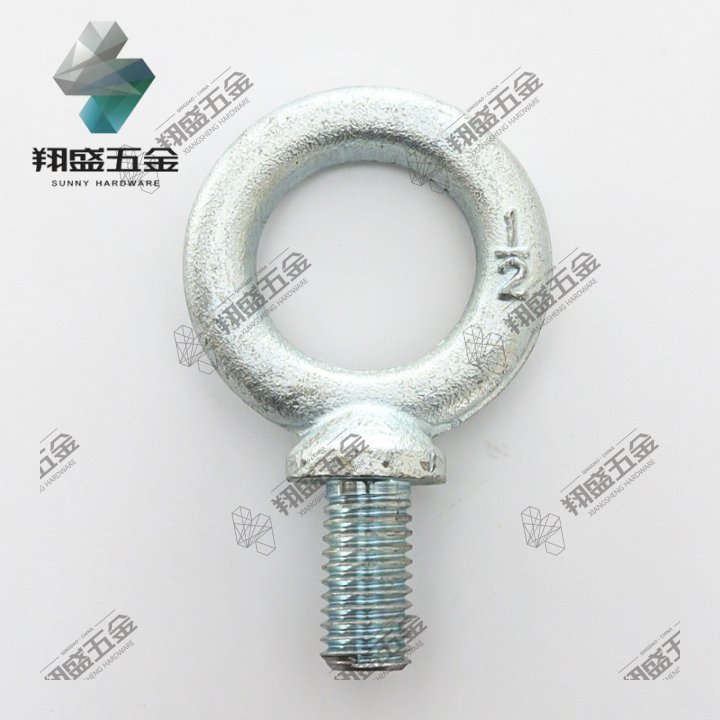

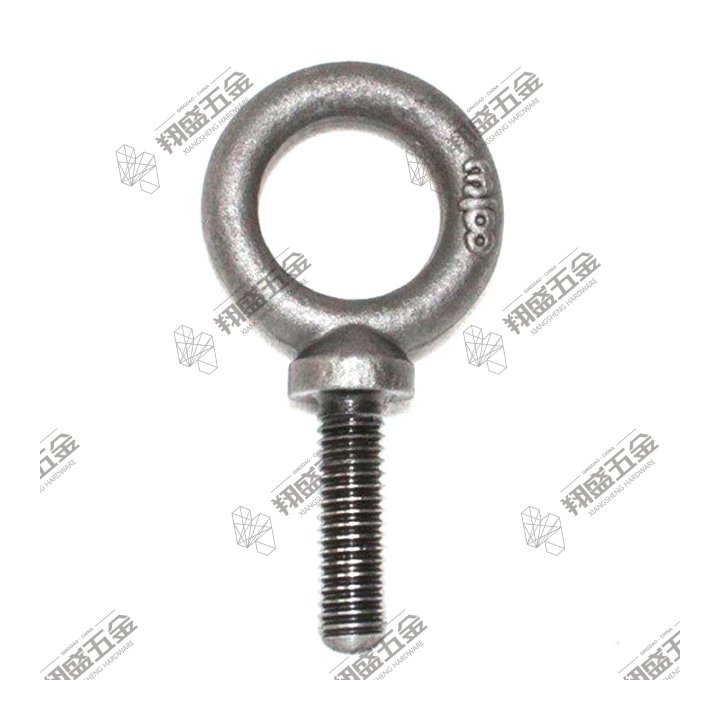

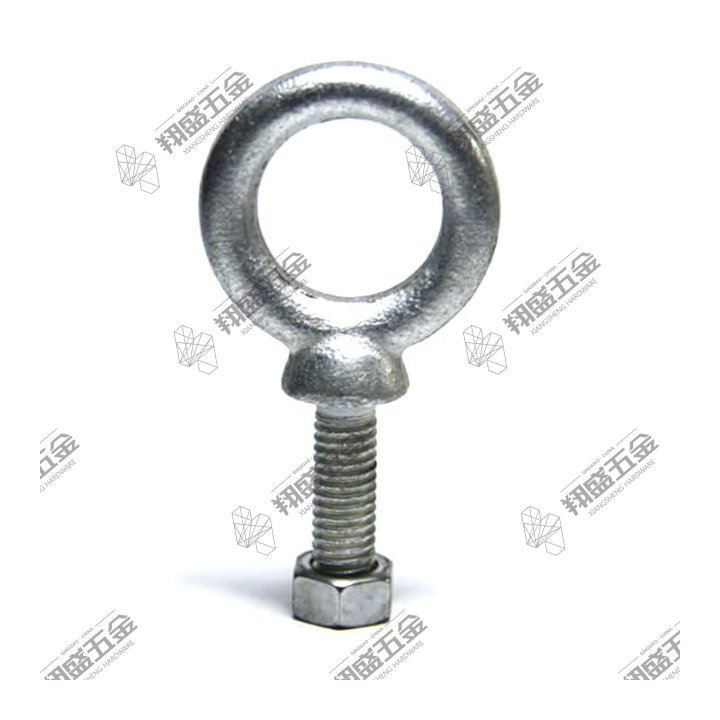

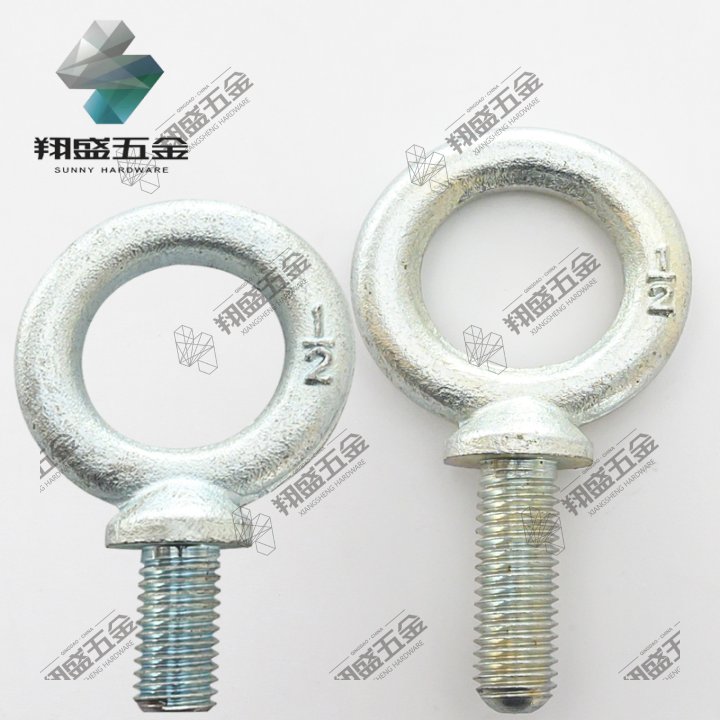

• U.S Type Drop Forged Shoulder Machinery Eye Bolt
• Drop Forged
• Galvanized, Hot Dipped Galvanized
| Shank Dia&Length (in.) | Working Load Limited (lbs.) | Dimensions (mm) | |||||
| A | B | C | E | F | G | ||
| 1/4 x 2 | 500 | 0.25 | 0.5 | 1 | 1.5 | 2 | 3.06 |
| 1/4 x 4 | 500 | 0.25 | 0.5 | 1 | 2.5 | 4 | 5.06 |
| 5/16 x 2 1/4 | 800 | 0.31 | 0.62 | 1.25 | 1.5 | 2.25 | 3.56 |
| 5/16 x 4 1/4 | 800 | 0.31 | 0.62 | 1.25 | 2.5 | 4.25 | 5.56 |
| 3/8 x 2 1/2 | 1200 | 0.38 | 0.75 | 1.5 | 1.5 | 2.5 | 4.12 |
| 3/8 x 4 1/2 | 1200 | 0.38 | 0.75 | 1.5 | 2.5 | 4.5 | 6.12 |
| 3/8 x 6 | 1200 | 0.38 | 0.75 | 1.5 | 2.5 | 6 | 7.62 |
| 1/2 x 3 1/4 | 2200 | 0.5 | 1 | 2 | 1.5 | 3.25 | 5.38 |
| 1/2 x 6 | 2200 | 0.5 | 1 | 2 | 3 | 6 | 8.12 |
| 1/2 x 8 | 2200 | 0.5 | 1 | 2 | 3 | 8 | 10.12 |
| 1/2 x 10 | 2200 | 0.5 | 1 | 2 | 3 | 10 | 12.12 |
| 1/2 x 12 | 2200 | 0.5 | 1 | 2 | 3 | 12 | 14.12 |
| 1/2 x 15 | 2200 | 0.5 | 1 | 2 | 4 | 15 | 17.12 |
| 5/8 x 4 | 3500 | 0.62 | 1.25 | 2.5 | 2 | 4 | 6.69 |
| 5/8 x 6 | 3500 | 0.62 | 1.25 | 2.5 | 3 | 6 | 8.69 |
| 5/8 x 8 | 3500 | 0.62 | 1.25 | 2.5 | 3 | 8 | 10.69 |
| 5/8 x 10 | 3500 | 0.62 | 1.25 | 2.5 | 3 | 10 | 12.69 |
| 5/8 x 12 | 3500 | 0.62 | 1.25 | 2.5 | 4 | 12 | 14.69 |
| 5/8 x 15 | 3500 | 0.62 | 1.25 | 2.5 | 5 | 15 | 17.69 |
| 5/8 x 24 | 3500 | 0.62 | 1.25 | 2.5 | 6 | 24 | 26.69 |
| 3/4 x 4 1/2 | 5200 | 0.75 | 1.5 | 3 | 2 | 4.5 | 7.69 |
| 3/4 x 6 | 5200 | 0.75 | 1.5 | 3 | 3 | 6 | 9.19 |
| 3/4 x 8 | 5200 | 0.75 | 1.5 | 3 | 3 | 8 | 11.19 |
| 3/4 x 10 | 5200 | 0.75 | 1.5 | 3 | 3 | 10 | 13.19 |
| 3/4 x 12 | 5200 | 0.75 | 1.5 | 3 | 4 | 12 | 15.19 |
| 3/4 x 15 | 5200 | 0.75 | 1.5 | 3 | 5 | 15 | 18.19 |
| 7/8 x 5 | 7200 | 0.88 | 1.75 | 3.5 | 2.5 | 5 | 8.75 |
| 7/8 x 8 | 7200 | 0.88 | 1.75 | 3.5 | 4 | 8 | 11.75 |
| 7/8 x 12 | 7200 | 0.88 | 1.75 | 3.5 | 4 | 12 | 15.75 |
| 1 x 6 | 10000 | 1 | 2 | 4 | 3 | 6 | 10.31 |
| 1 x 9 | 10000 | 1 | 2 | 4 | 4 | 9 | 13.31 |
| 1 x 12 | 10000 | 1 | 2 | 4 | 4 | 12 | 16.31 |
| 1 x 18 | 10000 | 1 | 2 | 4 | 7 | 18 | 22.31 |
| 1 1/4 x 8 | 15200 | 1.25 | 2.5 | 5 | 4 | 8 | 13.38 |
| 1 1/4 x 12 | 15200 | 1.25 | 2.5 | 5 | 4 | 12 | 17.38 |
| 1 1/4 x 20 | 15200 | 1.25 | 2.5 | 5 | 6 | 20 | 25.38 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
DIN 582 forged eye nut, standard lifting ring nut for industrial hoisting. Carbon steel and stainless steel optional, anti-corrosion surface finished. Complete specifications, clear load marking, high safety. Ideal for machinery assembly and heavy load lifting rigging.
JIS B 1168 lifting eye bolt, also known as JIS 1168 eyebolt, is drop-forged per Japanese Industrial Standard B 1168. Made of high-strength carbon steel (C15/C15E) or stainless steel SUS304/SUS316. Available in sizes M6–M64, with surface finishes including zinc plated, hot-dip galvanized (HDG), and plain. Each bolt is marked with Working Load Limit (WLL) for safe vertical and angular lifting. Widely used in machinery, equipment, motors, molds, containers, and industrial rigging applications. High tensile strength, reliable performance, and cost-effective heavy duty lifting hardware.
IS B1169 lifting eye nut is manufactured in accordance with Japanese industrial standards. Adopts drop-forged process with high strength and excellent load-bearing capacity. Available in carbon steel and stainless steel SUS304/SUS316. Multiple surface treatments such as zinc plating and hot-dip galvanized for anti-rust and corrosion resistance. Clear load marking, safe and reliable. Widely used for machinery, molds, containers and industrial hoisting rigging.
Factory direct G291 eye bolt, strictly produced per US standard. Drop-forged, integral heat treatment for maximum durability and wear resistance. Hot-dip galvanized after threading, supplied with matching hex nuts. Complete specifications, OEM/ODM supported. Professional heavy duty lifting rigging fitting for global industrial customers.
G-400 US Type Forged Eye Nut, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. UNC class 2 thread, meets ASME B30.26. WLL: 520–22500lbs, sizes 1/4"–2". 5:1 safety factor. Designed for straight vertical lifting. High strength, impact-resistant, corrosion-proof. Ideal for equipment lifting, marine, machinery rigging.
DIN 580 stainless steel eye bolt is made of high-quality stainless steel, produced strictly in accordance with DIN 580 standard. It features high tensile strength, precise thread size, smooth surface and excellent load-bearing performance. With outstanding rust and corrosion resistance, it is suitable for marine environment, mechanical lifting, rigging connection, equipment fastening and outdoor engineering applications. Complete standard sizes are available, OEM and customized service are supported.
