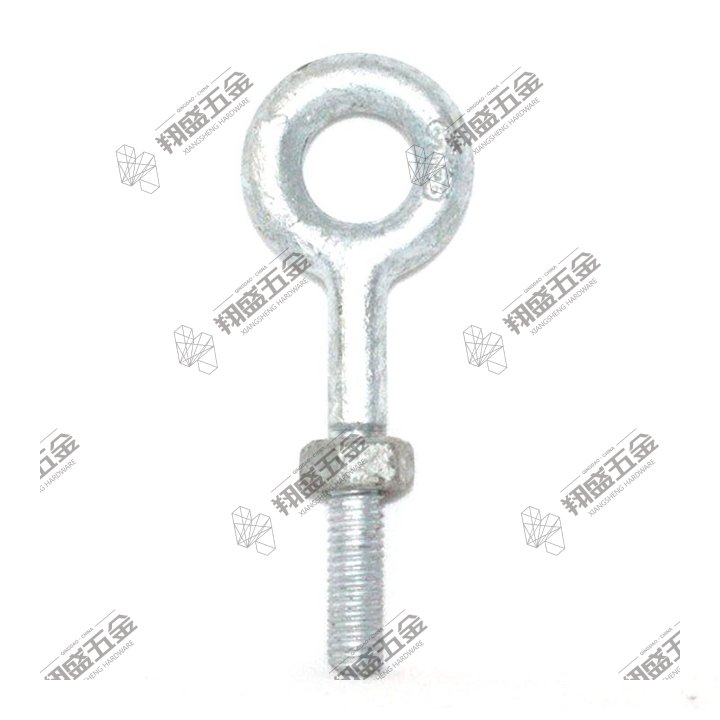

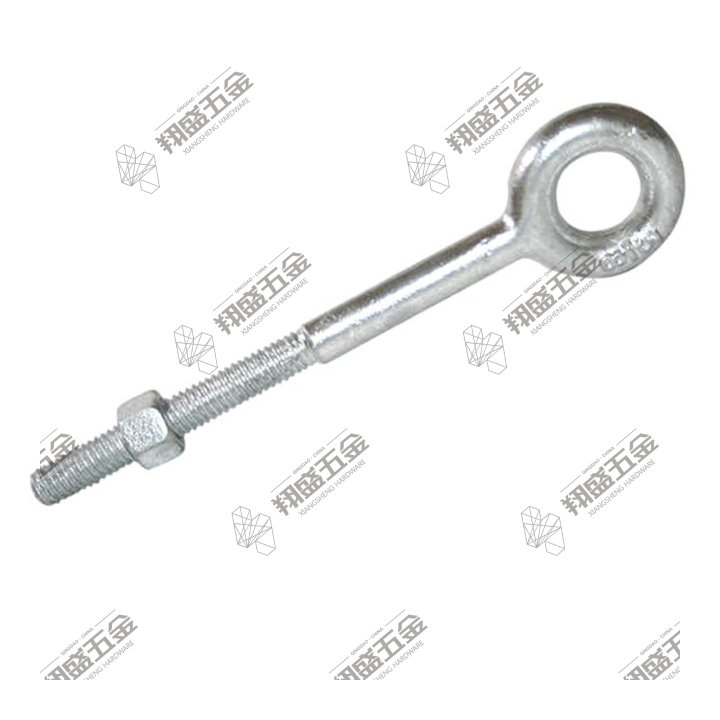

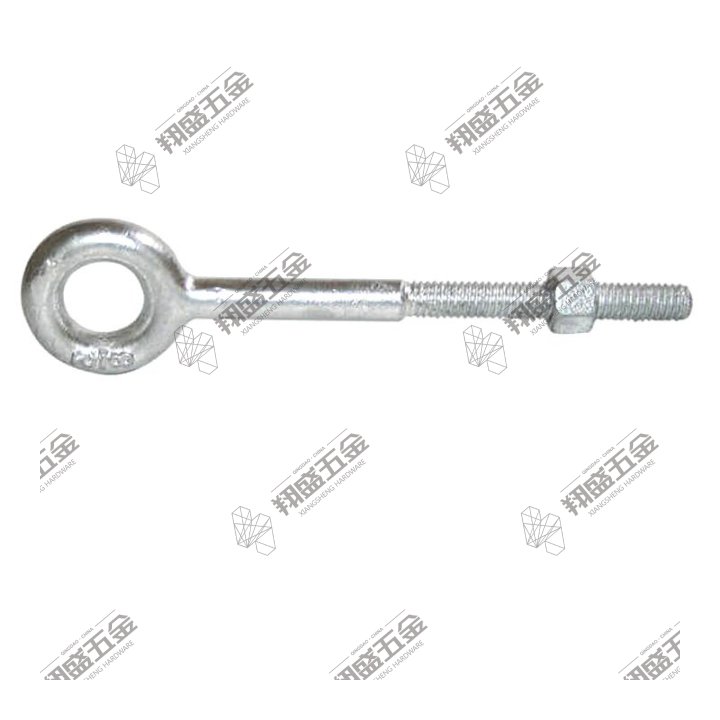

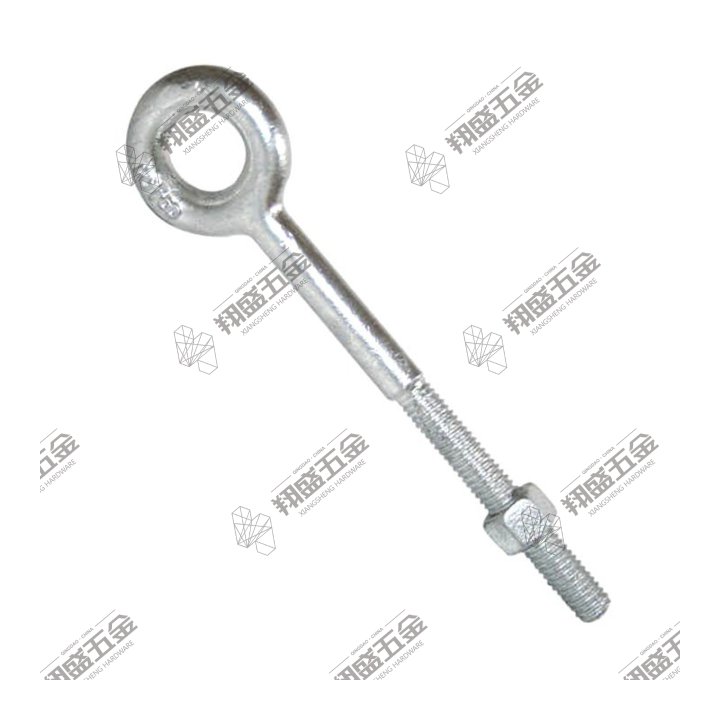

• Regular Nut Eye Bolt G291
• Drop Forged
• Galvanized, Hot Dipped Galvanized

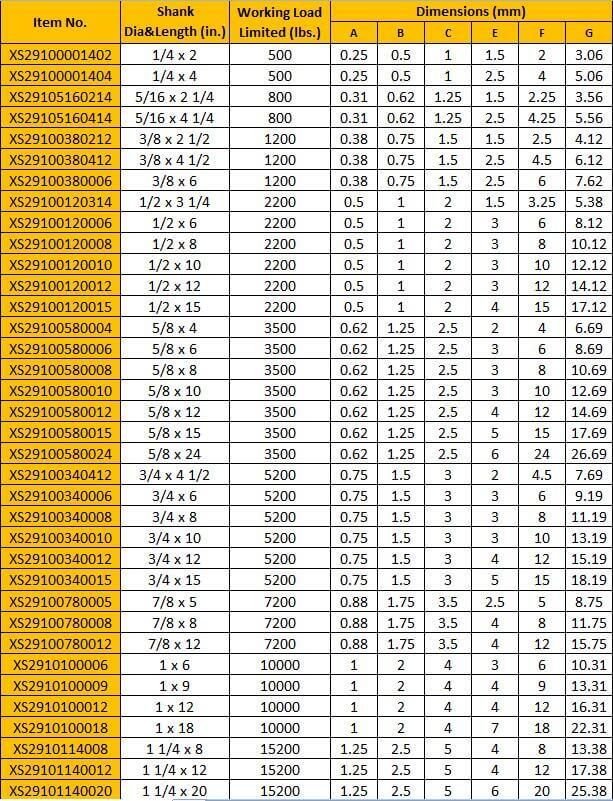

| Size | WLL | Weight | Dimensions(in) | ||||||||
| (A*F) | (lbs) | 100pcs | A | B | C | D | E | F | G | H | J |
| (in) | (lbs) | ||||||||||
| 1/4*2 | 500 | 6.61 | 0.25 | 0.5 | 0.88 | 0.19 | 1.5 | 2 | 2.94 | 0.5 | 0.47 |
| 1/4*4 | 500 | 9.61 | 0.25 | 0.5 | 0.88 | 0.19 | 2.5 | 4 | 4.94 | 0.5 | 0.47 |
| 5/16*2 1/4 | 800 | 12.50 | 0.31 | 0.62 | 1.12 | 0.25 | 1.5 | 2.25 | 3.5 | 0.69 | 0.56 |
| 5/16*4 1/4 | 800 | 18.75 | 0.31 | 0.62 | 1.12 | 0.25 | 2.5 | 4.25 | 5.5 | 0.69 | 0.56 |
| 3/8*2 1/2 | 1200 | 21.40 | 0.38 | 0.75 | 1.38 | 0.31 | 1.5 | 2.5 | 3.97 | 0.78 | 0.66 |
| 3/8*4 1/2 | 1200 | 25.30 | 0.38 | 0.75 | 1.38 | 0.31 | 2.5 | 4.5 | 5.97 | 0.78 | 0.66 |
| 1/2*3 1/4 | 2200 | 42.60 | 0.5 | 1 | 1.75 | 0.38 | 1.5 | 3.25 | 5.12 | 1 | 0.91 |
| 1/2*6 | 2200 | 56.80 | 0.5 | 1 | 1.75 | 0.38 | 3 | 6 | 7.88 | 1 | 0.91 |
| 5/8*4 | 3500 | 68.60 | 0.62 | 1.25 | 2.25 | 0.5 | 2 | 4 | 6.44 | 1.31 | 1.12 |
| 5/8*6 | 3500 | 102.40 | 0.62 | 1.25 | 2.25 | 0.5 | 3 | 6 | 8.44 | 1.31 | 1.12 |
| 3/4*4 1/2 | 5200 | 144.50 | 0.75 | 1.5 | 2.75 | 0.62 | 2 | 4.5 | 7.44 | 1.56 | 1.38 |
| 3/4*6 | 5200 | 167.50 | 0.75 | 1.5 | 2.75 | 0.62 | 3 | 6 | 8.94 | 1.56 | 1.38 |
| 7/8*5 | 7200 | 225.00 | 0.88 | 1.75 | 3.25 | 0.75 | 2.5 | 5 | 8.47 | 1.84 | 1.56 |
| 1*6 | 10000 | 366.30 | 1 | 2 | 3.75 | 0.88 | 3 | 6 | 9.97 | 2.09 | 1.81 |
| 1*9 | 10000 | 422.50 | 1 | 2 | 3.75 | 0.88 | 4 | 9 | 12.97 | 2.09 | 1.81 |
| 1 1/4*8 | 15200 | 650.00 | 1.25 | 2.5 | 4.5 | 1 | 4 | 8 | 12.72 | 2.47 | 2.28 |
| 1 1/4*12 | 15200 | 795.00 | 1.25 | 2.5 | 4.5 | 1 | 4 | 12 | 16.72 | 2.47 | 2.28 |
| 1 1/2*15 | 21400 | 1425.00 | 1.5 | 3 | 5.5 | 1.25 | 6 | 15 | 20.75 | 3 | 2.75 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
Our Japanese‑style extended long shank eye bolts strictly comply with JIS standard, made of high‑strength carbon steel, hot‑dip galvanized for rust & corrosion resistance. Extended long shank design meets special installation needs for construction, lifting, marine and heavy‑industry rigging scenarios. Available in full sizes, support OEM customization, factory direct supply with stable quality & fast delivery.
IS B1169 lifting eye nut is manufactured in accordance with Japanese industrial standards. Adopts drop-forged process with high strength and excellent load-bearing capacity. Available in carbon steel and stainless steel SUS304/SUS316. Multiple surface treatments such as zinc plating and hot-dip galvanized for anti-rust and corrosion resistance. Clear load marking, safe and reliable. Widely used for machinery, molds, containers and industrial hoisting rigging.
Factory direct G291 eye bolt, strictly produced per US standard. Drop-forged, integral heat treatment for maximum durability and wear resistance. Hot-dip galvanized after threading, supplied with matching hex nuts. Complete specifications, OEM/ODM supported. Professional heavy duty lifting rigging fitting for global industrial customers.
