• US Type Drop Forged Regular Swivel G402
• Drop Forged
• Galvanized, Hot Dipped Galvanized

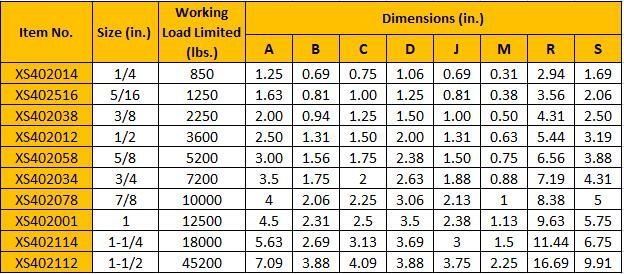

| SIZE(IN) | WORKING LOAD LIMIT(LBS) | DIMENSIONS(IN) | WEIGHT EACH (LBS.) | ||||||||

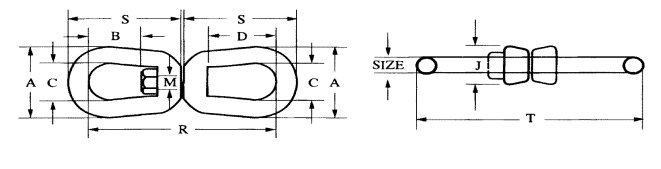

| A | B | C | D | J | M | R | S | T | |||
| 1/4 | 850 | 1.25 | 0.69 | 0.75 | 1.06 | 0.69 | 0.31 | 2.94 | 1.69 | 3.44 | 0.21 |
| 5/16 | 1250 | 1.63 | 0.81 | 1 | 1.25 | 0.81 | 0.38 | 3.56 | 2.06 | 4.19 | 0.39 |
| 3/8 | 2250 | 2 | 0.94 | 1.25 | 1.5 | 1 | 0.5 | 4.31 | 2.5 | 5.06 | 0.75 |
| 1/2 | 3600 | 2.5 | 1.31 | 1.5 | 2 | 1.31 | 0.63 | 5.44 | 3.19 | 6.44 | 1.43 |
| 5/8 | 5200 | 3 | 1.56 | 1.75 | 2.38 | 1.5 | 0.75 | 6.56 | 3.88 | 7.81 | 2.5 |
| 3/4 | 7200 | 3.5 | 1.75 | 2 | 2.63 | 1.88 | 0.88 | 7.19 | 4.31 | 8.69 | 4.13 |
| 7/8 | 10000 | 4 | 2.06 | 2.25 | 3.06 | 2.13 | 1 | 8.38 | 5 | 10.13 | 6.25 |
| 1 | 12500 | 4.5 | 2.31 | 2.5 | 3.5 | 2.38 | 1.13 | 9.63 | 5.75 | 11.63 | 9 |
| 1-1/4 | 18000 | 5.63 | 2.69 | 3.13 | 3.69 | 3 | 1.38 | 11.13 | 6.75 | 13.36 | 16.37 |
| 1-1/2 | 45200 | 7 | 4.19 | 4 | 4.19 | 4 | 2.25 | 17.13 | 10 | 20.13 | 49.06 |
minimum breaking load is 5 times the w.l.l.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
G-401 US Type Chain Swivel, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. Compliant with Federal Specification RR-C-271F. WLL: 850–45200lbs, sizes 1/4"–1 1/2". 360° swivel prevents twisting/knotting. Ideal for lifting, marine, rigging, chain connection. High strength, corrosion-resistant, durable & safe.
G-400 US Type Forged Eye Nut, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. UNC class 2 thread, meets ASME B30.26. WLL: 520–22500lbs, sizes 1/4"–2". 5:1 safety factor. Designed for straight vertical lifting. High strength, impact-resistant, corrosion-proof. Ideal for equipment lifting, marine, machinery rigging.
G80 Clevis Slip Hook (Goat Hook) | Material: High-strength alloy steel, forged & heat-treated (quenched & tempered). WLL: 1.12T–12.5T, safety factor 4:1. Design: Horn-shaped jaw for secure chain grip, anti-slip latch, fits EN818-2 G80 chains. Certification: CE, TUV, GS approved. Application: Lifting, rigging, towing in construction, mining, logistics.
Premium US-style eye grab hook, drop-forged from 45# carbon steel or 40Cr alloy steel, quenched & tempered for high strength. Featured shallow throat design secures chain tightly to prevent slipping. Sizes: 1/4"–1/2"; WLL: 2,600–15,000 lbs. Surface: powder coated/electro-galvanized. Ideal for cargo lashing, towing & overhead lifting. 4:1 safety factor, ISO certified. Factory direct, OEM/ODM available.
US Type Eye Cargo Hook is drop forged with high-strength steel, heat treated for excellent toughness and load capacity. Equipped with reliable safety latch to prevent falling off. Galvanized or powder coated surface for rust resistance. Widely used in crane lifting, cargo binding, trailer towing and rigging fields. Factory direct supply, stable quality and complete specifications.
322 US Type Swivel Hook, drop forged high carbon steel with integral heat treatment. 360° free rotation prevents chain twisting and tangling. Equipped with safety latch for anti-drop protection. Galvanized surface offers great rust resistance. Widely used for crane lifting, cargo binding and rigging applications. Factory supply, complete specifications.
