| Size | wll | Weight | Dimensions（MM） | |||||||||
| (T) | (KG) | A | B | C | D | E | F | G | K | M | Tolerance +/- | |
| M5 | 0.1 | 0.013 | 7 | 5 | 4 | 5 | 15 | 10 | 15 | 28 | 23 | +/-5% |
| M6 | 0.16 | 0.021 | 8 | 6 | 5 | 6 | 18 | 12 | 18 | 33 | 26.5 | +/-5% |
| M8 | 0.25 | 0.048 | 11 | 8 | 7 | 8 | 25 | 16 | 23.5 | 44 | 33.5 | +/-5% |
| M10 | 0.4 | 0.083 | 14 | 10 | 8 | 10 | 30 | 20 | 29.5 | 55 | 41 | +/-5% |
| M12 | 0.6 | 0.156 | 17 | 12 | 10 | 12 | 37 | 24 | 35.5 | 66 | 50 | +/-5% |
| M16 | 1 | 0.33 | 21 | 16 | 13 | 15 | 47 | 32 | 48.5 | 88 | 62 | +/-5% |
| M20 | 1.6 | 0.71 | 27 | 20 | 17 | 19 | 61 | 40 | 60.5 | 110 | 82 | +/-5% |
| M22 | 2 | 0.94 | 30 | 22 | 19 | 21 | 68 | 44 | 66.5 | 121 | 90 | +/-5% |
| M24 | 2.5 | 1.35 | 33 | 24 | 21 | 23 | 75 | 48 | 72.5 | 132 | 99 | +/-5% |
| M27 | 3 | 1.89 | 38 | 27 | 24 | 26 | 86 | 54 | 83 | 150 | 115 | +/-5% |
| M30 | 4 | 2.53 | 42 | 30 | 27 | 29 | 96 | 60 | 90.5 | 165 | 125 | +/-5% |
| M36 | 5 | 4 | 47 | 36 | 30 | 33 | 107 | 72 | 110.5 | 198 | 139 | +/-5% |
| M39 | 6 | 5.1 | 53 | 39 | 34 | 37 | 121 | 78 | 119 | 215 | 154.5 | +/-5% |
| M45 | 8 | 7.92 | 60 | 45 | 38 | 41 | 136 | 90 | 138.5 | 248 | 175.5 | +/-5% |
| M48 | 10 | 9.87 | 66 | 48 | 42 | 45 | 150 | 96 | 146 | 264 | 195 | +/-5% |
| M52 | 12 | 13.68 | 73 | 52 | 47 | 50 | 167 | 104 | 157 | 286 | 211 | +/-5% |
| M60 | 16 | 20.23 | 81 | 60 | 52 | 55 | 185 | 120 | 183.5 | 330 | 232 | +/-5% |
| M68 | 20 | 28.51 | 90 | 68 | 58 | 61 | 206 | 136 | 209.5 | 374 | 259 | +/-5% |
| M72 | 25 | 33.93 | 100 | 72 | 63 | 67 | 226 | 144 | 219.5 | 396 | 284 | +/-5% |
Heavy-Duty Industrial Lifting (Core Application)Single-point vertical lifting via factory overhead cranes, gantry cranes and forklifts: machine tools, moulds, steel coils, pressure vessels and large cabinet equipment;Straight-line hoisting of steel billets, castings and rolled steel components in metallurgical and forging workshops;Lifting and assembly of transformers, generator sets and high-voltage units during power plant equipment maintenance;Tensioning and fixed connection for production line tooling, heavy fixtures and equipment bases.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.

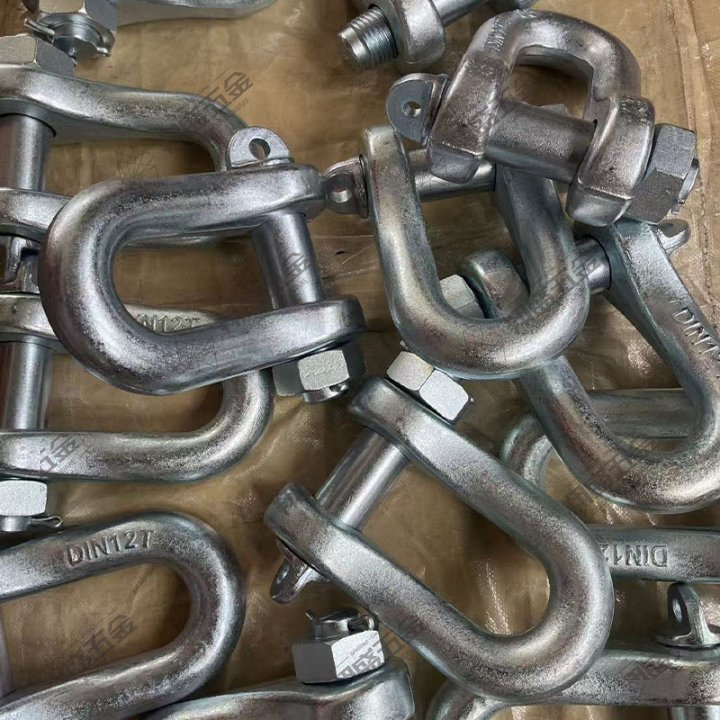

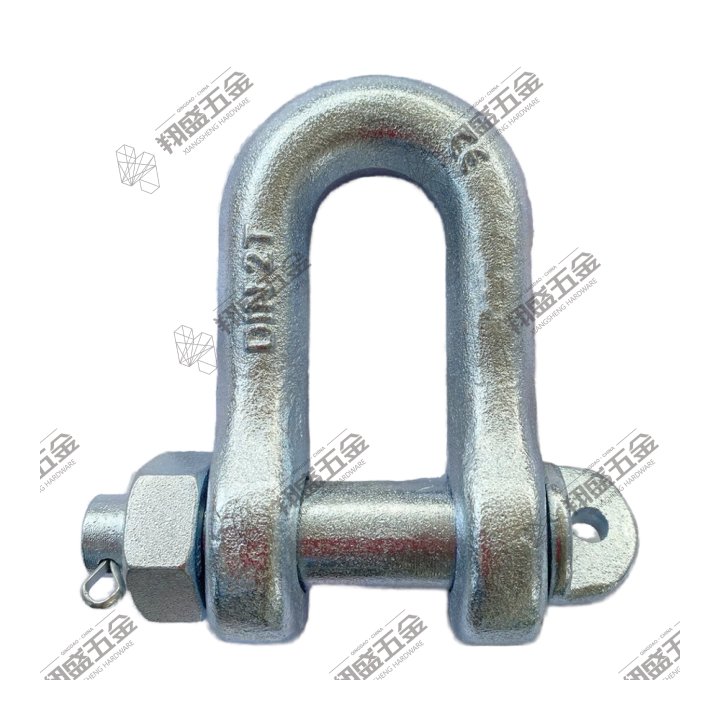

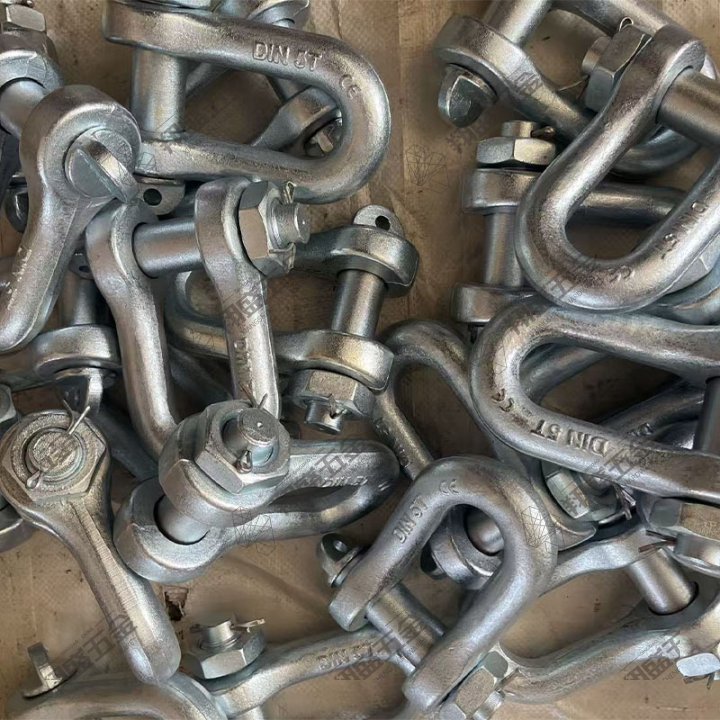

Good quality DIN82101 Type C shackles. Solid build, accurate size, threads on the pin run clean. Used for regular lifting tasks, holds load securely without deformation. Galvanized finish looks durable against rust. Fast delivery, well packed. Will buy more.

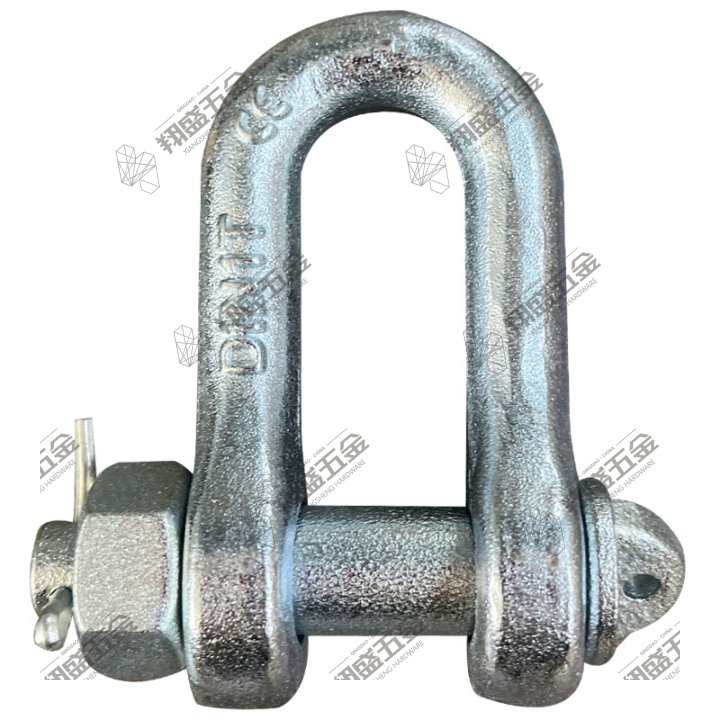

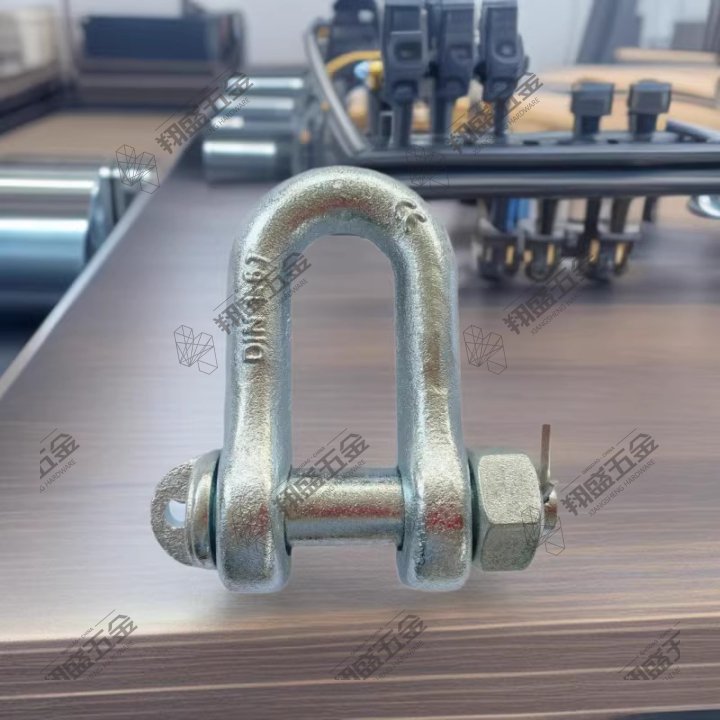

High quality DIN 82101 D-type shackle, drop forged carbon steel material, heat treated for high tensile strength. Available in hot dip galvanized and plain finish, good anti-rust performance. Standard European type Dee shackle with stable working load limit, safe 6:1 safety factor. Widely used for lifting, rigging, towing, marine, construction and cargo binding. Strict quality inspection, durable and reliable for heavy duty industrial use.
Premium G2130 Bolt-Type Anchor Shackle – Forged Alloy Steel, Heavy Duty Lifting & Rigging Shackle, Hot-Dip Galvanized, WLL 0.5T-150T, US Standard 2130 Bow Shackle for Marine, Construction & Mining
Our G2130 (2130) bolt-type anchor shackle is a US-standard heavy-duty bow shackle crafted from high-grade carbon steel body and alloy steel pin, drop-forged, quenched & tempered for maximum strength and durability. Designed with a safety bolt and cotter pin, it ensures secure connection and prevents loosening under load. Available in hot-dip galvanized (G) or self-colored (S) finishes, providing excellent corrosion resistance for harsh environments. With a safety factor of 6:1 and working load limit (WLL) ranging from 0.5 tons to 150 tons, it meets ASME B30.26 and ABS marine standards, ideal for lifting, rigging, towing, and anchoring applications in marine, construction, mining, and oil & gas industries.
JIS B 1168 lifting eye bolt, also known as JIS 1168 eyebolt, is drop-forged per Japanese Industrial Standard B 1168. Made of high-strength carbon steel (C15/C15E) or stainless steel SUS304/SUS316. Available in sizes M6–M64, with surface finishes including zinc plated, hot-dip galvanized (HDG), and plain. Each bolt is marked with Working Load Limit (WLL) for safe vertical and angular lifting. Widely used in machinery, equipment, motors, molds, containers, and industrial rigging applications. High tensile strength, reliable performance, and cost-effective heavy duty lifting hardware.
