● G80 US Type Welded Master Link A344
● Quenched and Tempered.
● Powder coated.
● Safety Factor: 4:1.
● Forged alloy steel.

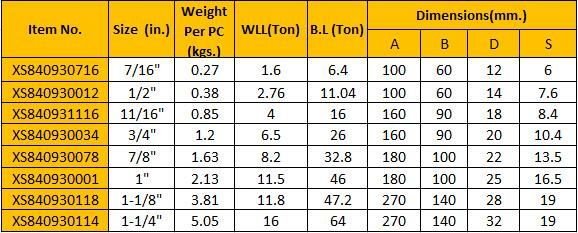

| Size(in) | Weight | wll | B.L | Dimensions(mm) | |||
| Per pc | |||||||
| （kgs） | (Ton ) | (Ton ) | A | B | D | S | |
| 7/16‘ | 0.27 | 1.6 | 6.4 | 100 | 60 | 12 | 6 |
| 1/2' | 0.38 | 2.76 | 11.04 | 100 | 60 | 14 | 7.6 |
| 11/16’ | 0.85 | 4 | 16 | 160 | 90 | 18 | 8.4 |
| 3/4' | 1.2 | 6.5 | 26 | 160 | 90 | 20 | 10.4 |
| 7/8' | 1.63 | 8.2 | 32.8 | 180 | 100 | 22 | 13.5 |
| 1“ | 2.13 | 11.5 | 46 | 180 | 100 | 25 | 16.5 |
| 1-1/8‘ | 3.81 | 11.8 | 47.2 | 270 | 140 | 28 | 19 |
| 1-1/4' | 5.05 | 16 | 64 | 270 | 140 | 32 | 19 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
This G80 Alloy Sorting Hook is drop forged from high-strength alloy steel and heat treated for maximum durability. Designed for use with chain slings, it allows quick and safe chain sorting during lifting operations. It meets G80 grade standards for overhead lifting and rigging applications, featuring high tensile strength and excellent wear resistance. Ideal for construction, mining, and industrial rigging jobs. OEM customization is available.
Grade 80 US Type A344 Welded Master Link with engineered flat, made of quenched & tempered high tensile alloy steel. Full welded structure, fully comply with US A344 rigging standard. Each unit 100% proof tested & magnetic particle crack inspected. Widely matched for multi-leg G80 chain slings, crane lifting, construction & marine rigging. Multiple inch sizes, powder coated red/yellow/blue finish, CE & ISO certified, OEM marking available
