G80 Welded Master Link Superseded DIN5688
3f64b95af6774b38.jpg_20201216150519_800x800
G80 Welded Master Link Superseded DIN5688
3f64b95af6774b38.jpg_20201216150519_800x800
[ G80 Chain Components ]

G80 Welded Master Link Superseded DIN5688

Product Attributes
  • Material: Alloy Steel

  • Standard: EN Standard

  • Certificates: ISO/CE

  • Size: All / Different Size Available

  • Sample: Free

  • Package: Carton/Gunny bag/Pallet / As customer’s requirements.

(0) Reviews

Share To

Product Details

    ● G80 Welded Master Link Superseded DIN5688

    ● Quenched and Tempered.

    ● Powder coated.

    ● Safety Factor: 4:1.

    ● Forged alloy steel.

    ● Standard: EN1677-4(Supersedes DIN5688-3)

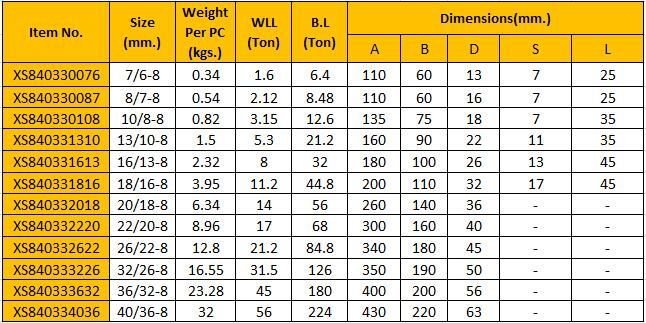

TABLE PARAMETER

sizeWeightWLLB.L     Dimensions(mm)
Per Pc
(mm)(kgs.)(TON)(TON)ABDSL
7/6-8"0.341.66.41106013725
8/7-8"0.542.128.481106016725
10/8-8"0.823.1512.61357518735
13/10-8"1.55.321.216090221135
16/13-8"2.32832180100261345
18/16-8"3.9511.244.8200110321745
20/18-8"6.34145626014036--
22/20-8"8.96176830016040--
26/22-8"12.821.284.834018045--
32/26-8"16.5531.512635019050--
36/32-8"23.284518040020056--
40/36-8"325622443022063--

It can be matched with Grade 80 lifting chains, hammerlock connecting links, shackles and lifting hooks to assemble 1-leg & 2-leg lifting slings.
