The G80 European Type Forged Regular Swivel provides a rotating connection between compatible components. Compare both connection interfaces and the load data below before selecting the size.
The G80 European Type Forged Regular Swivel provides a rotating connection between compatible components. Compare both connection interfaces and the load data below before selecting the size.
![]()
![]()

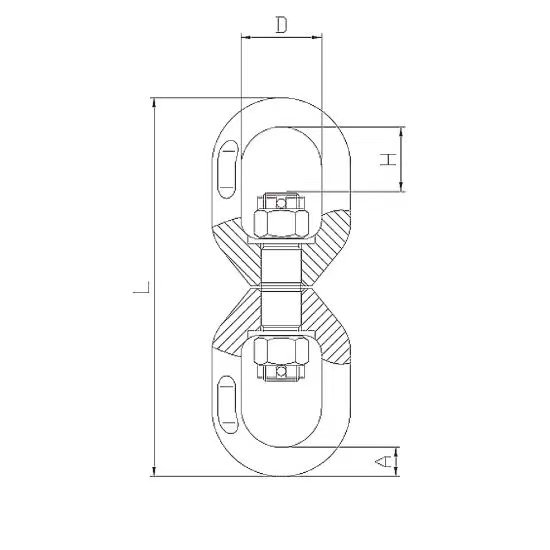

| size | Weight | WLL | B.L | Dmensions(mm) | |||
| Per Pc | |||||||
| (mm) | (kgs.) | (TON) | (TON) | A±1 | D±1 | H±1.5 | L±2 |
| 7/8" | 0.67 | 2 | 8 | 13 | 36 | 29.5 | 169 |
| 10 | 1.6 | 3.15 | 12.6 | 15.5 | 42 | 36.5 | 200 |
| 13 | 1.75 | 5.3 | 21.2 | 17 | 50 | 41.5 | 226 |
| 19 | 4.25 | 12.5 | 50 | 26 | 72 | 63 | 292 |
Compatible chain, rope and rigging connections.
To request G80 European Type Forged Regular Swivel, please specify end connection dimensions, rotation requirements, material and rated capacity. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
